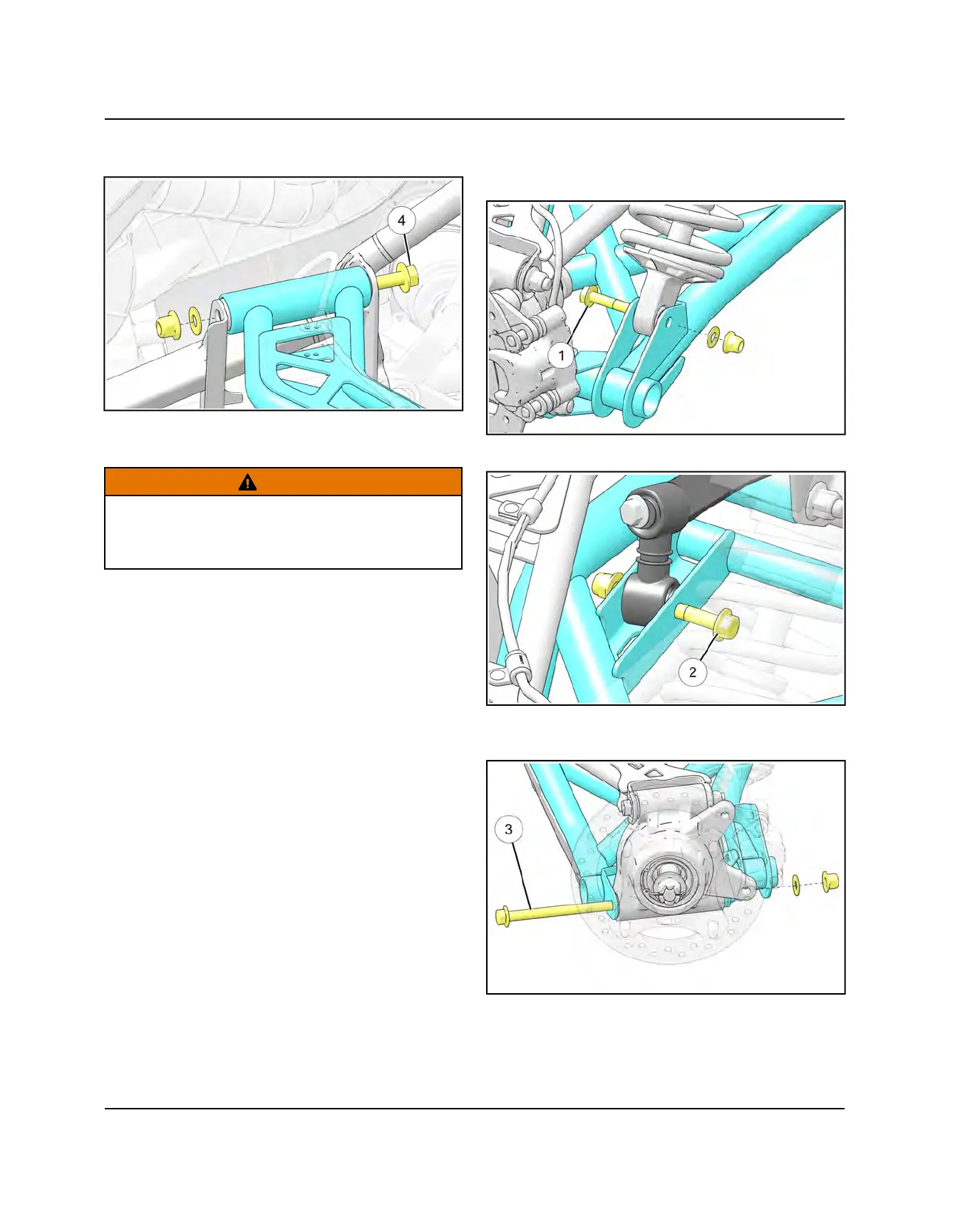

4. Remove fastener
r
connecting the upper control arm
to the chassis.
5. Examine control arm bushings and pivot tube.
Replace if worn. Discard hardware.
WARNING
The locking agent on the existing bolts was destroyed
during removal. DO NOT reuse old hardware. Serious
injury or death could result if fasteners come loose
during operation.
6. If not replacing the control arm, thoroughly clean the
control arm and pivot tube.
LOWER CONTROL ARM
1. Remove lower shock fastener
q
from lower control
arm.
2. Remove the stabilizer bar link fastener
w
.
3. Remove the fastener
e
connecting the lower control
arm to the bearing carrier.
