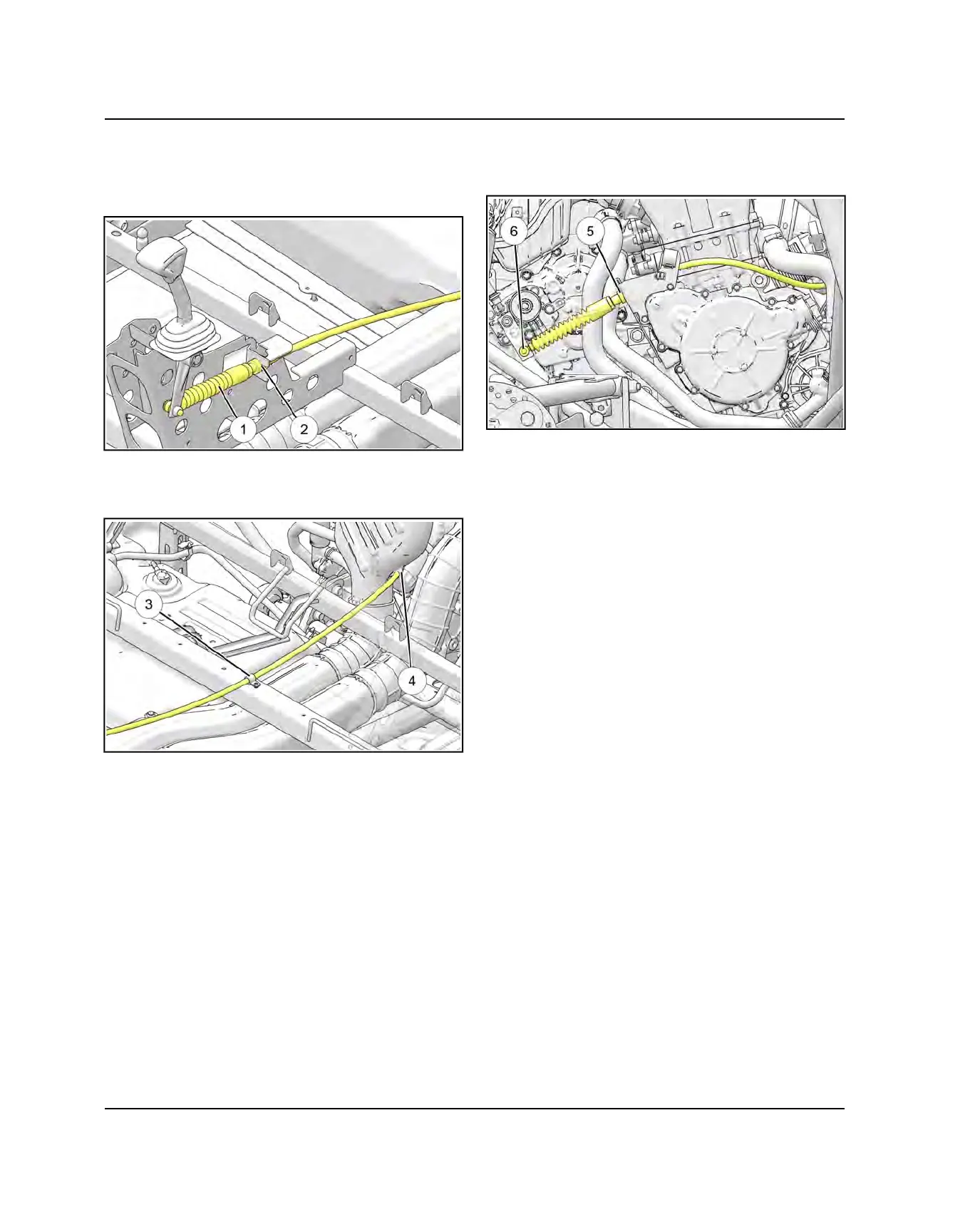

ROUTING DETAILS
1. With the shift cable
q
secured to the shift lever, route
the shift cable rearward and secure the jam nut
w
in
the shifter mount bracket.
2. Continue to route the shift cable rearward and secure
the cable with a hose clamp
e
to the front seat base
bracket. in the notch of the airbox intake duct
r
.
3. Route the shift cable rearward and secure in the
notch of the airbox intake duct
r
.
4. Route the shift cable under the coolant hoses and
along the right side of the engine. Secure the jam nut
t
in the shift cable mount bracket.
5. Finish routing by securing the shift cable end
y
to the
transmission bellcrank.
