9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
7.41

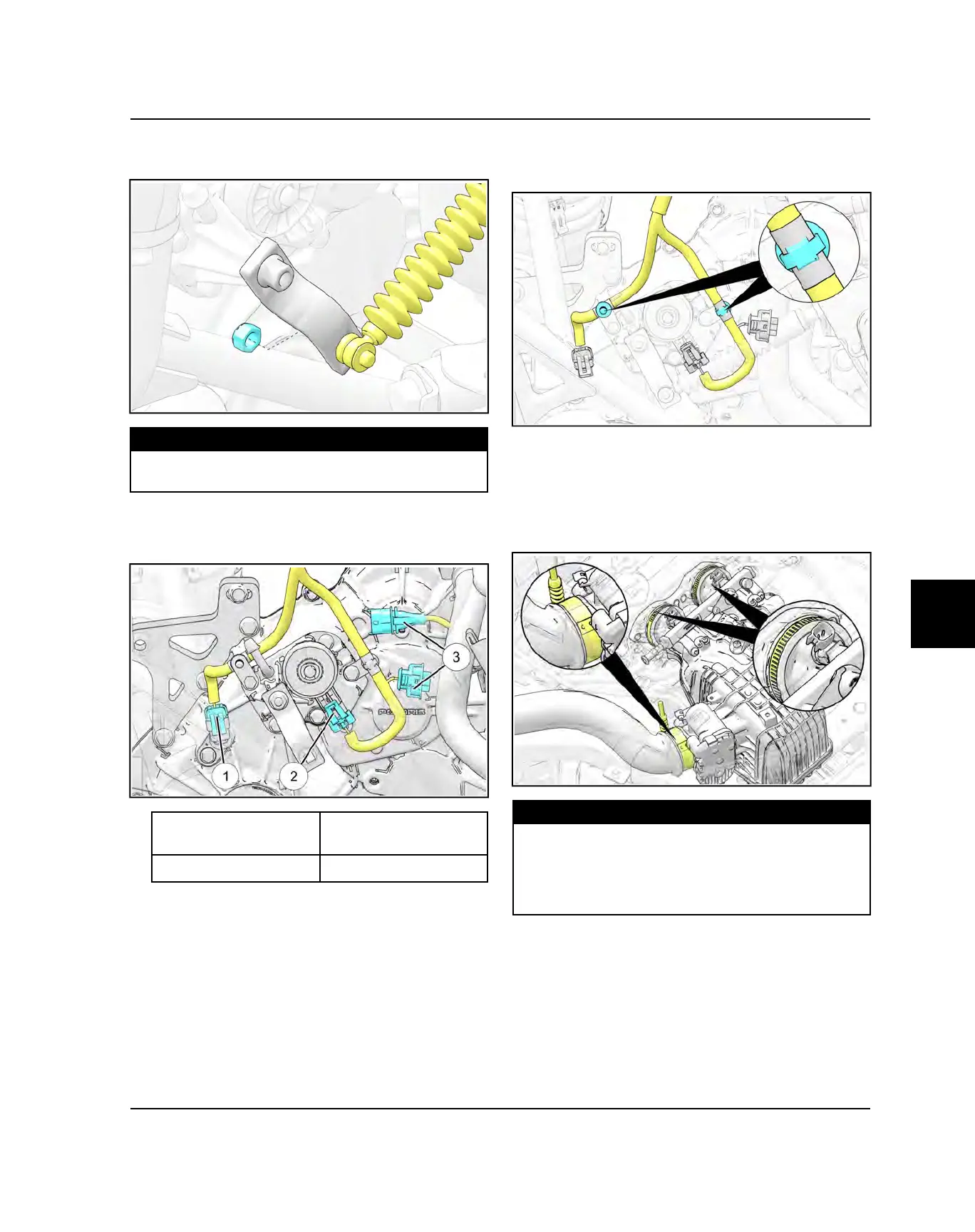

13.Connect the transmission shift cable to the bellcrank.
Install the shift cable nut and torque to specification.
TORQUE
Shift Cable Nut:
13 lb-ft (18 Nm)
14.Connect the vehicle speed sensor connector, gear
position switch connector, and crankshaft position
sensor connector.
q
Vehicle Speed
Sensor
e
Crankshaft Position
Sensor
w
Gear Position Switch
15.Ensure harness is properly routed and install the
plastic tie straps retaining the harness to the
transmission.
16.Install and properly route the vent hose.
17.Carefully install the intake plenum and electronic
throttle control as an assembly. Tighten the hose
clamps that retain the intake plenum to the engine.
Install the engine intake duct onto the ETC and
tighten the hose clamp that retains the duct.
TORQUE
Intake Duct Clamps:
24 lb-in (3 Nm)
Engine Intake Hose Clamp:
49 lb-in (5.5 Nm)
TRANSMISSION
To Next Page
