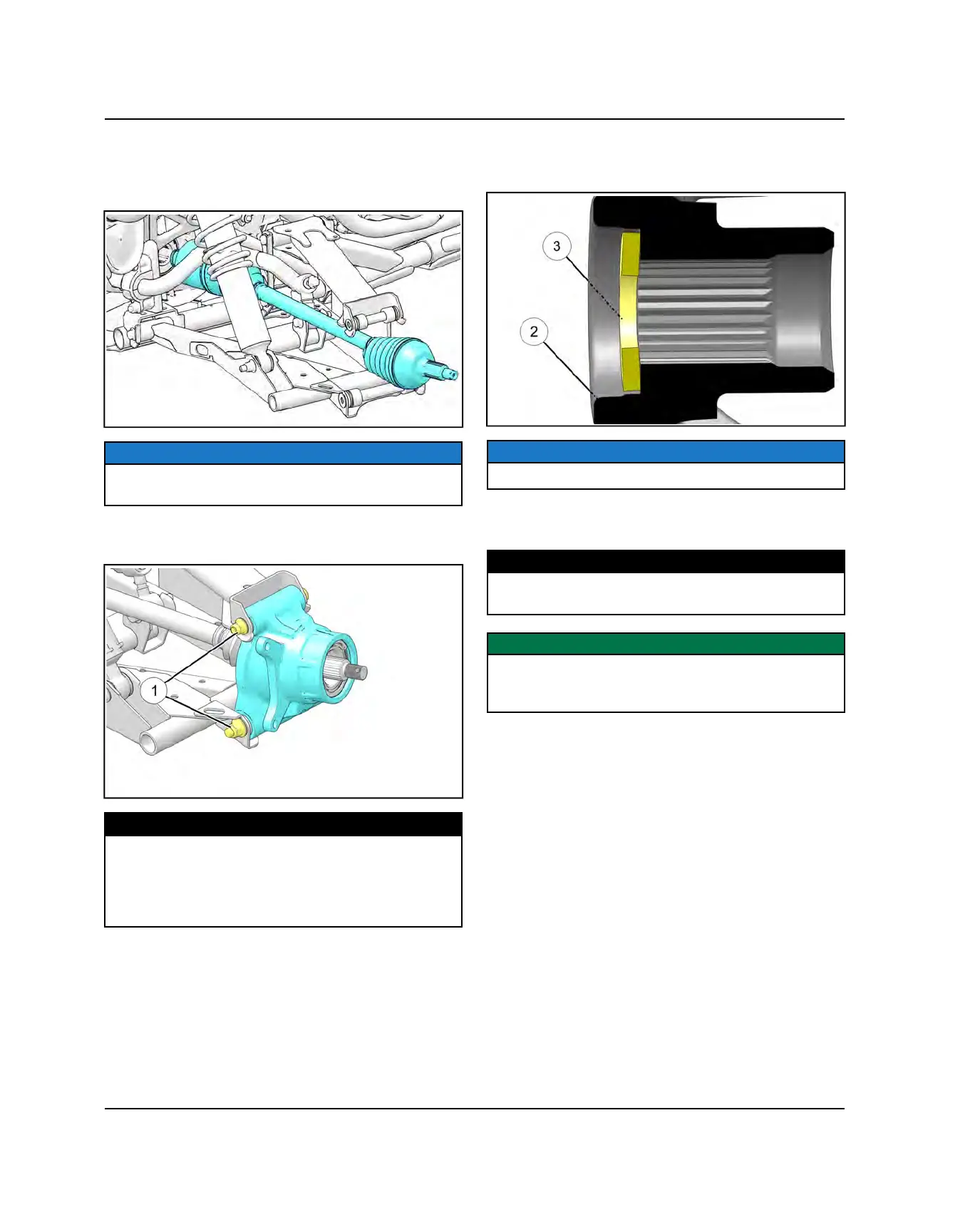

2. Align splines of drive shaft with transmission splines
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
NOTICE
Grab the drive shaft joint near the transmission and
give a brief tug to ensure the snap ring is fully engaged.
3. Install rear bearing carrier and mounting fasteners
q
.
Torque fasteners to specification.
TORQUE
Rear Upper Bearing Carrier Mounting Fastener:
42 lb-ft (57 Nm)
Rear Lower Bearing Carrier Mounting Fastener:
40 lb-ft (54 Nm) + 180°
4. Apply Anti-Seize to drive shaft axle splines.
5. Install rear wheel hub assembly
w
. Install the cone
washer domed side out
e
and hand tighten the
castle nut.
NOTICE
Some models may feature two cone washers.
6. Install rear brake caliper assembly and NEW
mounting bolts. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
46 lb-ft (62 Nm)
IMPORTANT
New bolts have a pre-applied locking agent which is
destroyed upon removal. Always use new brake caliper
mounting bolts upon assembly.
FINAL DRIVE
