9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

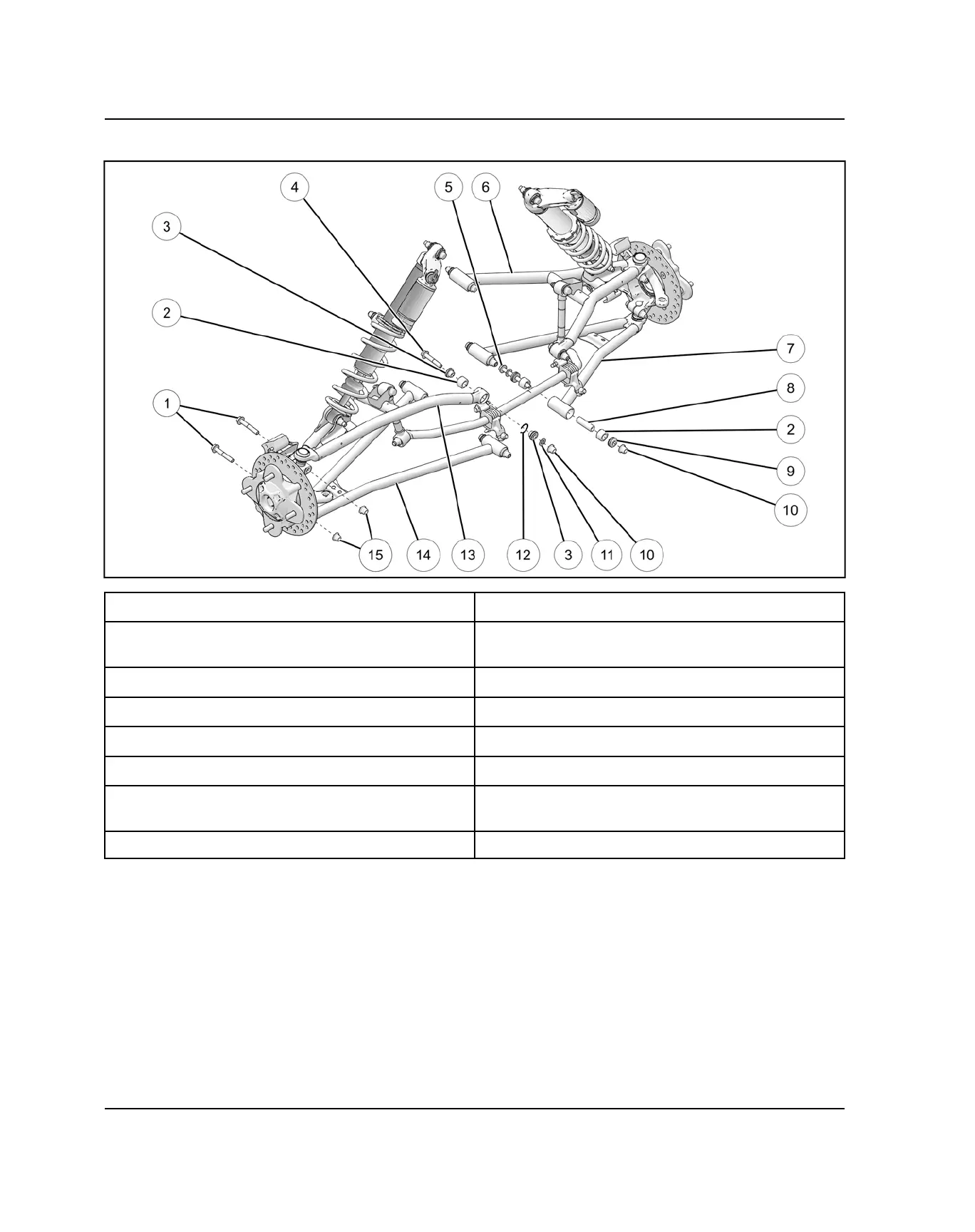

REAR VIEW
q
Ball Joint Pinch Bolts
o
Pivot Cap Asm.
w
Bushing
a
Nut
42 lb-ft (57 Nm)
e
Pivot Cap Asm.
s
Washer
r
Front Upper Control Arm Fastener
d
Spiral Ring
t
Front Lower Control Arm Fastener
f
LH Front Upper Control Arm
y
RH Front Upper Control Arm
g
LH Front Lower Control Arm
u
RH Front Lower Control Arm
h
Nut
42 lb-ft (57 Nm)
i
Pivot Shaft Short
