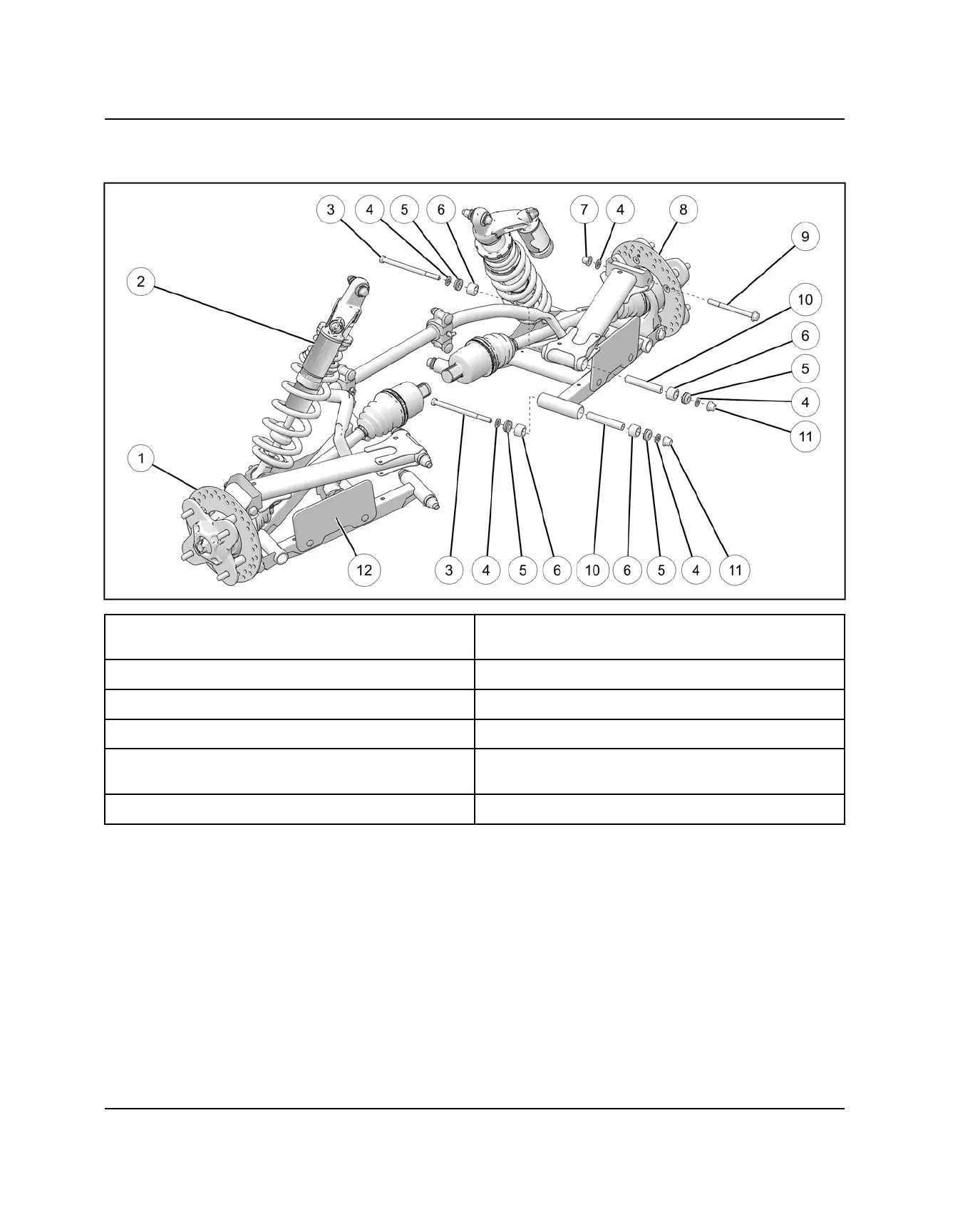

REAR SUSPENSION ASSEMBLY VIEW
FRONT VIEW
q
RH Bearing Carrier Asm.
u
Nut
42 lb-ft (57 Nm)
w
Rear Shock i
LH Bearing Carrier Asm.
e
Rear Inner Control Arm Fastener o
Rear Upper Bearing Carrier Mounting Fastener
r
Washer
a
Pivot Shaft Long
t
Pivot Cap Asm.
s
Nut
40 lb-ft (54 Nm) + 90°
y
Bushing
d
Rear CV Shield
