Polaris General 2020

9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.15

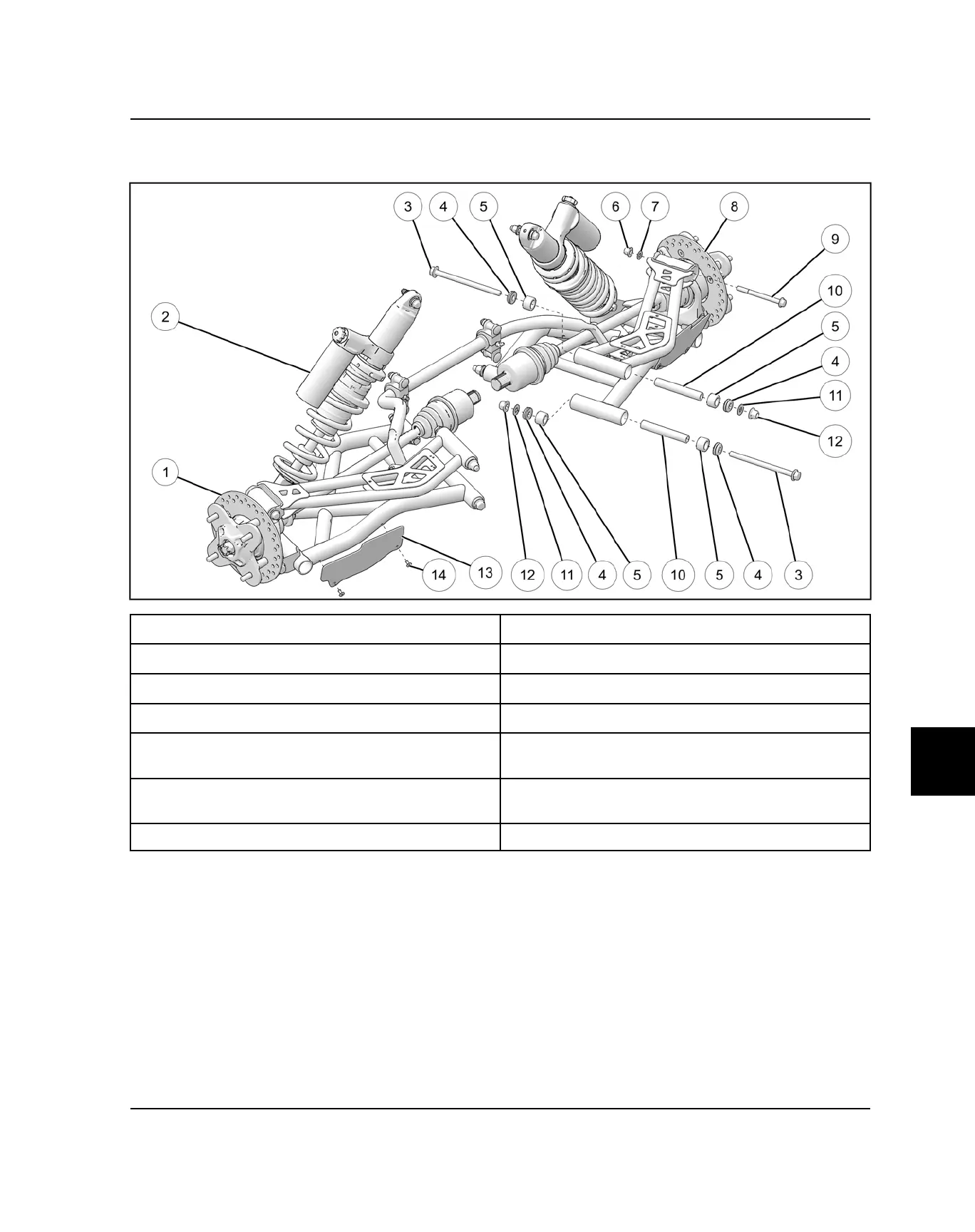

REAR SUSPENSION ASSEMBLY VIEW
FRONT VIEW
q
RH Bearing Carrier Asm.
i
LH Bearing Carrier Asm.
w
Rear Shock
o
Rear Bearing Carrier Fastener
e
Rear Inner Control Arm Fastener
a
Pivot Shaft Long
r
Pivot Cap Asm.
s
Washer
t
Bushing
d
Nut
81 lb-ft (110 Nm)
y
Nut
81 lb-ft (110 Nm)
f
Shock Rod Shield
u
Washer
g
Rivet
STEERING / SUSPENSION
