10.10
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

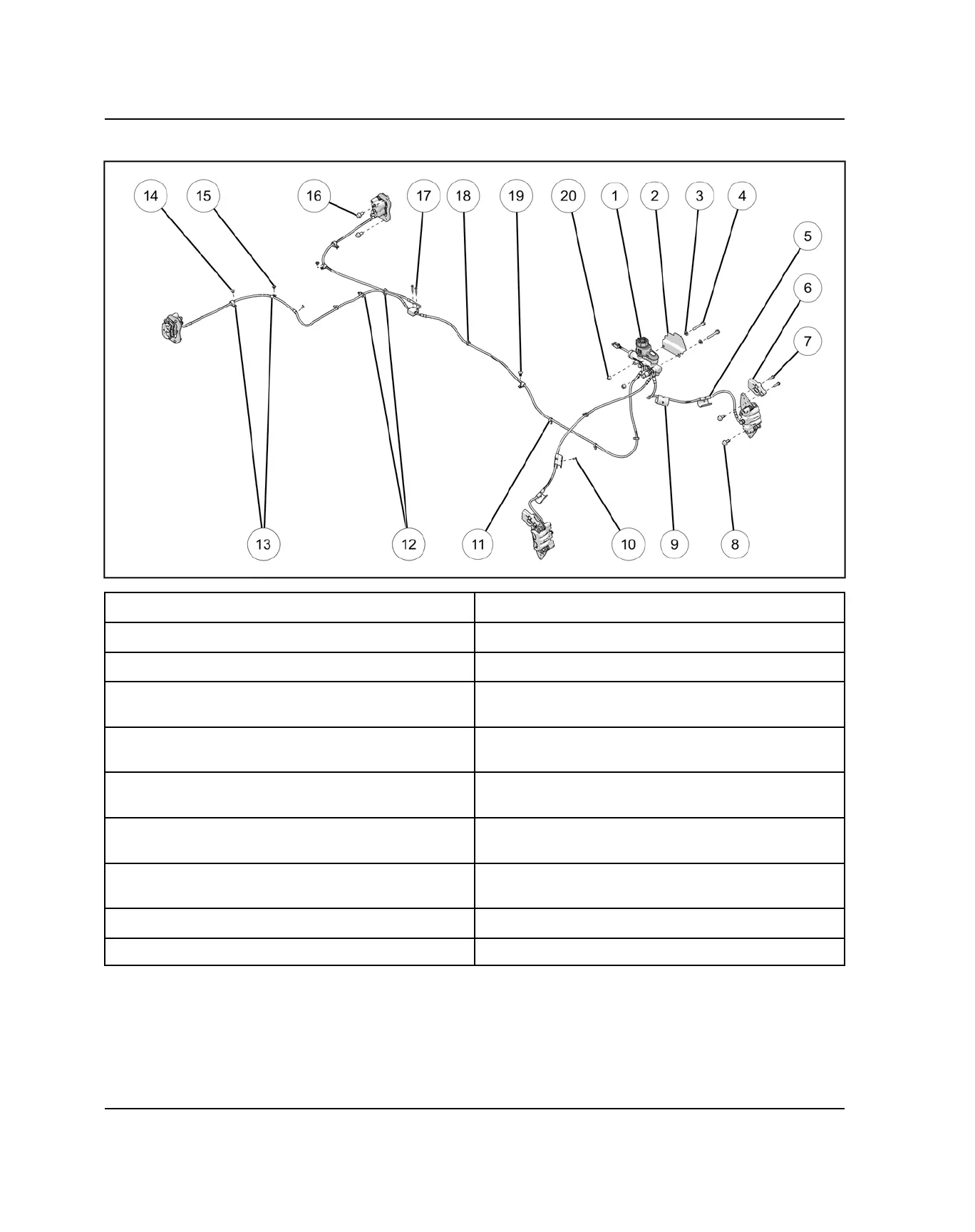

BRAKE SYSTEM RETENTION
q
Master Cylinder
s
Clip
w
Master Cylinder Shield
d
Routing Clip
e
Washer
f
Wire/Tube Clamp
r
Master Cylinder Fasteners
22 lb-ft (30 Nm)
g
Rivet
t
Outer Brake Line Clip
h
Brake Line Retention Fastener
35 in-lbs (4 Nm)
y
Front Scraper
j
Rear Caliper Fasteners
46 lb-ft (62 Nm)
u
Scraper Fasteners
7 lb-ft (9 Nm)
k
Junction Block Fasteners
35 in-lbs (4 Nm)
i
Front Caliper Fasteners
30 lb-ft (41 Nm)
l
Clip
o
Inner Brake Line Clip
1(
Plastic Dart Clip
a
Rivet
2)
Nut
