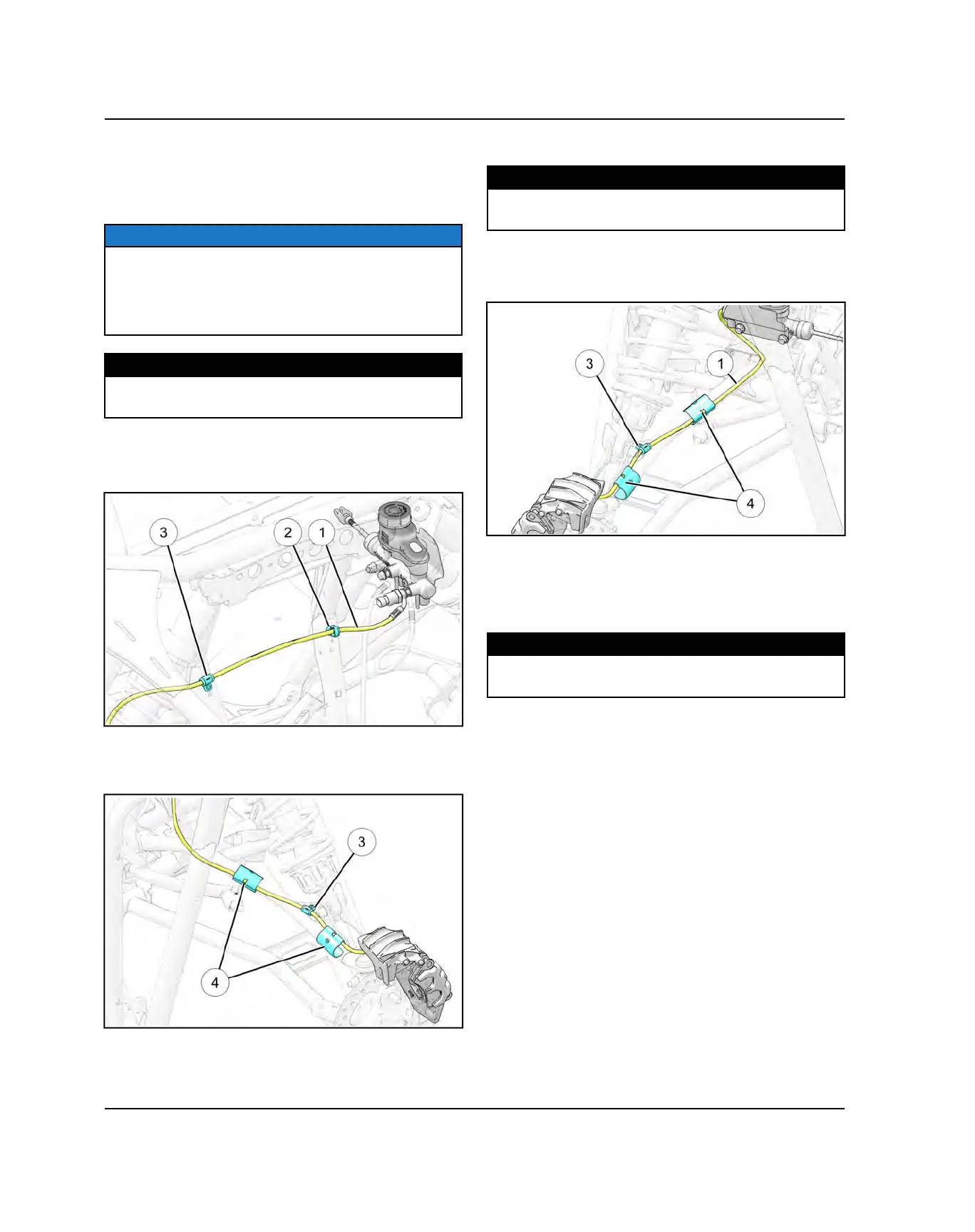

FRONT BRAKE LINES FROM MASTER CYL-
INDER TO CALIPERS ROUTING
1. If not previously done, install brake line onto master
cylinder.
NOTICE
The left and right front brake lines are stacked on top of
each other and attach to the front port of the Master
Cylinder. The left front brake line is positioned next to
the Master cylinder and the right front brake line is
positioned next to the brake pressure switch.
TORQUE
Brake Switch:
15 lb-ft (20 Nm)
2. Right Brake Line - From the master cylinder, route
the brake line
q
across the chassis and secure in the
routing clip
w
and routing clamp
e
.
3. Continue routing the brake line down the upper
control arm and secure with the routing clamp
e
and
two brake line retainers
r
.
4. Install brake line onto front caliper.
TORQUE
Banjo Bolt:
15 lb-ft (20 Nm)
5. Left Brake Line - From the master cylinder, route the
brake line
q
down the upper control arm and secure
in the first brake line retainer
r
.
6. Continue routing the brake line down the upper
control arm and secure with the routing clamp
e
and
second brake line retainer
r
.
7. Install brake line onto front caliper.
TORQUE
Banjo Bolt:
15 lb-ft (20 Nm)
