9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.35

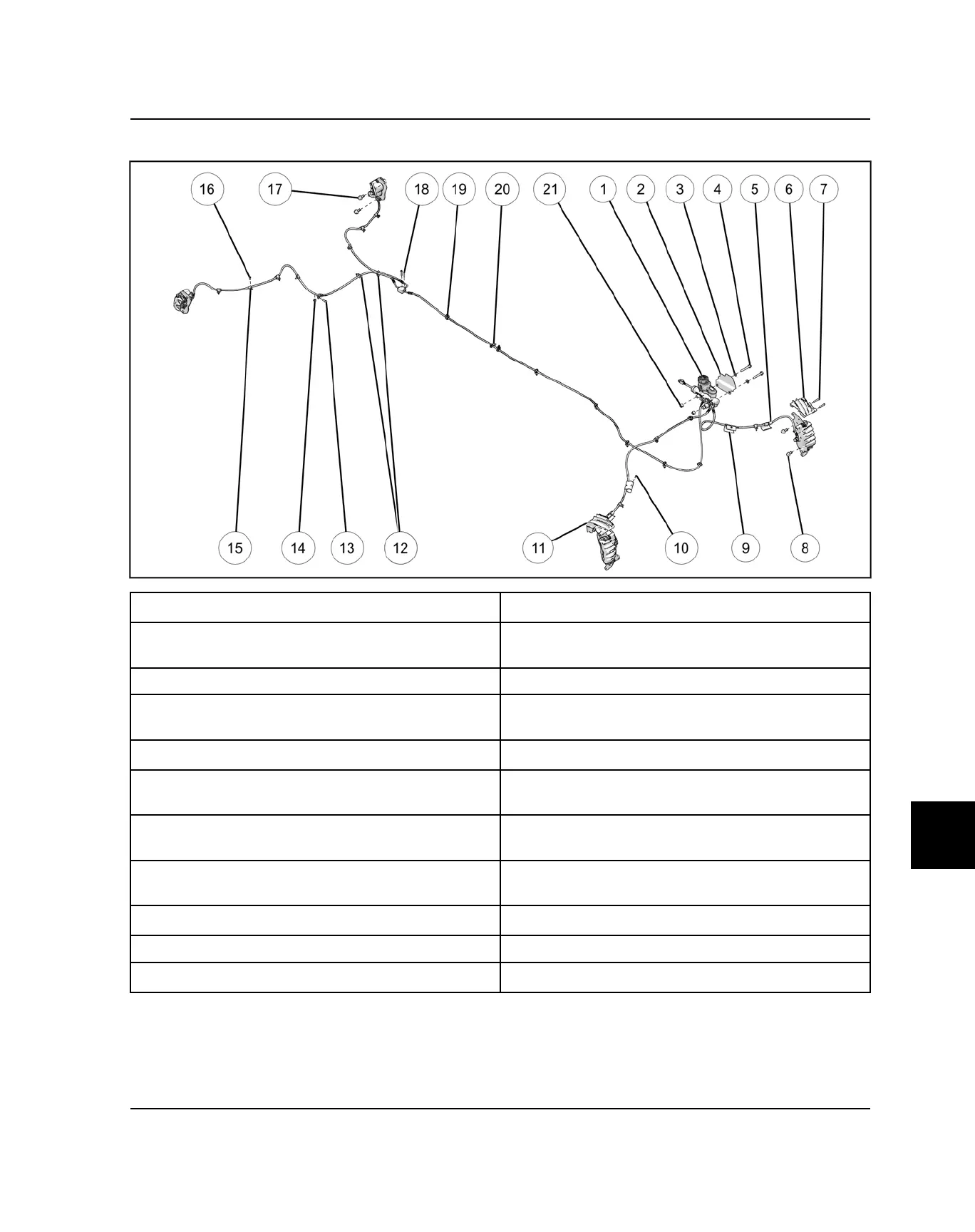

BRAKE SYSTEM RETENTION
q
Master Cylinder
d
Routing Clip
w
Master Cylinder Shield
f
Brake Line Retention Fastener
8 lb-ft (11 Nm)
e
Washer
g
Nut
r
Master Cylinder Fasteners
22 lb-ft (30 Nm)
h
Wire/Tube Clamp
t
Outer Brake Line Clip
j
Rivet
y
LH Front Scraper
k
Rear Caliper Fasteners
46 lb-ft (62 Nm)
u
Scraper Fasteners
7 lb-ft (9 Nm)
l
Junction Block Fasteners
35 in-lbs (4 Nm)
i
Front Caliper Fasteners
30 lb-ft (41 Nm)
1(
Routing Clip
o
Inner Brake Line Clip
2)
Edge Clip
a
Rivet
2!
Nut
s
RH Front Scraper
BRAKE SYSTEM
