9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.39

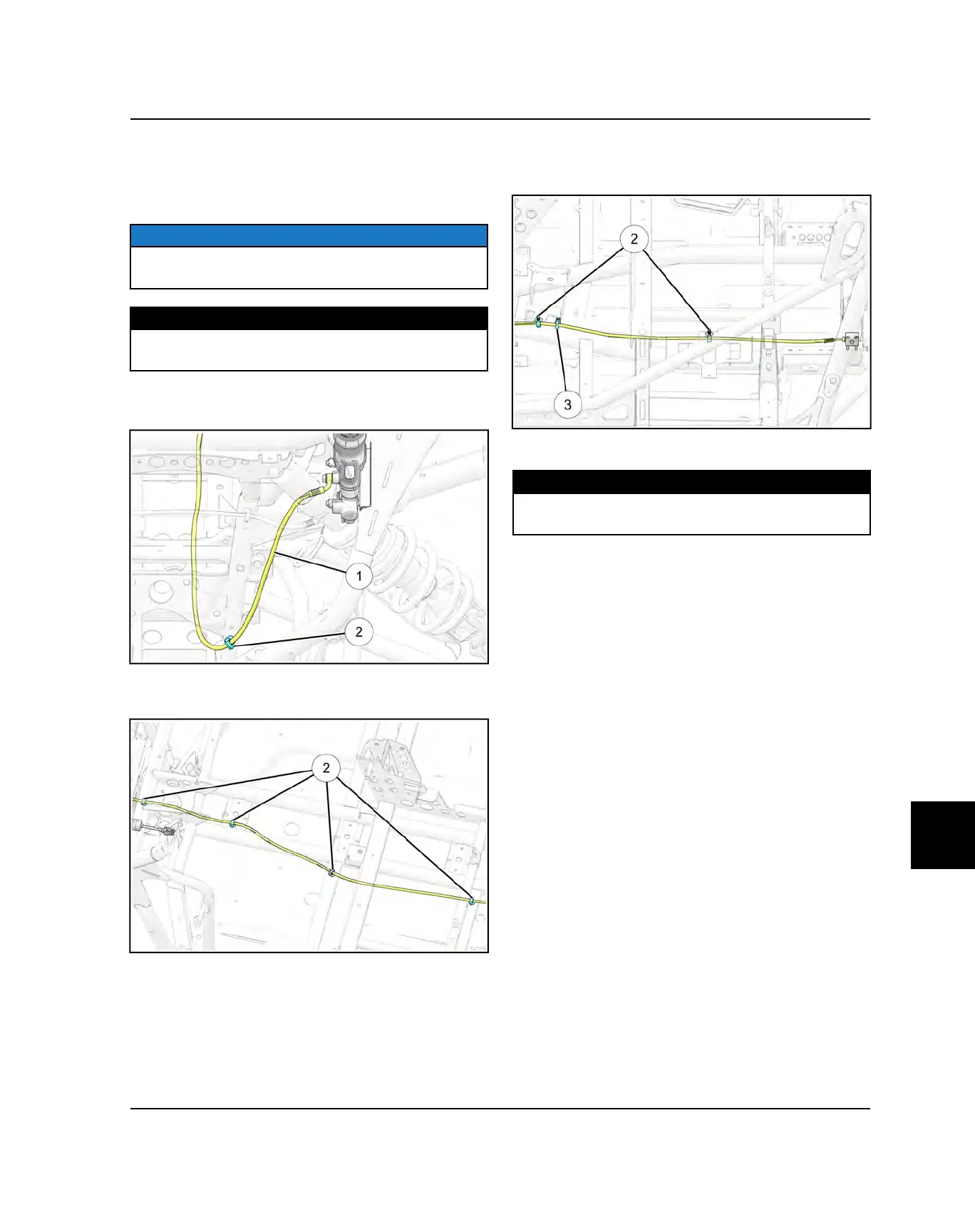

REAR BRAKE LINE FROM MASTER CYLIN-
DER TO JUNCTION BLOCK ROUTING
1. If not previously done, install brake line onto master
cylinder.
NOTICE
The center brake line is attached to the rear port of the
Master Cylinder.
TORQUE
Banjo Bolt:
15 lb-ft (20 Nm)
2. From the master cylinder, route the brake line
q
down the chassis and secure in the routing clip
w
.
3. Route the brake line rearward along the chassis and
secure with the routing clips
w
.
4. Continue routing the brake line rearward along the
chassis and secure with the routing clips
w
and edge
clip
e
.
5. Install brake line onto the junction block.
TORQUE
Brake Line to Junction Block:
13 lb-ft (18 Nm)
BRAKE SYSTEM
