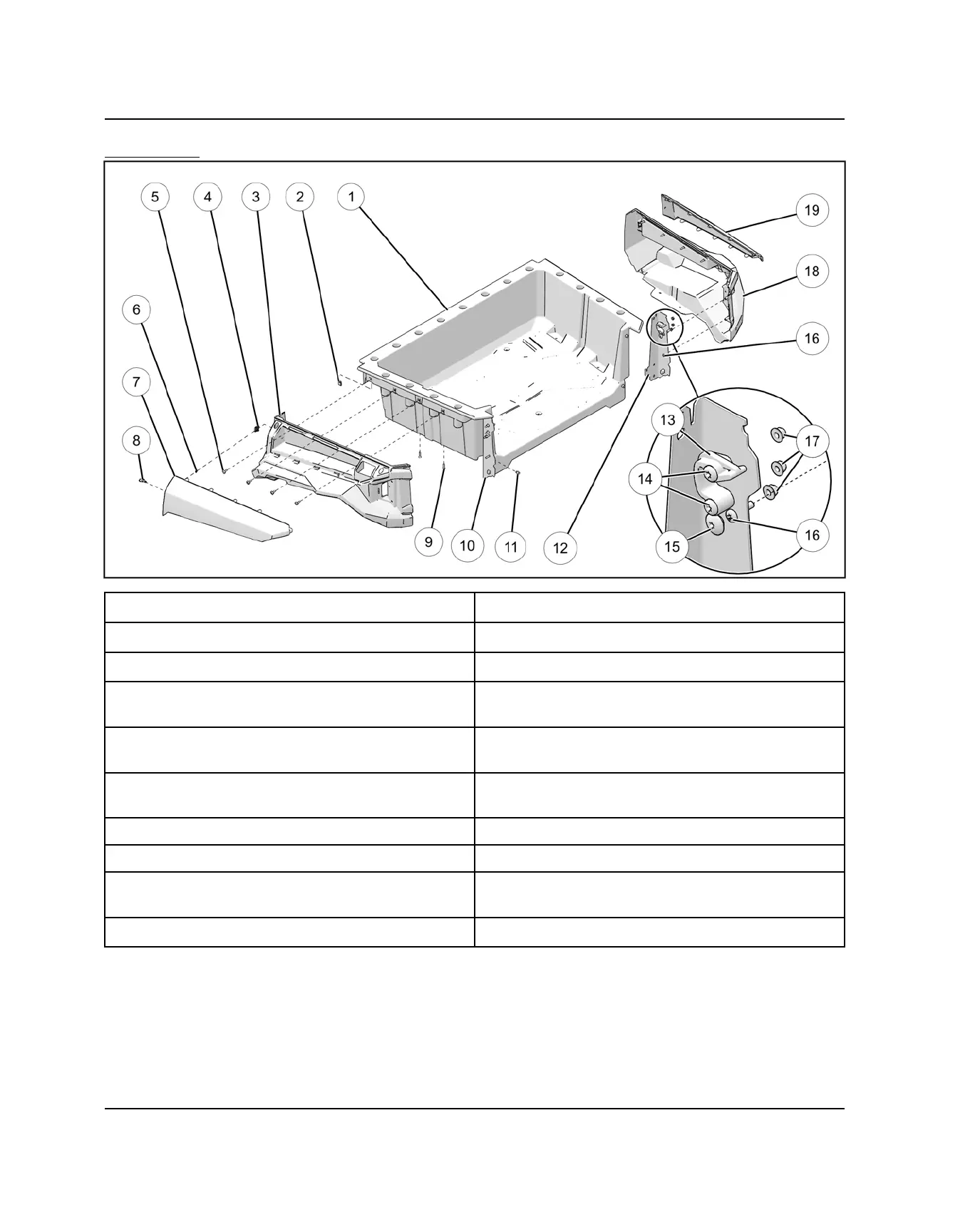

CARGO BOX
q
Cargo Box
s
Rubber Bumper
w
U-Nut d
RH Tailgate Support
e
LH Fender Flair f
Tailgate Latch Hook
r
1/4 Turn Clip
g
Tailgate Latch Hook Fasteners
7 ft-lbs (10 Nm)
t
Side Fender Flair Fasteners
3.5 lb-ft (4.7 Nm)
h
Tailgate Cable Fasteners
7 ft-lbs (10 Nm)
y
1/4 Turn Retainer
j
Tailgate Support to Fender Flair Fasteners
22 in-lbs (2.5 Nm)
u
LH Box Panel
k
Nut
i
1/4 Turn Stud
l
RH Fender Flair
o
Bottom Fender Flair Fasteners
3.5 lb-ft (4.7 Nm)
1(
RH Box Panel
a
LH Tailgate Support
