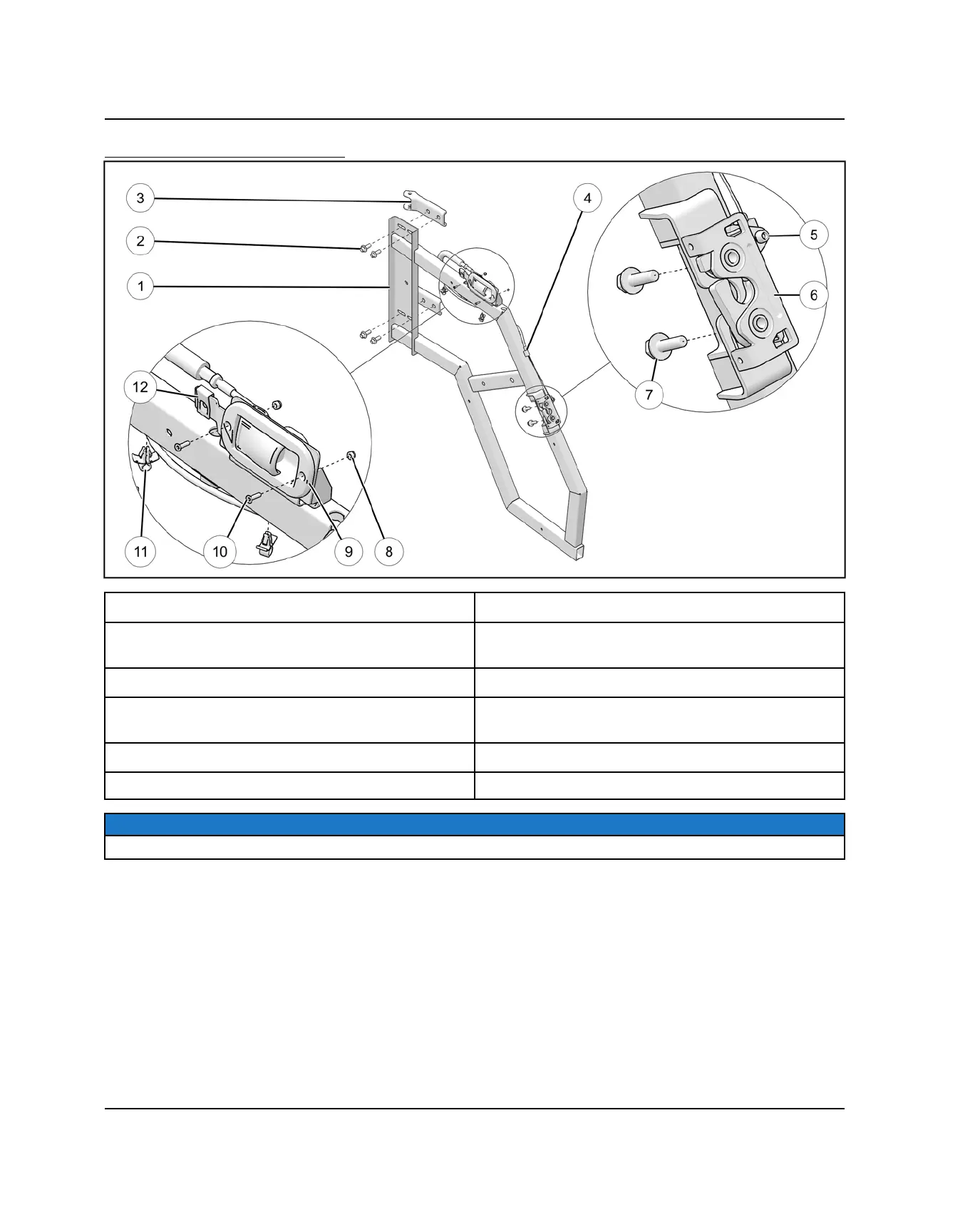

REAR DOOR FRAME ASSEMBLY
q
Door Frame
u
Door Latch Fasteners7 ft-lbs (10 Nm)
w
Door Hinge Fasteners
17 lb-ft (23 Nm)
i
Nut
e
Rear Door Hinge
o
Rear Door Handle
r
Adjustable Rear Door Cable
a
Door Handle Fasteners
16 in-lbs (2 Nm)
t
Door Latch Clip
s
Cable Clip
y
Door Latch
d
U-Nut
NOTICE
LH door frame shown. RH door frame similar.
