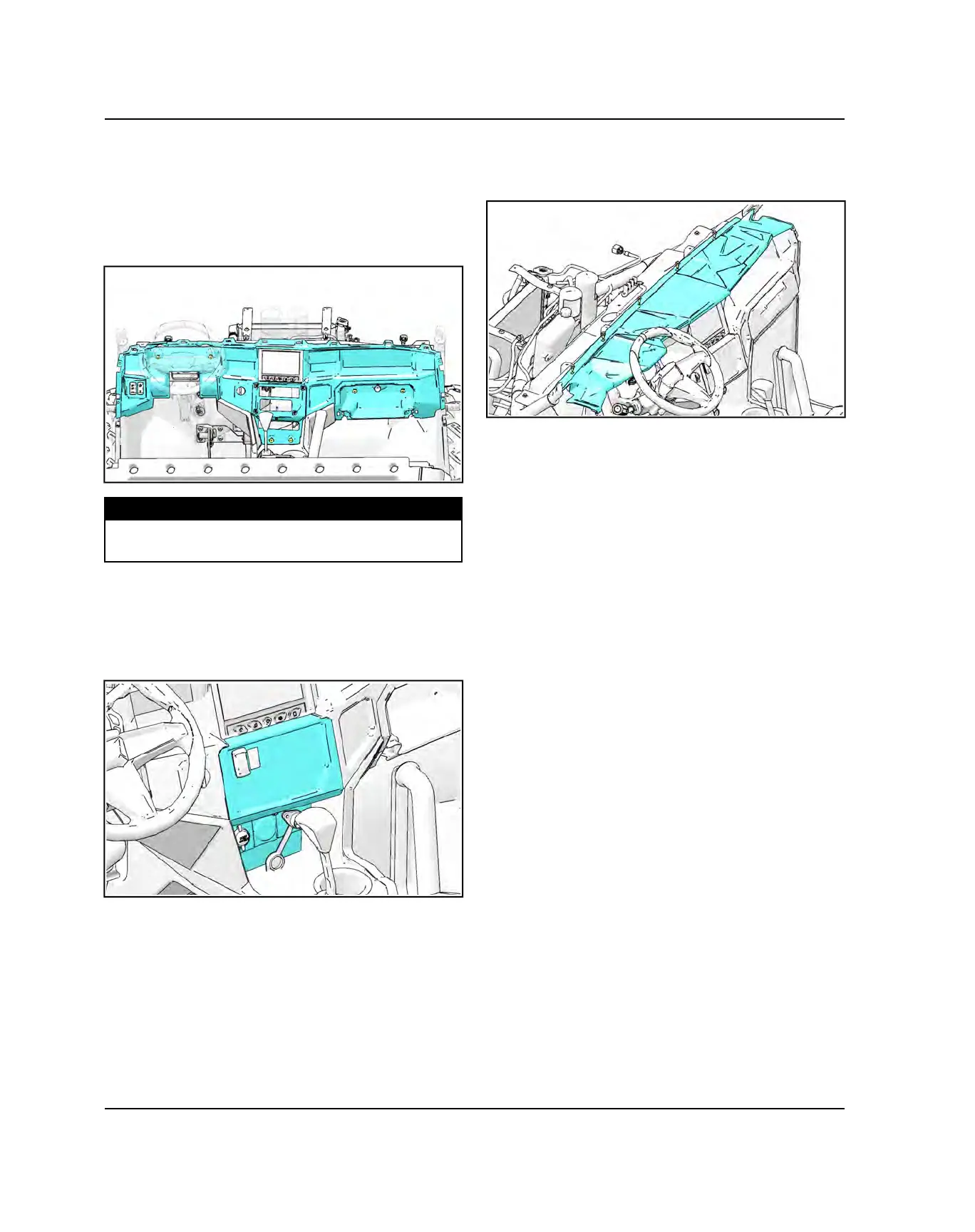

DASH INSTALLATION
1. Connect the interior controls to the wiring harness
and install the main dash into the vehicle. Install the
fasteners in the glovebox, behind the controls
console panel, and behind the speedometer display
holding the main dash to the vehicle. Torque
fasteners to specification.
TORQUE
Main Dash Fasteners:
3.5 lb-ft (4.7 Nm)
CONTROLS CONSOLE PANEL
INSTALLATION
1. Install the wiring harness connectors to the controls
console panel components. Install the controls
console panel into the main dash tabs.
UPPER DASH PANEL INSTALLATION
1. Install the fasteners holding the upper dash panel to
the vehicle.
2. Install the hood, front and rear fenders, and rocker
panels. Refer to “Exterior Body Component
Installation” page procedure.
BODY / FRAME
