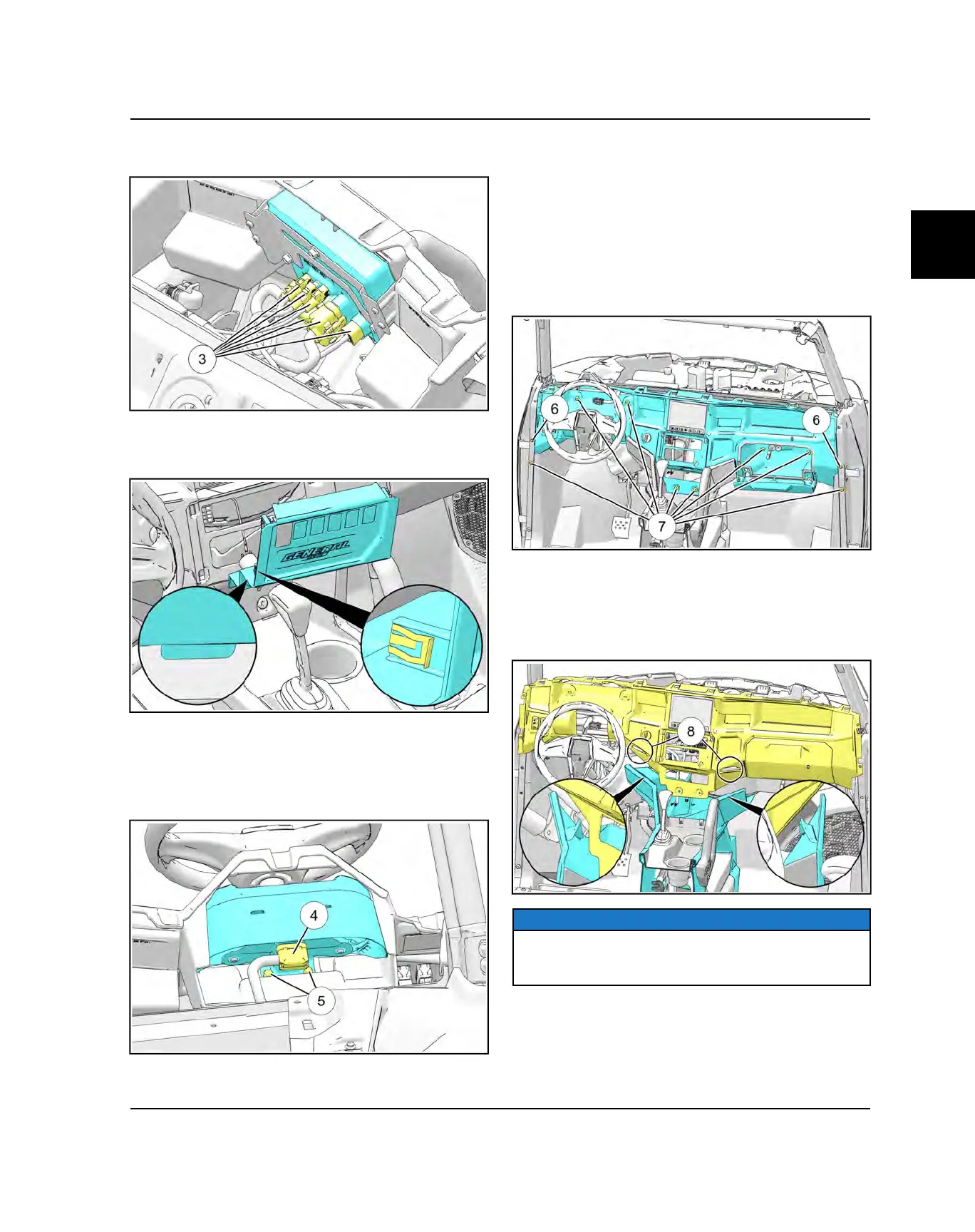

13.49
5. Disconnect Ride Command Display electrical
connectors
e
.
6. Using fingers, carefully pull upper edge of console
rearward to detach four spring clips , then lift two
lower tabs out of slots.
7. Label and disconnect electrical harnesses from
switches, sockets, or other devices mounted to
console.
8. Detach main chassis harness connector
r
from
instrument cluster.
9. Remove two screws
t
, then lift instrument cluster
assembly out of dash and set aside.
10.Remove the following fasteners:
• One push pin rivet
y
and screw
u
from each side
of dash.
• Two screws
u
in glove box
• Two screws
u
forward of gear shift lever
• Two screws
u
forward of instrument cluster
11. Carefully pull the USB harness through the hole in the
glove box.
12.Detach slots
i
in main dash panel from tabs in
center console panels, then lift dash panel away from
support structure. Set panel aside.
NOTICE
Ensure the USB harness was pulled through the glove
box prior to fully removing the main dash panel from the
vehicle.
