13.68
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
5. If closed, open clamshell cover. Loosen slotted nut
and carefully remove antenna by pulling upward and
routing antenna cable through hole in back and top of
clamshell cover. of Remove the slotted nut, slotted
washer, and rubber washer from the cable
q

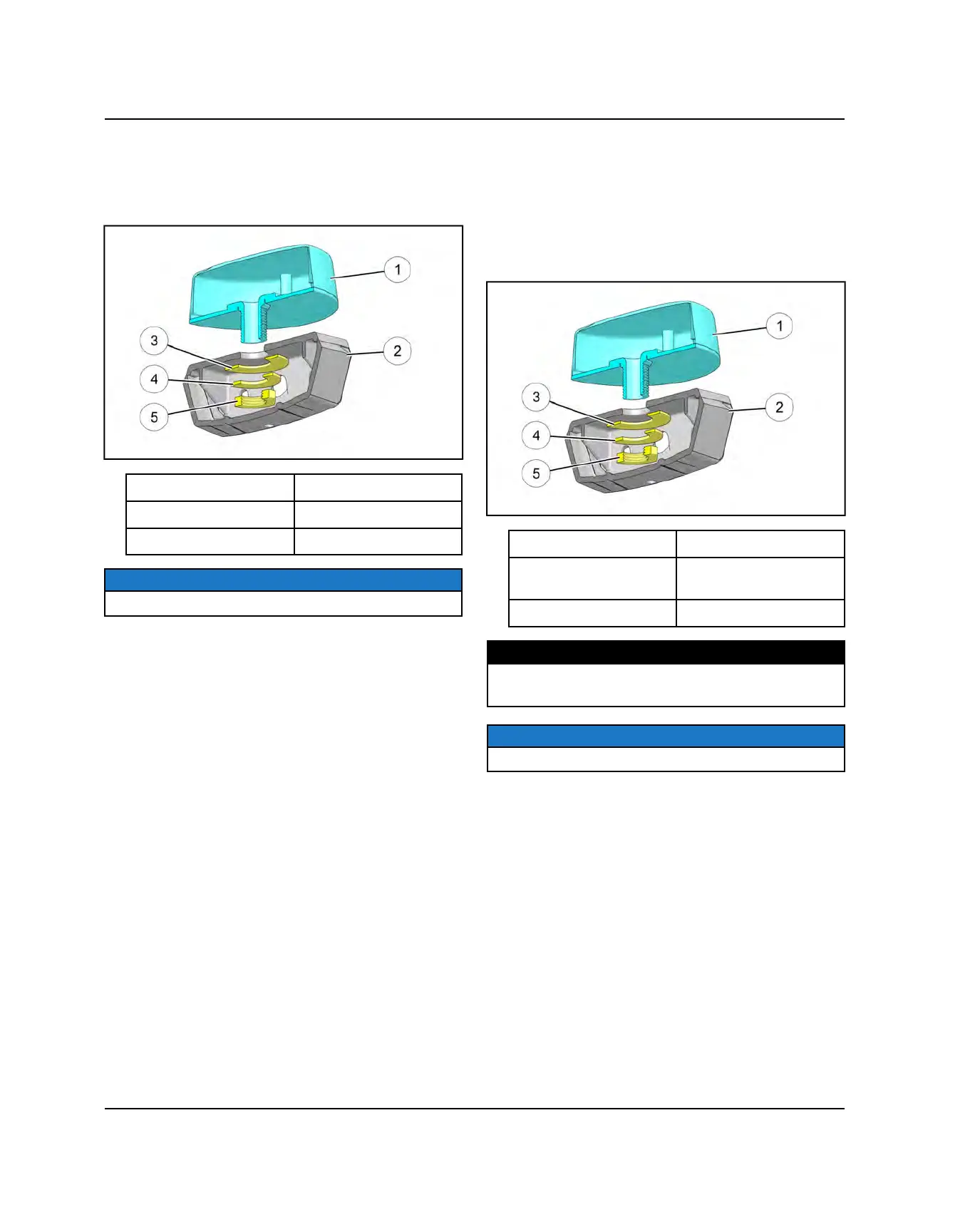

V2V Antenna
r
Slotted Washer
w
V2V Antenna Bracket
t
Slotted Nut
e
Rubber Washer
NOTICE
Antenna cable not shown for clarity.
INSTALLATION
1. If V2V antenna was removed from the V2V antenna
bracket, open clamshell cover. Insert cable and
threaded fitting on antenna through hole in top of
clamshell cover and rubber washer. Route antenna
cable through hole in back of cover, slide slotted
washer and slotted nut over cable, then tighten nut.
Torque to specification.
q
V2V Antenna
r
Slotted Washer
w
Clamshell Cover/
Bracket
t
Slotted Nut
e
Rubber Washer
TORQUE
Antenna Slotted Nut:
60 in-lbs (7 Nm)
NOTICE
Antenna cable not shown for clarity.
FACTORY-INSTALLED OPTIONS
