Browser-based user interface
R&S
®
NRPxxS(N)
50User Manual 1177.5079.02 ─ 15
Range............................................................................................................................50
Γ Correction...................................................................................................................50
└ <State>........................................................................................................... 50
└ Magnitude....................................................................................................... 50
└ Phase..............................................................................................................50
Zero Calibration.............................................................................................................50
Sensor Information........................................................................................................51

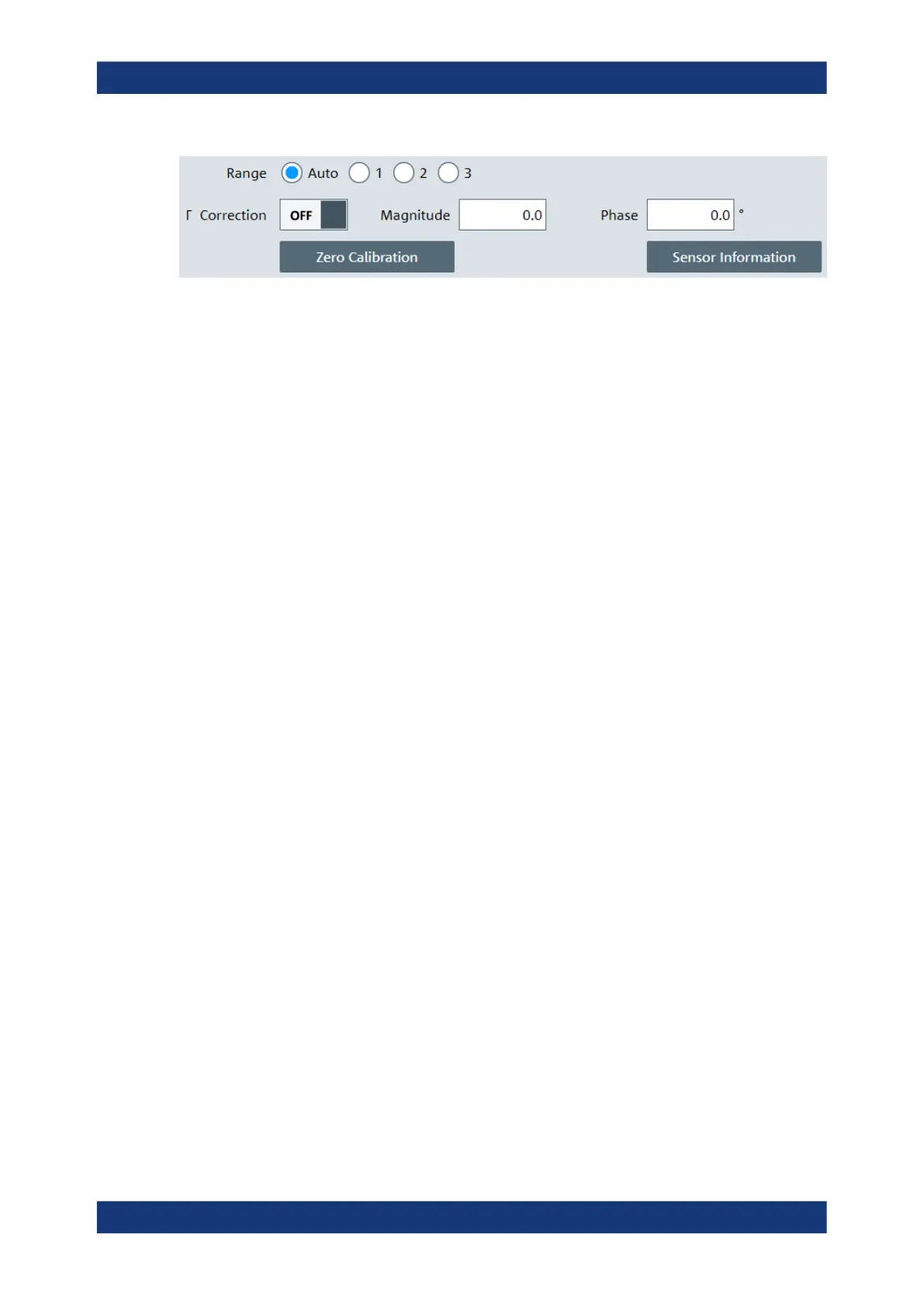

Range
Selects which path of the sensor is used for the measurement.
Remote command:
[SENSe<Sensor>:]RANGe:AUTO on page 71
[SENSe<Sensor>:]RANGe on page 70
Γ Correction
Groups the parameters for the complex reflection coefficient. See also Chapter 9.8.4.4,
"S-gamma corrections", on page 111.
<State> ← Γ Correction
Enables or disables the use of the complex reflection coefficient of the signal source,
Γ
source
.
Remote command:
[SENSe<Sensor>:]SGAMma:CORRection:STATe
Magnitude ← Γ Correction
Sets the magnitude of the complex reflection coefficient of the source , Γ
source
.
A value of 0.0 corresponds to an ideal matched source. A value of 1.0 corresponds to
total reflection.
Remote command:
[SENSe<Sensor>:]SGAMma:MAGNitude
Phase ← Γ Correction
Sets the phase angle of the complex reflection coefficient of the source, Γ
source
.
Remote command:
[SENSe<Sensor>:]SGAMma:PHASe
Zero Calibration
Performs zeroing using the signal at the sensor input. See Chapter 9.10, "Calibrating,
zeroing", on page 124.
Note:
Settings
To Next Page
