R&S ZNA67 User Manual

GUI reference
R&S
®
ZNA
448User Manual 1178.6462.02 ─ 20
Remote command:
CALCulate<Chn>:LIMit:CIRCle:DATA
Global Check
See "Global Check" on page 434.
TTL1 Pass / TTL2 Pass
See "TTL1 Pass / TTL2 Pass" on page 434.

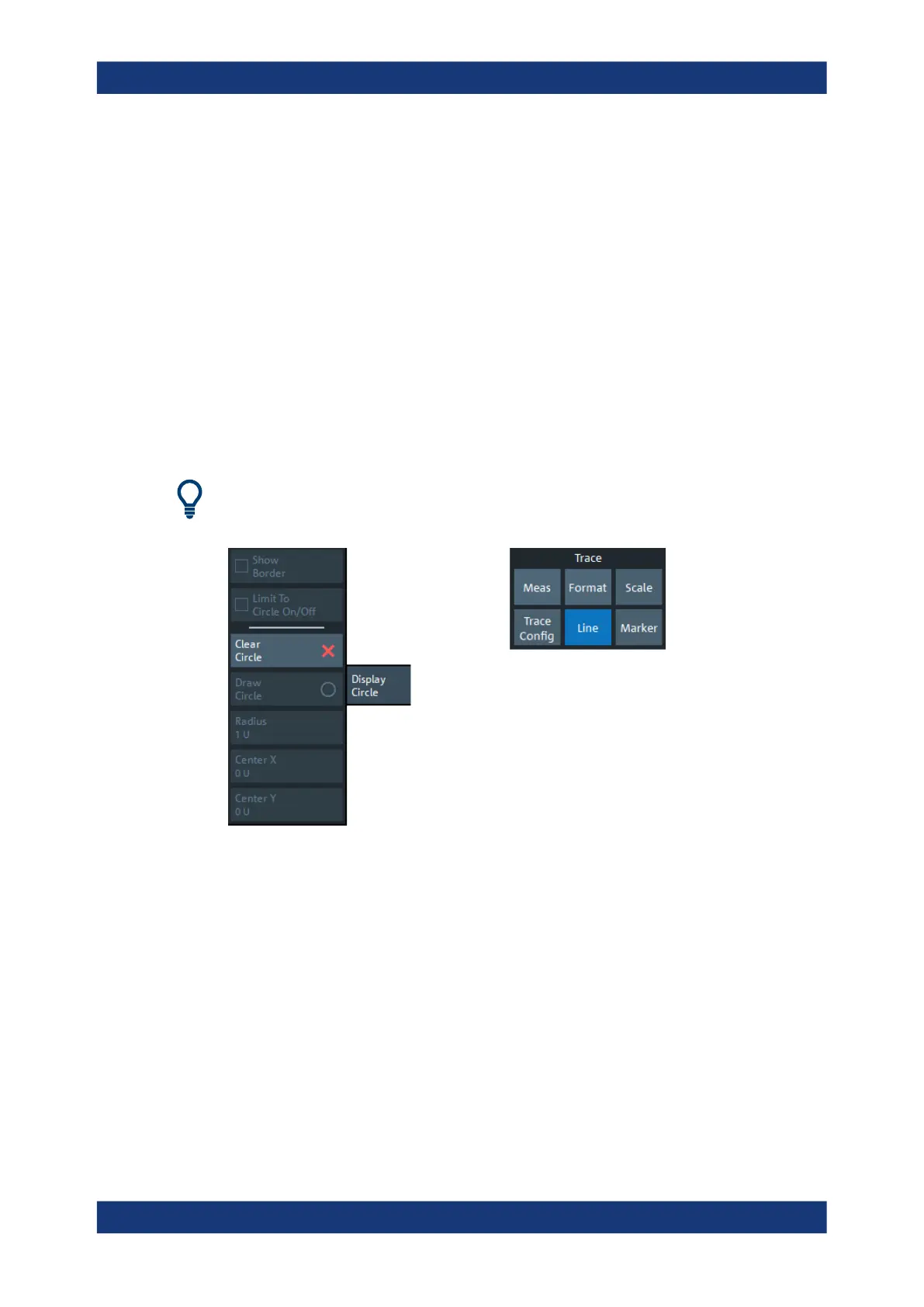

5.6.4 Display Circle tab
The "Display Circle" functionality allows you to limit results in complex trace formats
(Smith, Polar) to a user-defined circle. In particular, while the trace format is complex,
line and circle limit checks are only performed inside the display circle.
Most of the controls on this tab are only active, if the active trace is displayed in a com-
plex format.
Show Border
If enabled, the border of the Display Circle is shown whenever the related trace is dis-
played in complex format.
The border color can be modified by a user-defined color scheme (Element "Vertical
Range Lines").
Remote command:
CALCulate<Chn>:LIMit:DCIRcle:DISPlay[:STATe]
Limit to Circle On/Off
If enabled, only trace points within the configured "Display Circle" are shown, when-
ever the related trace is displayed in complex format. At the same time, the active limit
tests (line, circle) are restricted to the configured "Display Circle".
Lines softtool

R&S ZNA67 Specifications

General

Frequency Range	10 MHz to 67 GHz
Number of Ports	4
Display	12.1" touchscreen
Impedance	50 Ω
Output Power Range	-30 dBm to +10 dBm
Connector Type	2.4 mm
IF Bandwidth	10 MHz
