RF Off Behavior
Allows you to define how the R&S ZNA turns the RF power off.
"RF Switch
Only (Fast),
Default"
Only the RF switch is used.
"RF Switch
and Amp.
(Slow, Lower
Noise)"
In addition to the switches, all amplifiers are turned off. Results in
lower broadband noise.
Remote command:
OUTPut[:STATe]:TYPE on page 1218
Global AGC (R&S ZNB only!)
Allows you to select between two AGC algorithms:
"Memory AGC"
(factory
default)
Optimized gain control pre-measurement: only if required and for as
few sweep points as possible.
"Point AGC"
Legacy AGC algorithm: gain control pre-measurement at every
sweep point.
Typically significantly slower than "Memory AGC".
Remote command:
SYSTem:AGC:GLOBal:METHod

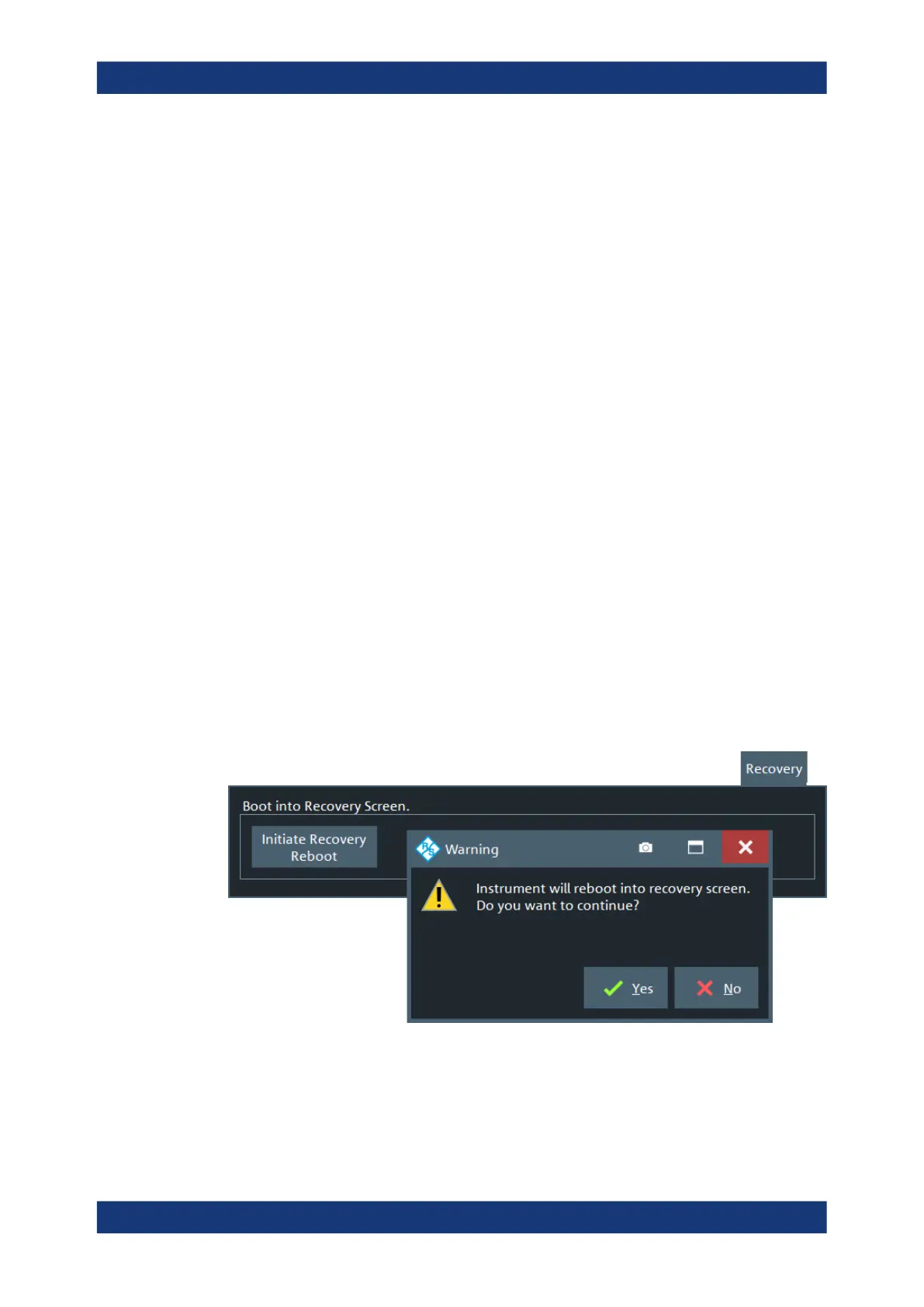

Recovery tab
Provides a single function "Boot into Recovery Screen" that allows you reboot the
instrument and launch the "R&S Recovery Environment". From there you can restore
the original system image (including operating system and firmware).
See Chapter 12.2, "System recovery", on page 1644.
Setup softtool

R&S ZNA67 Specifications

General

Frequency Range	10 MHz to 67 GHz
Number of Ports	4
Display	12.1" touchscreen
Impedance	50 Ω
Output Power Range	-30 dBm to +10 dBm
Connector Type	2.4 mm
IF Bandwidth	10 MHz
