Chapter 5: Adjusting Autopilot Settings 8-5-5
ST290 Instrument System Owner’s Handbook

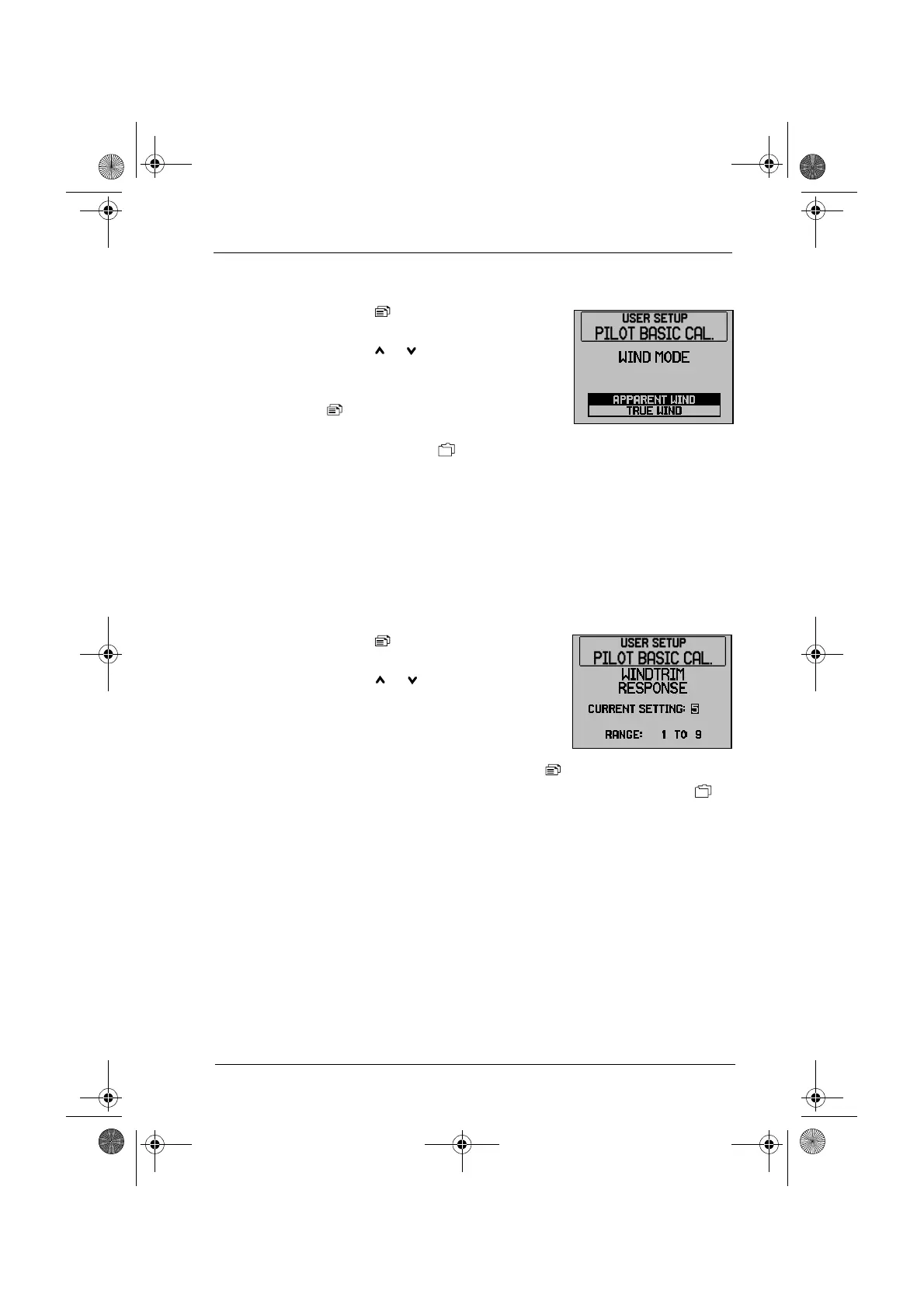

To configure WIND MODE:
WindTrim response
Note:The WINDTRIM RESPONSE function is only active if the vessel type is
set as SAIL BOAT.
Use the WINDTRIM RESPONSE screen to determine how quickly the
autopilot responds to changes in the wind direction.
To configure WINDTRIM RESPONSE:
Ifalowervalue(1 to 3) is used, the autopilot responds to longer term
changes in wind resulting in less autopilot activity.
If a higher value (7 to 9) is used, the autopilot responds to shorter term
changes in wind resulting in more autopilot activity.
Response level
The autopilot response level controls the relationship between course
keeping accuracy and the amount of helm/drive activity. Although you
can make temporary changes to response during normal operation, the
DEFAULT RESPONSE value you set here is the response level at power up.
1. Use the button to scroll to the
WIND MODE page.
2. Use the or button to select true or
apparent wind mode.
3. To move to the next setting press the
button, or to leave the current cali-
bration chapter and save all setting
changes, press the button.
1. Use the button to scroll to the
WINDTRIM RESPONSE page.
2. Use the or button to select the
response level. The adjustment can be
made from 1 to 9 and typical settings
are between 4 and 6.
3. To move to the next setting press the button, or to leave the cur-
rent calibration chapter and save all setting changes, press the
button.
D6092-1
D6093-1
