Section 7. Component Procedures Model 8210/8250 Maintenance Manual
Tractor Covers Finish and Accessories
7-8 Publication: 1146945/001, Revised: 25 Sep 2018
Tractor Covers
NOTE: For replacement parts information refer
to the Parts Manual.
Tractor Cover Removal
The tractor covers are designed to be easily
removed and reinstalled for service and
maintenance.

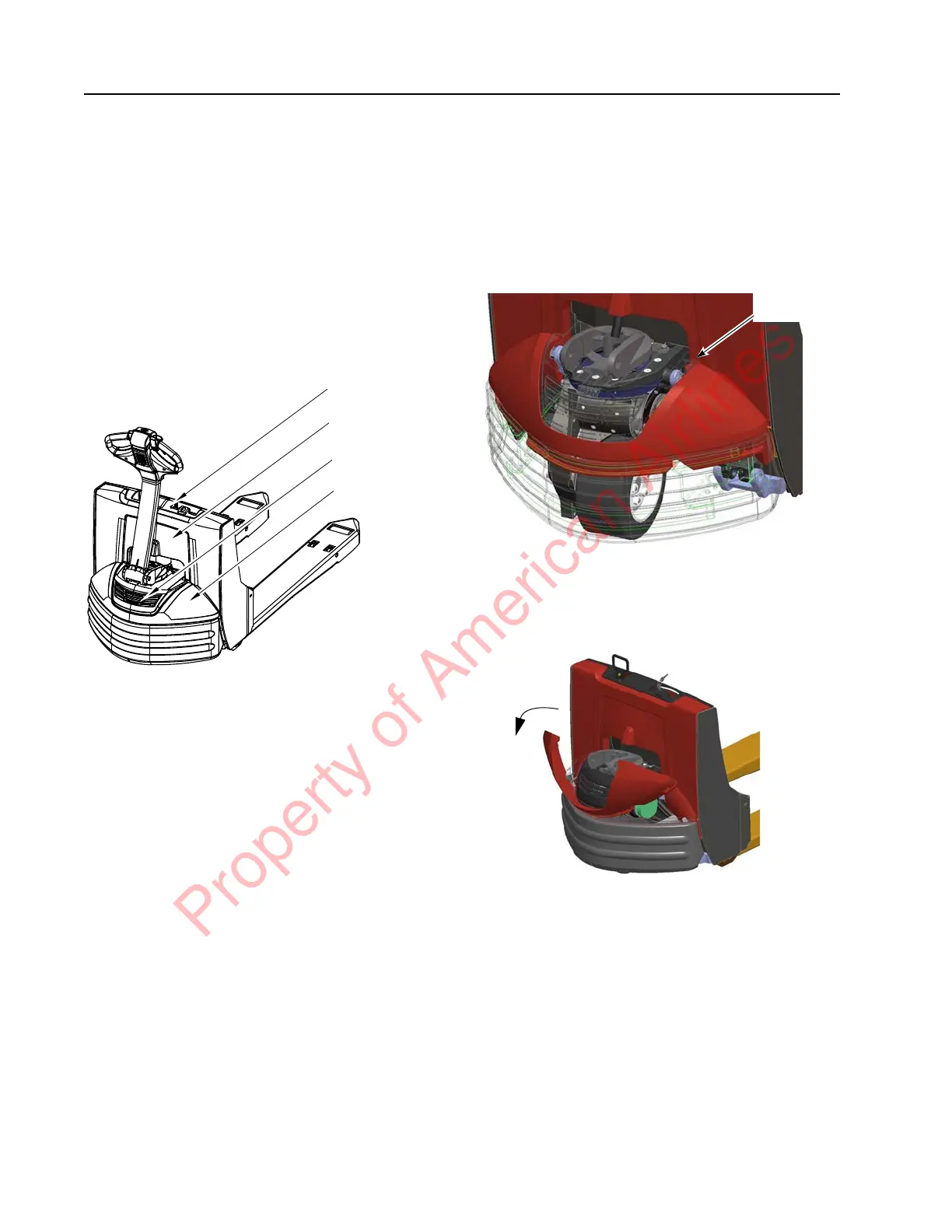

Figure 7-3. Tractor Cover Identification
Remove covers in this order:
1. Lower Cover
2. Grille Cover
3. Upper Cover
4. Console Cover
Lower Cover Removal
1. Place the steer tiller in the centered
(straight ahead) position.
2. Disengage the tabs (first one side and then
the other) from the grille cover.
Figure 7-4. Disengage Tabs at Grille Cover
3. Lift the cover while tilting it toward the
operating position to disengage it from the
bumper.
Figure 7-5. Tilt outward while lifting
Lower Cover
Grille
Upper Cover
Console Cover
Cover
