Section 7. Component Procedures Model 8210/8250 Maintenance Manual
Pallet Forks and Load Wheels Mast
7-110 Publication: 1146945/001, Revised: 25 Sep 2018
Pallet Forks and Load
Wheels
Load Wheels - Single
Load wheels are installed on each pallet fork
and are designed to support the rated load at
the forks fully raised height. Single load wheels
are standard equipment.
Removal and Replacement

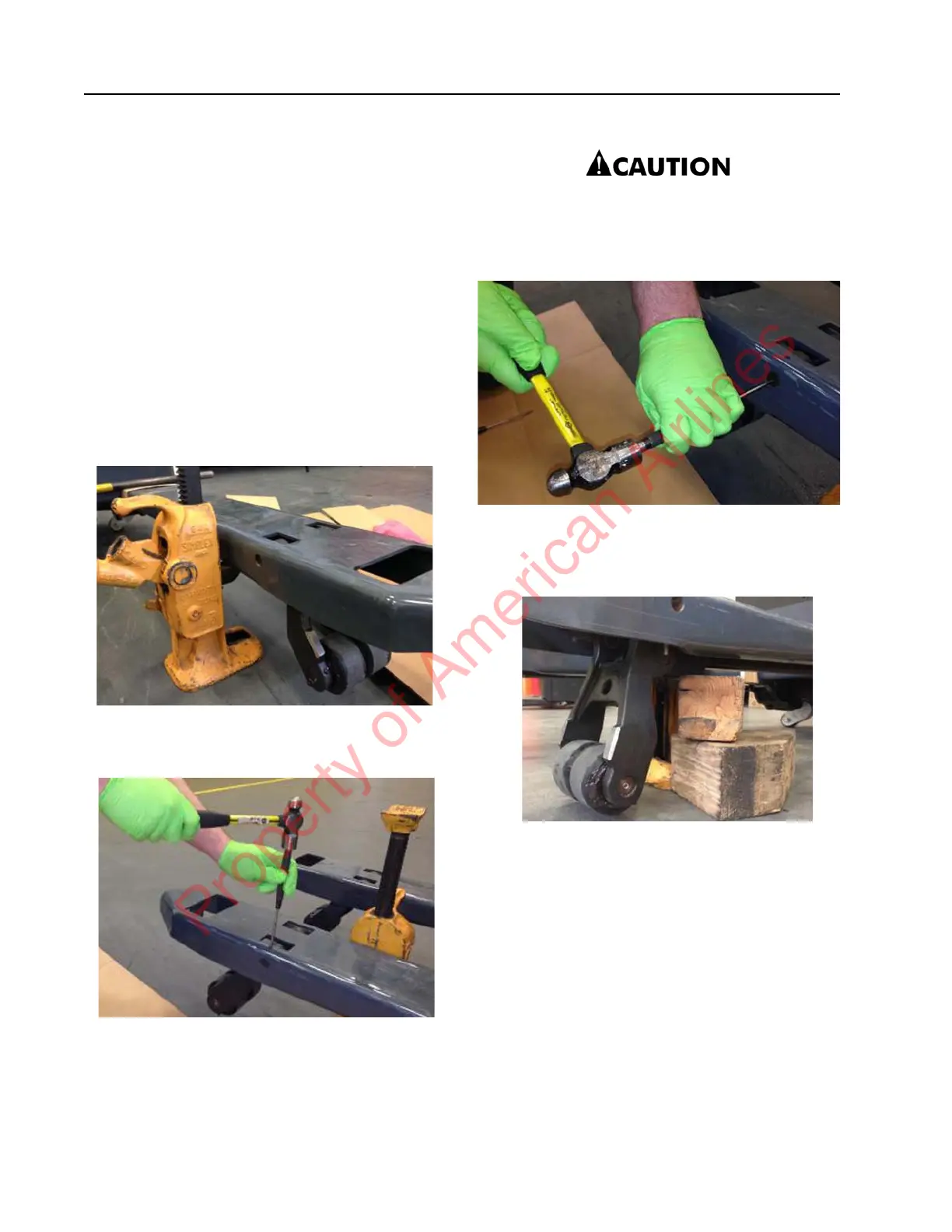

1. Jack the forks. See “Jacking Safety” on
page 2-10.
Figure 7-117.
2. Drive out the spiral pin in the wheel fork
pivot shaft.
Figure 7-118.
3. Place blocks under the pull rod, then drive
out the wheel fork pivot shaft.
The pull rod and wheel fork will drop to
the floor if not blocked prior to
removing the pivot shaft.
Figure 7-119.
4. Make sure the load wheels are slightly off
the floor with the wheel fork pivot shaft
removed.
Figure 7-120.
5. Remove the axle spiral pin. See
Figure 7-121.
