Section 7. Component Procedures Model 8210/8250 Maintenance Manual
Keypad Steering and Controls
7-20 Publication: 1146945/001, Revised: 25 Sep 2018
Keypad
A keypad is offered as optional equipment. The
keypad allows access to the lift truck through a
personalized PIN number. Keypads may be
added in the field to lift trucks originally
manufactured without one. Factory
authorization must be granted before the
addition of any equipment on the lift truck.
Keypad Removal

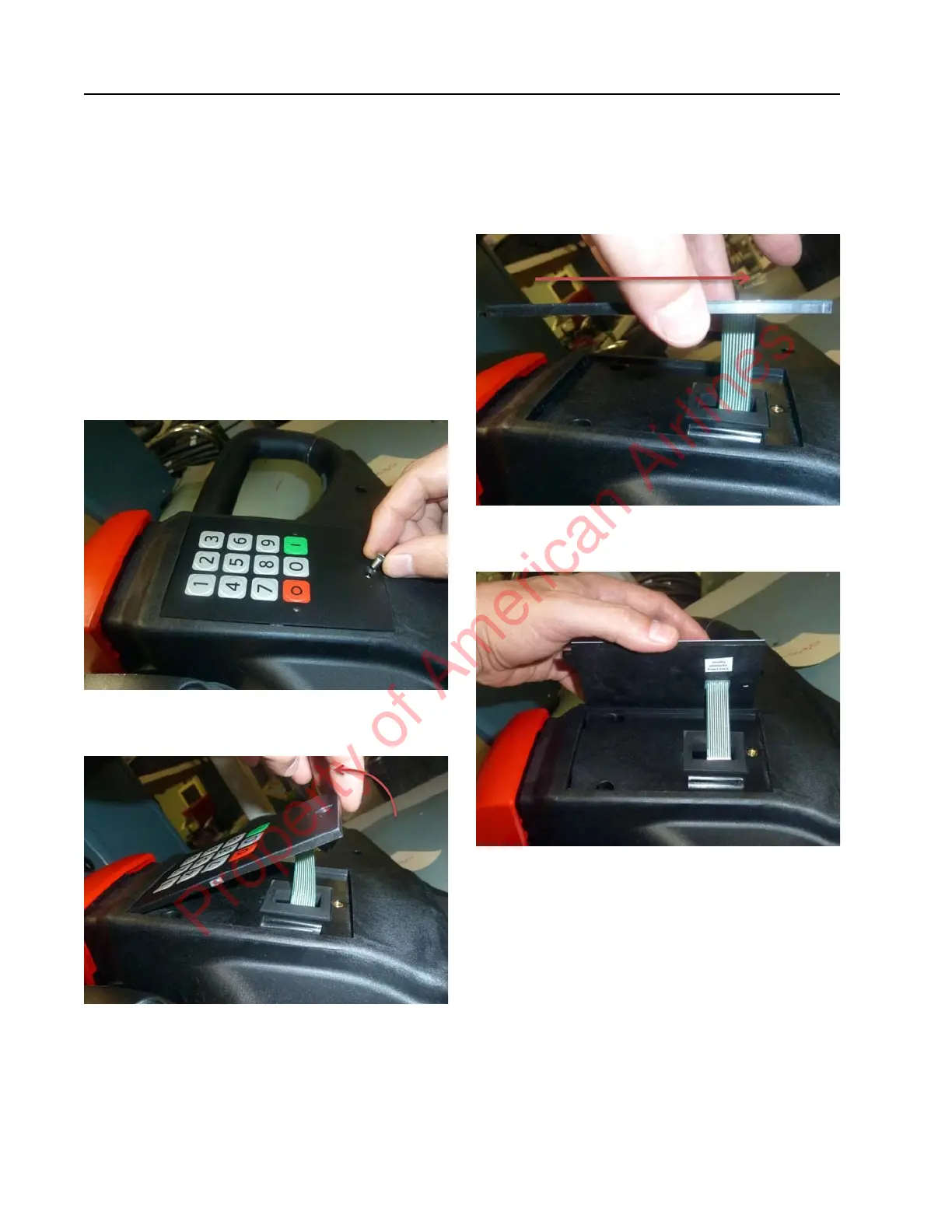

1. Remove the keypad retaining screw.
Figure 7-25.
2. Slowly lift the keypad from the retaining
screw edge.
Figure 7-26.
3. Carefully move the keypad toward the
handle stem to release the keypad
mounting tabs from the control handle
head.
Figure 7-27.
4. Tilt the keypad to gain access to the
ribbon cable connector.
Figure 7-28.
