Model 8210/8250 Maintenance Manual Section 3. Systems Overview
Special Tools
Publication:1146945/001, Revised: 25 Sep 2018 3-21
Special Tools
The following tools are available from your local
authorized Raymond Sales and Service Center.
Table 3-2. Special Tools
Service Key
Use the optional Service Key (P/N 851-201-500)
directly on the truck to troubleshoot and
program the truck service parameter settings.
See “Programming Service Parameters” on
page 3-8.

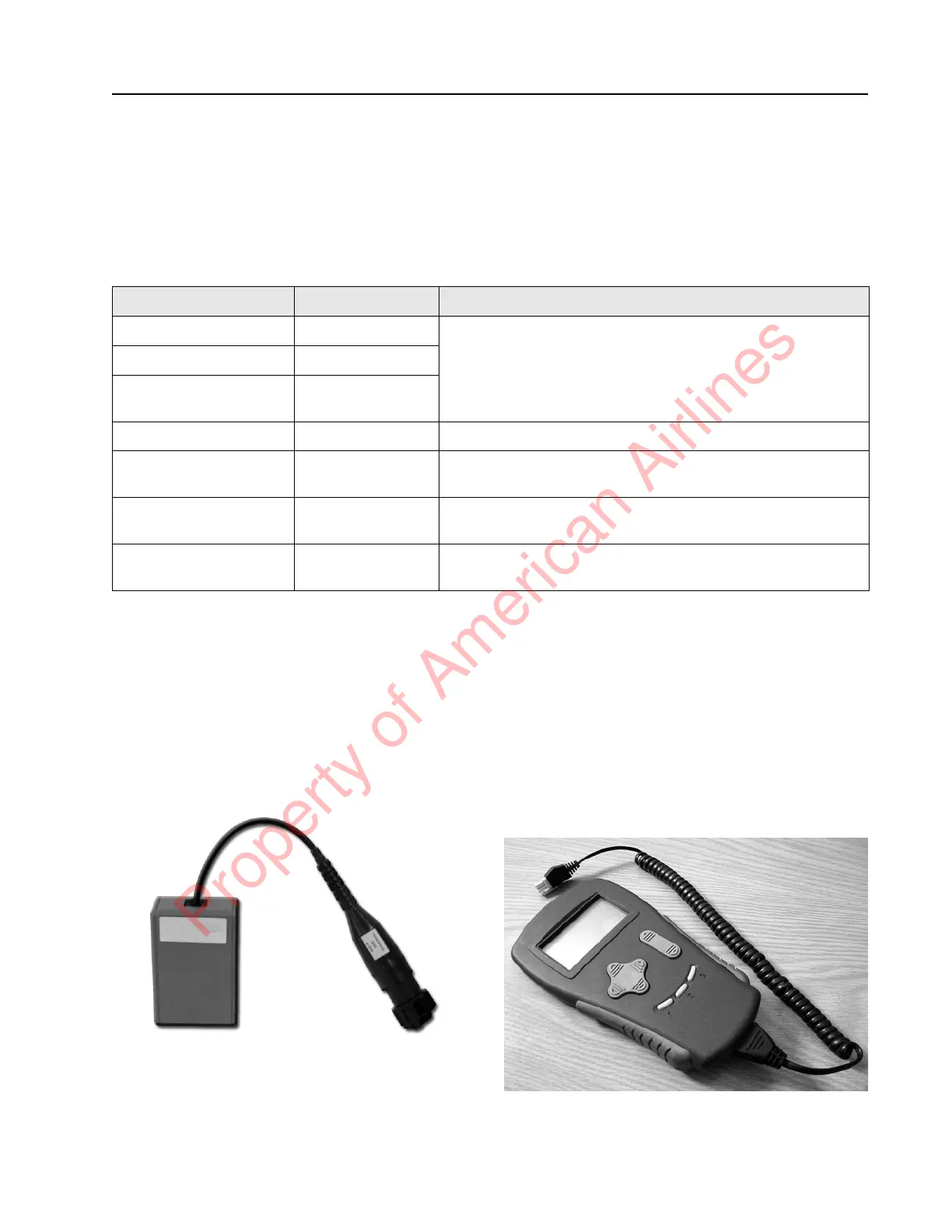

Figure 3-8. Service Key
Programmable Maintenance
Tool
NOTE: A serial breakout harness is required to
use the programmable maintenance tool
on this lift truck.
The optional Programmable Maintenance Tool
(PMT) permits you to test and diagnose the
power amplifier in the truck. See Figure 3-9.
Figure 3-9. Programmable Maintenance Tool
Tool Part Number Purpose
Anti-static Field Kit 1-187-059 ESD Protection
Anti-static Wrist Straps 1-187-058/001
Anti-static Wrist Strap
Tester
1-187-060/100
Crimp Tool 1069861 Crimp power cable lugs
Surge Protector 154-010-801 ESD/voltage surge protection for serial type FlashWare
connections
USB/CAN Interface 230489-001 FlashWare connection to truck. See “FlashWare” on
page 3-25 for details.
USB Cable 163793BT USB cable used with FlashWare connection. See
“FlashWare” on page 3-25 for details.
