Model 8210/8250 Maintenance Manual Section 7. Component Procedures

Electrical Components Lithium-Ion Battery

Publication: 1146945/001, Revised: 25 Sep 2018 7-61

Cooling Fan

Cooling Fan Removal

Perform the following steps to remove the

Cooling Fan.

1. If equipped with the optional keypad,

press the red OFF ( O ) key. Place the Main

ON/OFF Switch in the OFF position.

Disconnect the battery connector from the

truck.

2. Remove the top cover. See “Top Cover

Removal” on page 7-49.

3. Remove the front cover. See “Front Cover

Removal” on page 7-50.

4. Unplug the cooling fan from the connector.

5. Unscrew the four cooling fan screws

mounting the fan to the lithium-ion

battery.

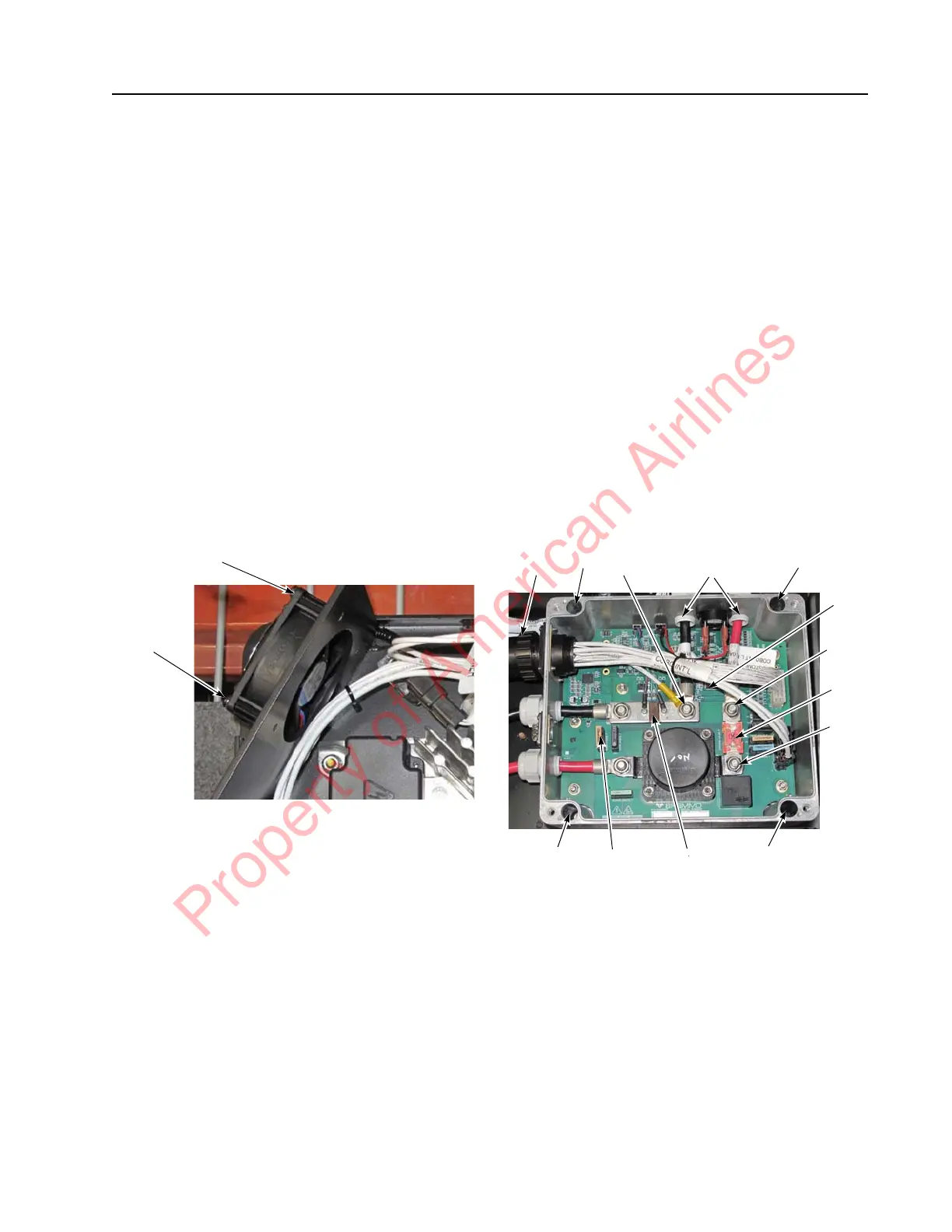

Figure 7-76. Fan Mounting Screws

6. Remove the cooling fan and all related

hardware.

Cooling Fan Installation

Perform the following steps to install the cooling

fan.

1. Align the cooling fan to the four mounting

screw holes on the lithium-ion battery.

2. Guide the four screws into the fan and into

the lithium-ion battery,

3. Place the four cooling fan spacers on the

screws once the screws are guided all the

way through.

4. Screw the four cooling fan mounting

screws.

5. Install fasteners. Torque fasteners to

0.9 ft. lb. (1.2 Nm).

6. Connect the cooling fan to the cooling fan

connector inside the lithium-ion battery.

7. Install the front cover. See “Front Cover

Installation” on page 7-50.

8. Install the top cover. See “Top Cover

Installation” on page 7-49.

9. Reconnect the battery connector. Place the

Main ON/OFF Switch in the ON position.

If equipped with the optional keypad, enter

your PIN-key code and then press the

green ON ( | ) key.

10. Test the operation of the truck.

SBX Cable Assembly

Figure 7-77. BMC Component Locations

SBX Cable Assembly Removal

Perform the following steps to remove the SBX

Cable Assembly. Refer to Figure 7-77.
