Raymond 8210 - Tractor Bumper; Bumper Removal; Bumper Installation

Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Finish and Accessories Tractor Bumper
Publication: 1146945/001, Revised: 25 Sep 2018 7-13
Tractor Bumper
The tractor bumper is designed to be easily
removed and re-installed for service and
maintenance.
Bumper Removal
1. Remove the tractor covers. See “Tractor
Covers” on page 7-8.
2. Remove the eight bolts securing the
bumper to the pivot frame.

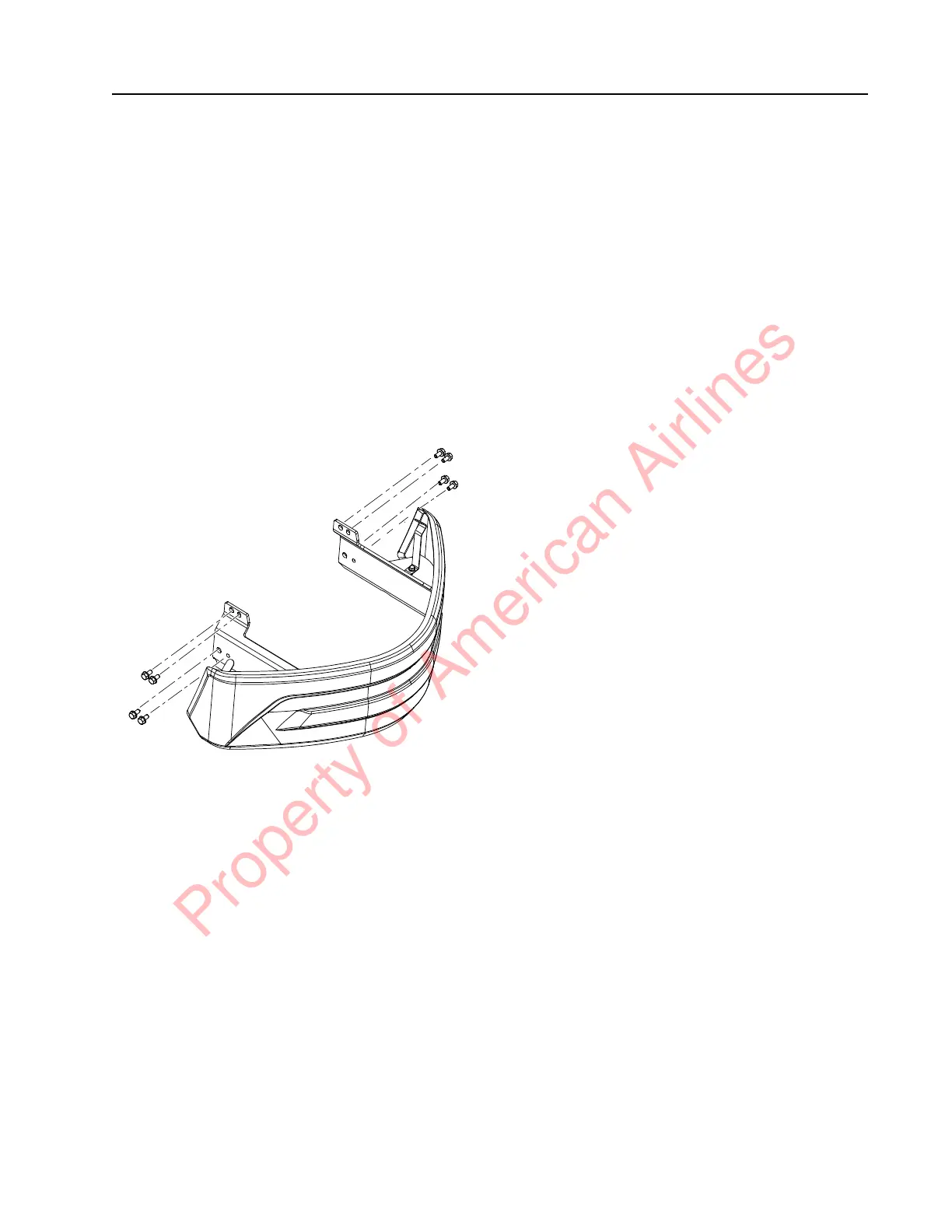

Figure 7-17. Bumper Removal
Bumper Installation
To install the bumper:
1. Attach the bumper to the pivot frame.
2. Install the bumper mounting bolts in the
order identified in Figure 7-17.
3. Torque bolts to 27 ft. lb. (37 Nm).
4. Install the tractor covers. See “Tractor
Covers” on page 7-8.
