Section 4. Scheduled Maintenance Model 8210/8250 Maintenance Manual
Pin Locations
4-8 Publication: 1146945/001, Revised: 25 Sep 2018
Pin Locations

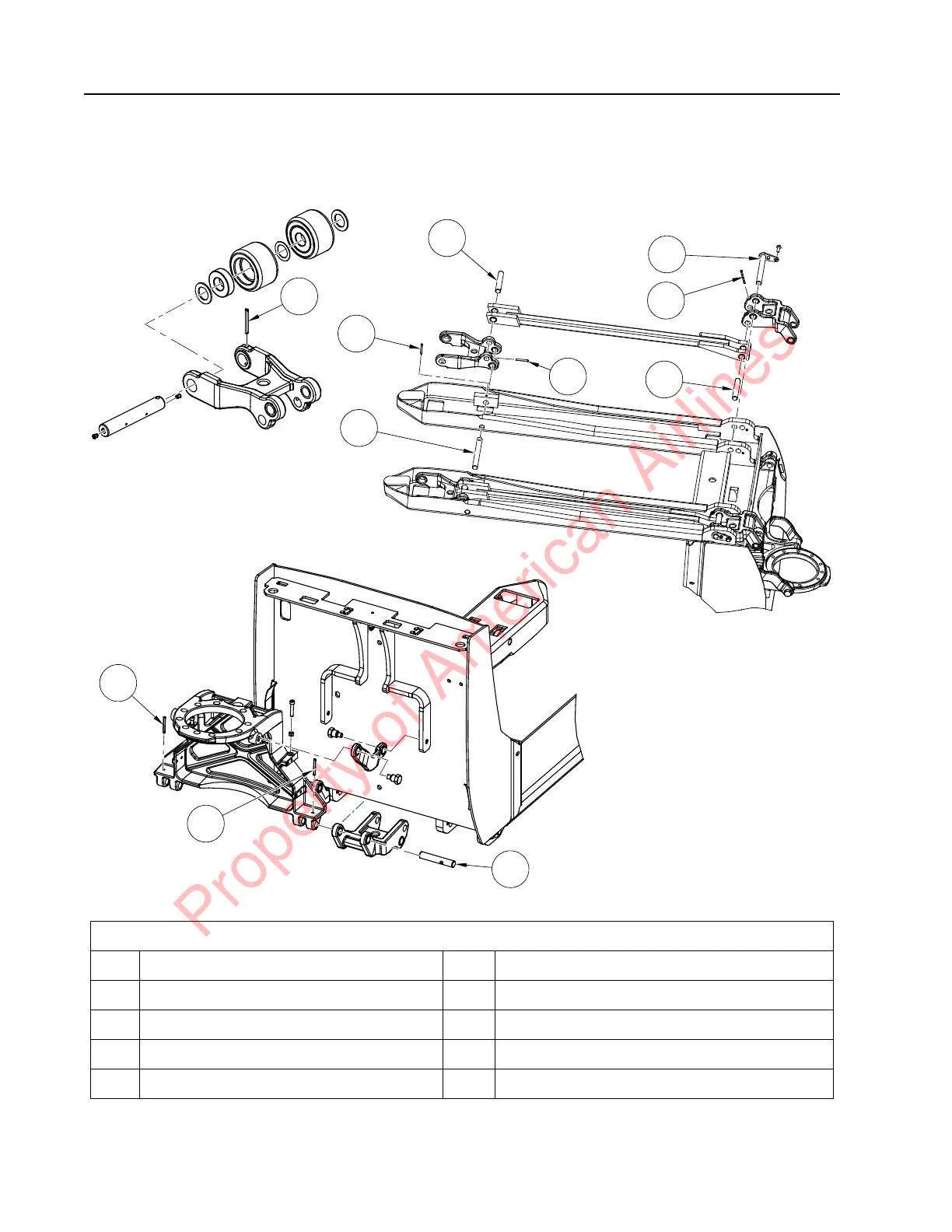

Figure 4-3: Pin Locations
10
1
7
3
6
9
2
4
5
8
9
Legend:
1 Load Wheel Roll Pin 6 Roll Pin
2 Wheel Fork Shaft 7 Roll Pin
3 Roll Pin 8 Wheel Fork/Tractor Frame Pin
4 Lower Link/Tractor Frame Pivot Pin 9 Roll Pin
5 Pull Rod/Lower Link Pin 10 Lower Link Pin
