Lift Truck Specifications
3-4 Publication: 1146945/001, Revised: 25 Sep 2018
Lift Truck Specifications
This lift truck is rated for performance by
evenly distributed load weight with forks
elevated. Load weight includes the weight of the
pallet, container, or load-holding attachment.
The specification tag is located on the left side
of the upper cover when facing the truck from
the operating position.
A second specification tag is located inside the
tractor compartment on the right side bulkhead
plate as you face the tractor compartment. See
Figure 3-2.
A battery specification tag is located on the left
side of the top of the battery when facing the
truck from the operating position. See
Figure 3-3.
Due to continuous product improvement,
specifications are subject to change without
notice or obligation.

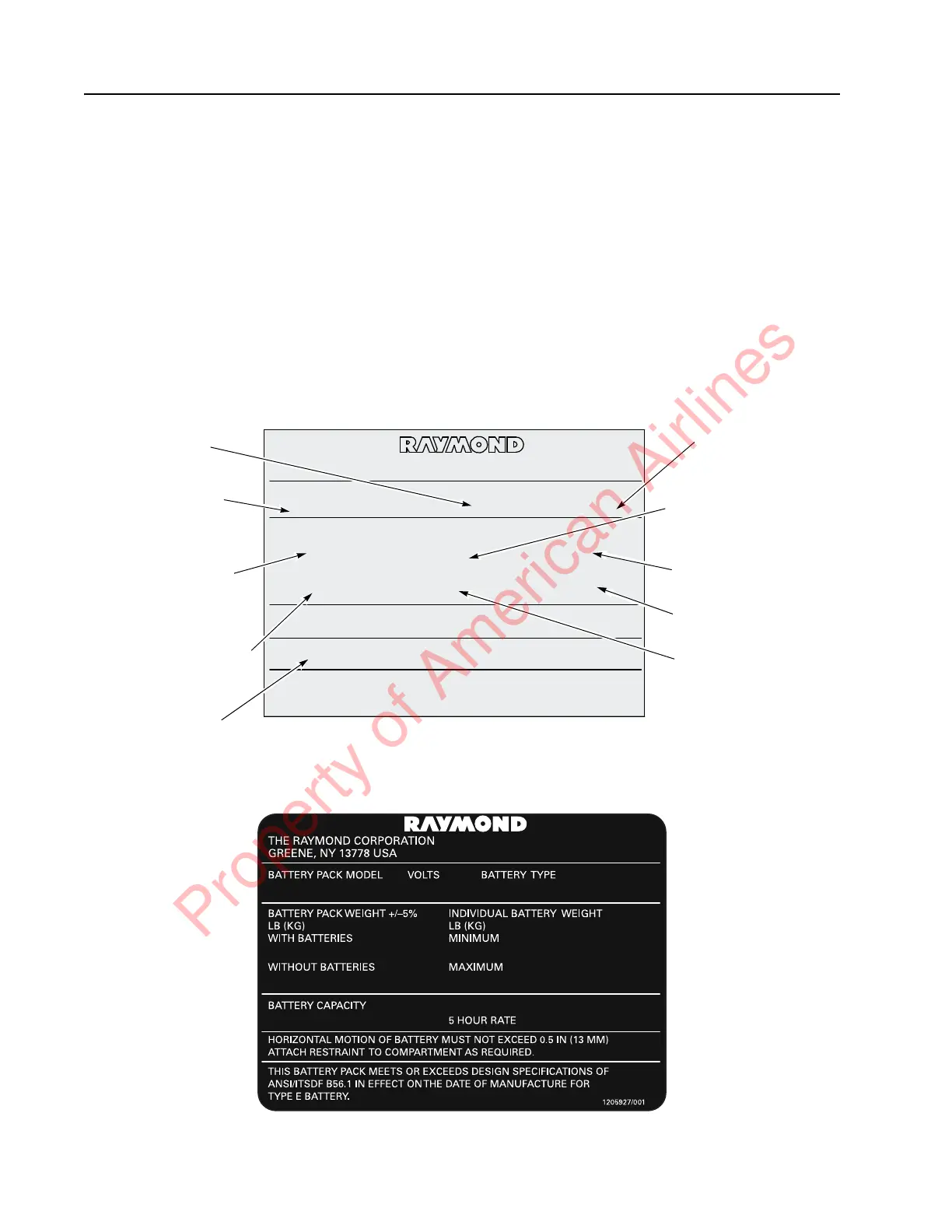

Figure 3-2. Lift Truck Specification Tag - Model 8210 Pallet Truck
3939-352-256.cgm
Figure 3-3. Battery Specification Tag - Model 8210 Pallet Truck
3939-352-256.cgm
MODEL SERIAL NUMBER VOLTS
TRUCK WEIGHT +/-5%
MAX. BATTERY, LBS (KGS)
BATTERY WEIGHT
MAXIMUM, LBS (KGS)
BATTERY RATE
AMP-HOUR
HOUR RATEMINIMUMWITHOUT BATTERY
HORIZONTAL MOTION OF BATTERY MUST NOT EXCEED 0.5 IN (13 mm) ATTACH
RESTRAINT TO COMPARTMENT AS REQUIRED.
MAX. CAPACITY (UNIFORMLY DISTRIBUTED LOAD)
THIS FORKLIFT TRUCK MEETS OR EXCEEDS DESIGN SPECIFICATIONS OF
ANSI/ITSDF B56.1 IN EFFECT ON THE DATE OF MANUFACTURE FOR TYPE ___
INDUSTRIAL TRUCKS WHEN EQUIPPED WITH TYPE ___ BATTERY.
THE RAYMOND CORPORATION
GREENE, NY 13778 USA
TAG NO.
1202633/001
LBS KGS
Raymond model
Serial number
Approximate weight
of lift truck minus
battery and load
Approximate weight
of lift truck with
battery installed,
minus load
Maximum load
capacity for this lift
truck
Nominal battery
voltage
Power rating of
battery
Maximum battery
weight for this lift
truck
Minimum battery
weight for this lift
truck
NOTE: Battery weight must be between the
minimum and maximum weight
Hour rating of
battery
