Section 7. Component Procedures Model 8210/8250 Maintenance Manual
Static Strap Replacement Options
7-128 Publication: 1146945/001, Revised: 25 Sep 2018
Static Strap Replacement
Lift trucks with the EE option have a static
strap attached to the drive unit. Replacement of
the strap is necessary when it becomes worn.
1. Lower the forks.
2. If equipped with the optional keypad,
press the red OFF ( O ) key. Place the Main
ON/OFF Switch in the OFF position.
Disconnect the battery connector.
3. Remove the lower and grille covers. See
“Tractor Cover Removal” on page 7-8.
4. Remove the bumper. See “Bumper
Removal” on page 7-13.
Use extreme care whenever the truck is
jacked up. Keep hands and feet clear
from the vehicle while jacking the truck.
After the truck is jacked, put solid blocks
beneath it to support it. DO NOT rely on
the jack alone to support the truck. For
details, see “Jacking Safety” on
page 2-10.
5. Jack the truck and block the frame.

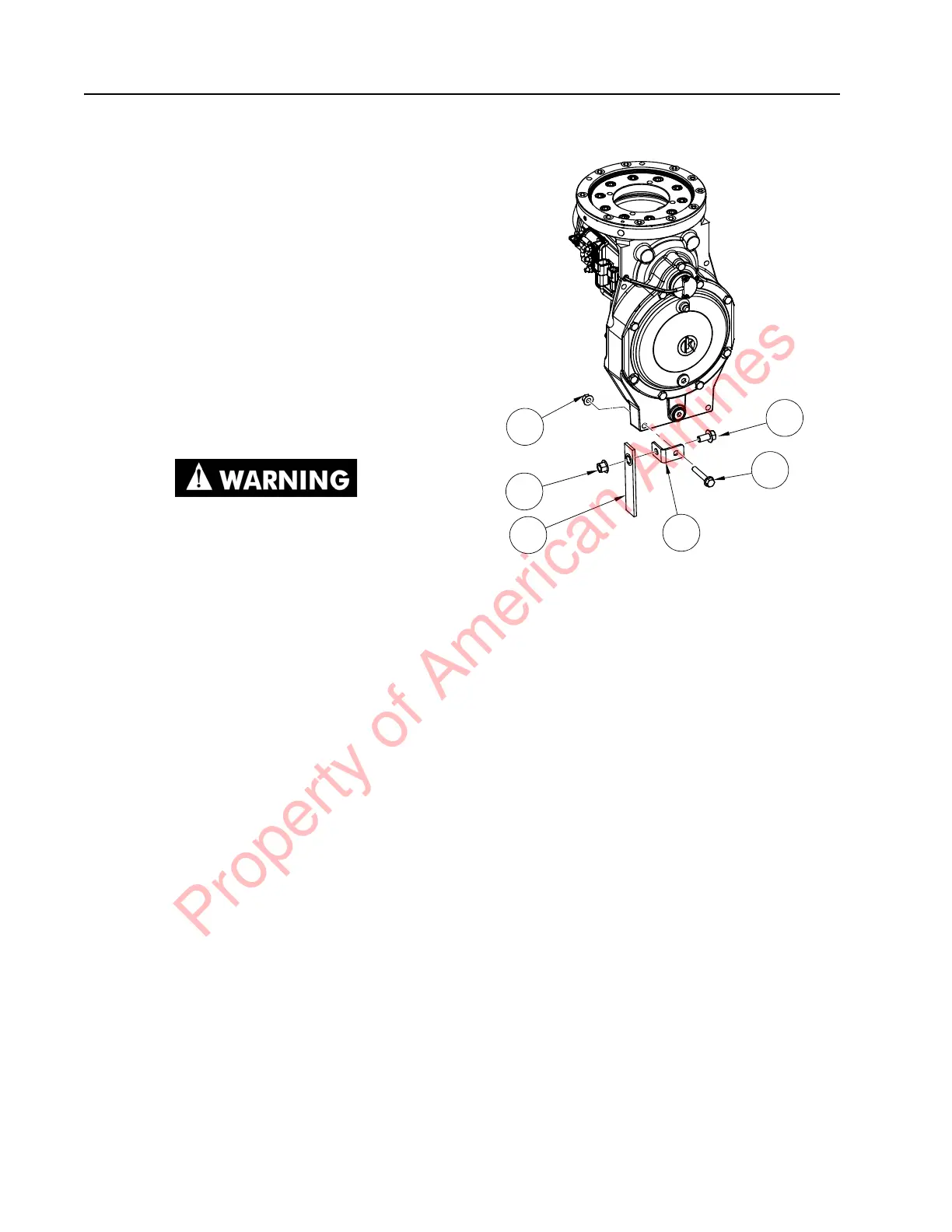

6. Remove the nut [8] and bolt [5] securing
the static strap [4] to the bracket [10].
Figure 7-146.
7. Check the bracket [10] for damage.
Replace if necessary. If the bracket is
replaced, torque the bracket to drive unit
mounting bolt [6] to 27 ft. lbs (37 Nm).
8. Attach a new static strap [4] to the bracket
[10] using the nut [8] and bolt [5] removed
previously. Torque the bolt to 56 ft. lbs.
(76 Nm).
9. Unblock and lower the truck.
10. Install the bumper. See “Bumper
Installation” on page 7-13.
11. Install the lower and grille covers. See
“Tractor Cover Installation” on page 7-10.
12. Reconnect the battery connector. Place the
Main ON/OFF Switch in the ON position.
If equipped with the optional keypad, enter
your PIN-key code and then press the
green ON ( | ) key.
13. Check the lift truck for correct operation.
