Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Finish and Accessories Tractor Covers
Publication: 1146945/001, Revised: 25 Sep 2018 7-9
Grille Cover Removal
1. Grasp one side of the grille cover and pull
straight out (toward the operating position)
to release the snaps from the main
harness bracket.

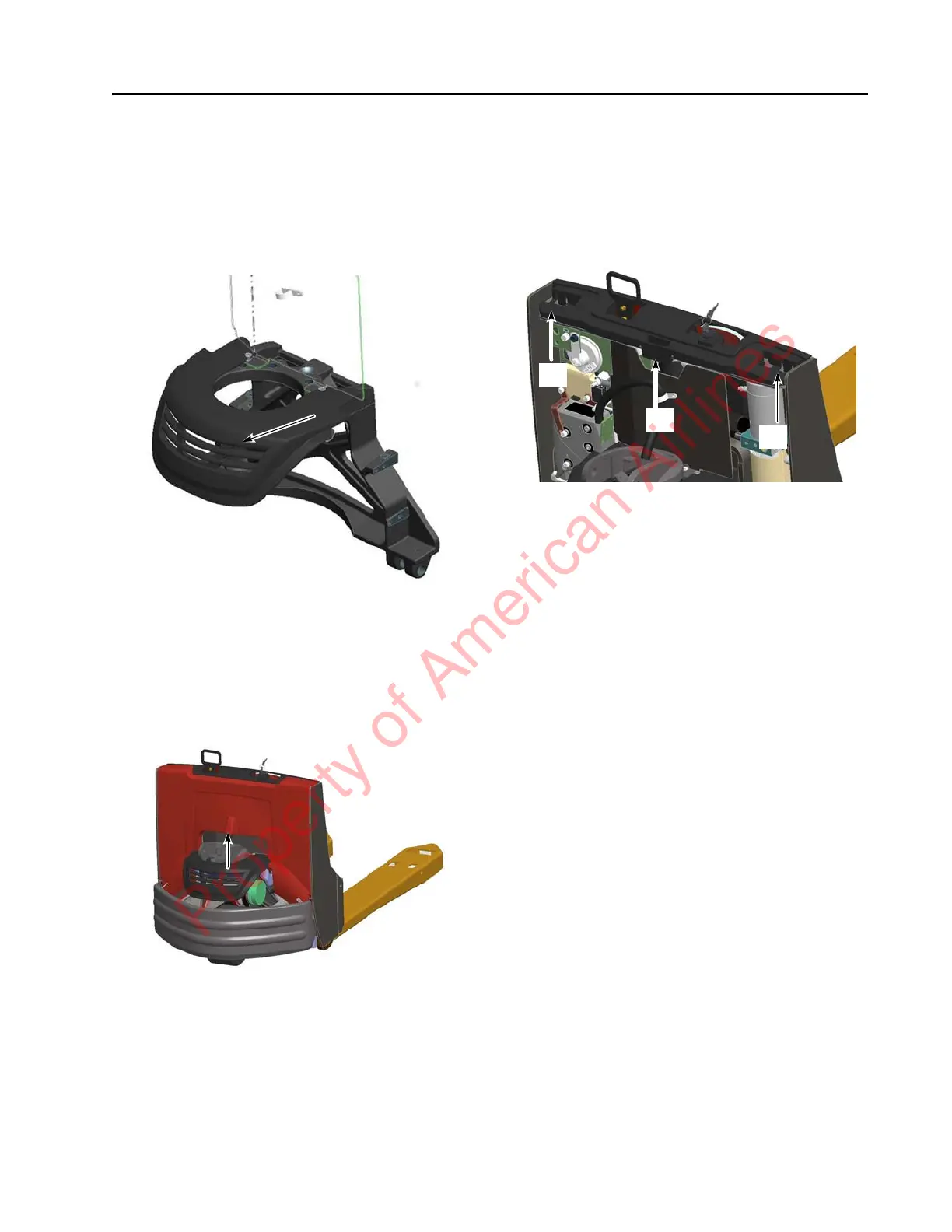

Figure 7-6.
Upper Cover Removal
1. Place hand(s) under the center of the
upper cover. Lift upward to disengage the
upper cover from brackets on the side
plates.
Figure 7-7.
2. Tilt the top of the upper cover away from
the truck while lifting the cover off.
Console Cover Removal
1. Disengage the center snap from the top
plate and lift upwards.
Figure 7-8. Console Cover Removal Sequence
2. While lifting the center of the cover,
disengage the snap on the right side of the
cover.
3. Continue lifting after the right side of the
cover is released and disengage the snap
on the left side of the cover.
4. Lift the cover straight up to remove it
completely from the lift truck.
