Raymond 8210 - Digital Input from Vehicle Manager Control Sensors

Model 8210/8250 Maintenance Manual Section 3. Systems Overview
Service Display
Publication:1146945/001, Revised: 25 Sep 2018 3-19

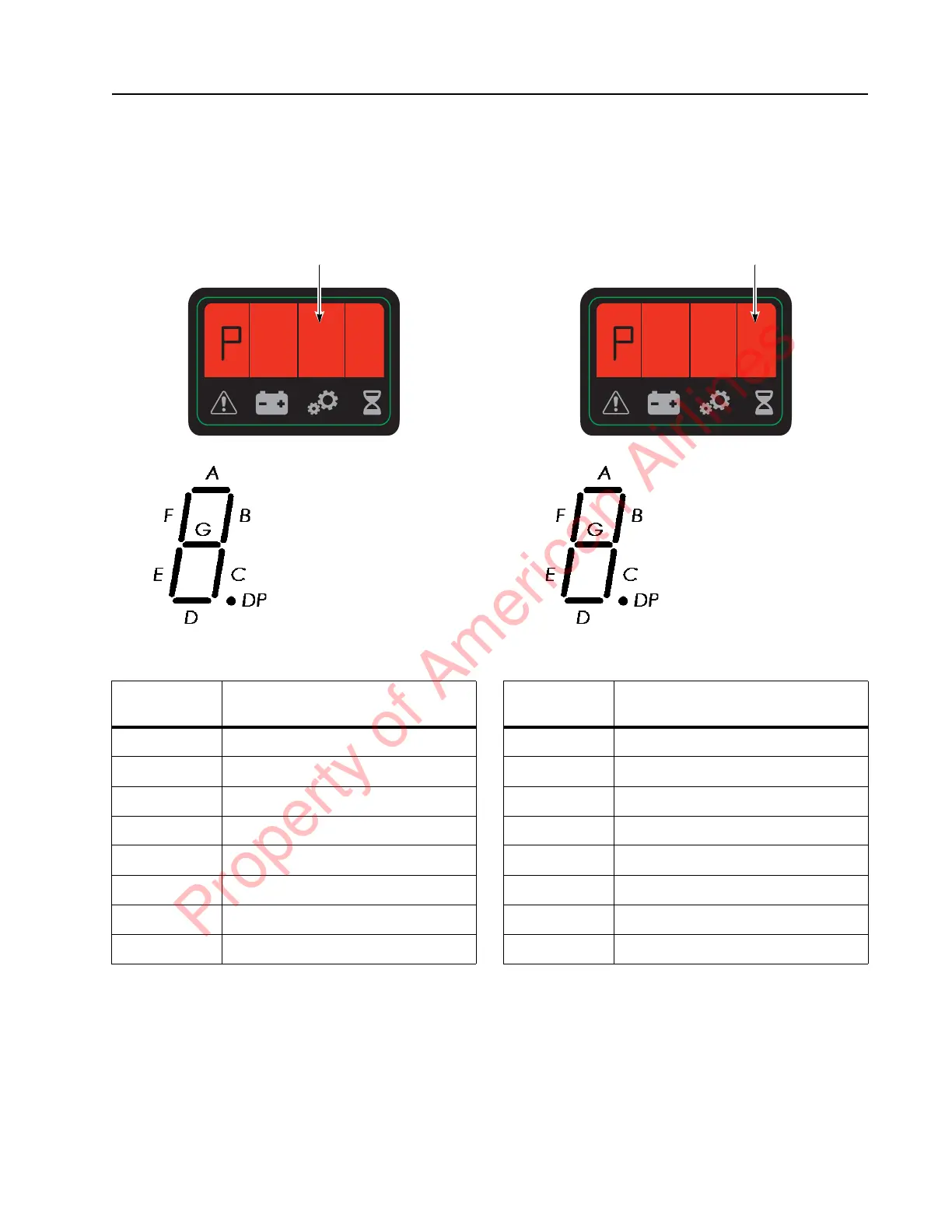

Digital Input from Vehicle Manager
Control Sensors
The third most significant figure active (marked
with arrow).
Digital Input from Vehicle Manager
Control Sensors
The fourth most significant figure active
(marked with arrow).
Figure
Segment
Function
A
B
C
D Lift Switch
E Lower Switch
F Click-to-Creep
G
DP VM Input: Horn
Figure
Segments
Figure
Segment
Function
A
B
C
D
E
F
G
DP
Figure
Segments
