Raymond 8210 - Traction Amplifier Inputs; Traction Amplifier Outputs

Section 3. Systems Overview Model 8210/8250 Maintenance Manual
Service Display
3-18 Publication: 1146945/001, Revised: 25 Sep 2018

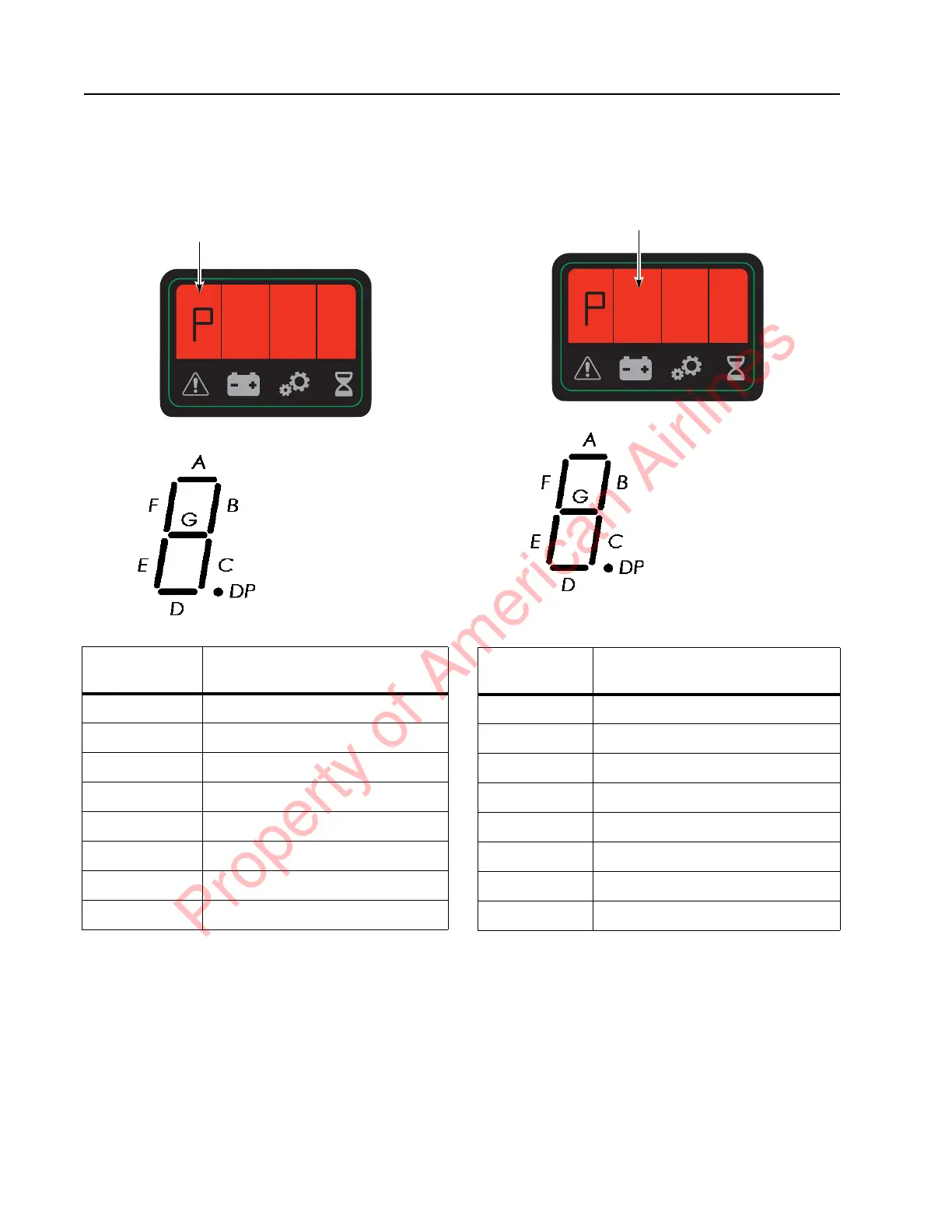

Traction Amplifier Inputs
The first most significant figure active (marked
with arrow).
Traction Amplifier Outputs
The second most significant figure active
(marked with arrow).
Figure
Segment
Function
A Brake Switch
B
C
D Lift Switch
E
F
G
DP Brake Override Switch
Figure
Segment
Figure
Segment
Function
A Main Contactor
B Brake Switch
C Lift Contactor
D
E
F Travel Alarm
G Lower
DP
Figure
Segments
