Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Mast Pallet Forks and Load Wheels
Publication: 1146945/001, Revised: 25 Sep 2018 7-111

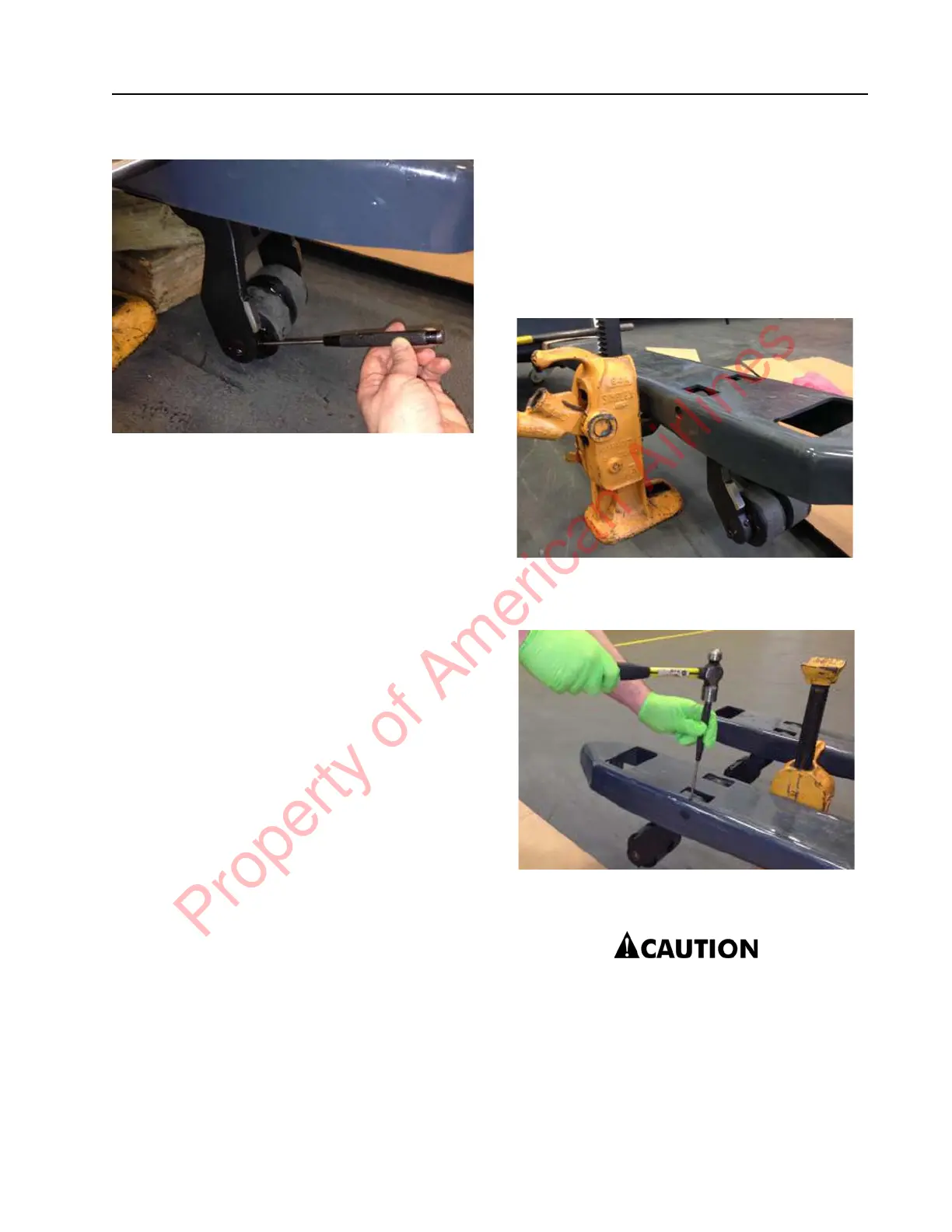

Figure 7-121. Removing Spiral Pin
6. Drive the axle out of the wheel fork with a
hammer and brass drift pin.
7. Push the wheel out.
8. If the bearings are to be reused, insert a
brass drift pin into each end of the load
wheel and knock the bearings out.
9. Install the bearings in the new load wheel
with the shields facing out.
10. Place the new load wheel upright on a flat
surface. Position the bearing over the load
wheel. Put a flat metal plate over the
bearing, and hammer the bearing in
position with a plastic mallet. Make sure
the bearing is fully seated in the load
wheel.
11. Align the wheel with the holes in the wheel
fork.
12. Drive the axle through the wheel fork and
wheel. Align the “dimple” in the axle with
the spiral pin hole.
13. Install the spiral pin.
14. Install the wheel fork pivot shaft.
15. Install the spiral pin in the wheel fork
pivot shaft.
16. Remove the blocks under the pull rods and
lower the forks to the floor.
17. Add grease if greaseable load wheel.
Load Wheels - Dual
Dual load wheels are available as an option.
Removal and Replacement
1. Jack the forks. See “Jacking Safety” on
page 2-10.
Figure 7-122.
2. Drive out the spiral pin in the wheel fork
pivot shaft.
Figure 7-123.
3. Place blocks under the pull rod, then drive
out the wheel fork pivot shaft.
The pull rod and wheel fork will drop to
the floor if not blocked prior to
removing the pivot shaft.
