Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Component Location Photos
Publication: 1146945/001, Revised: 25 Sep 2018 7-5
Section 7. Component Procedures
Component Location Photos

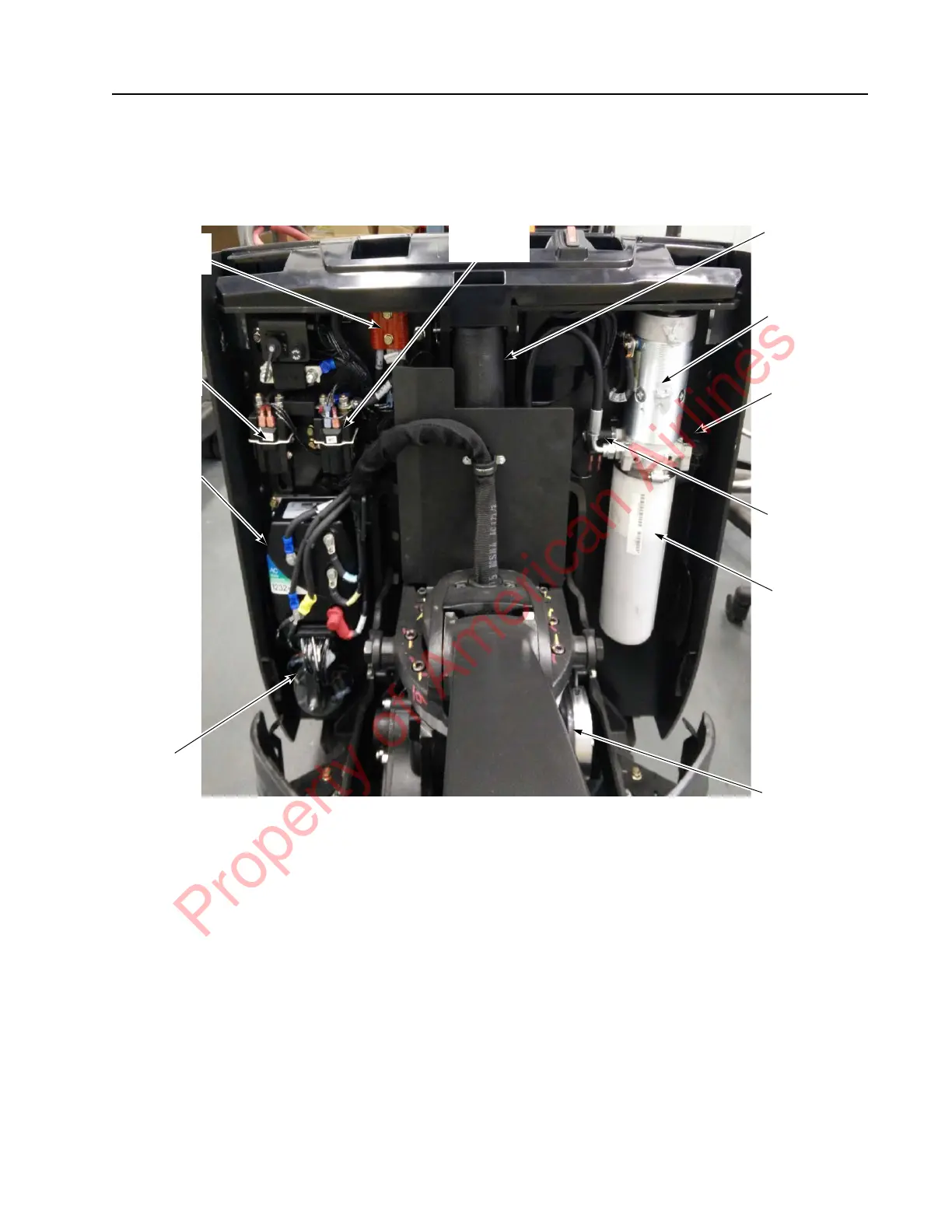

Figure 7-1. Tractor Interior
Horn
Drive Unit
(beneath
handle)
Main
Contactor
Hydraulic
Cylinder
Fill/Vent
Plug
Hydraulic
Reservoir
Battery
Connector
Lift
Contactor
Hydraulic
Solenoid
Lift Motor
Traction
Amplifier
