Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Finish and Accessories Tractor Covers
Publication: 1146945/001, Revised: 25 Sep 2018 7-11

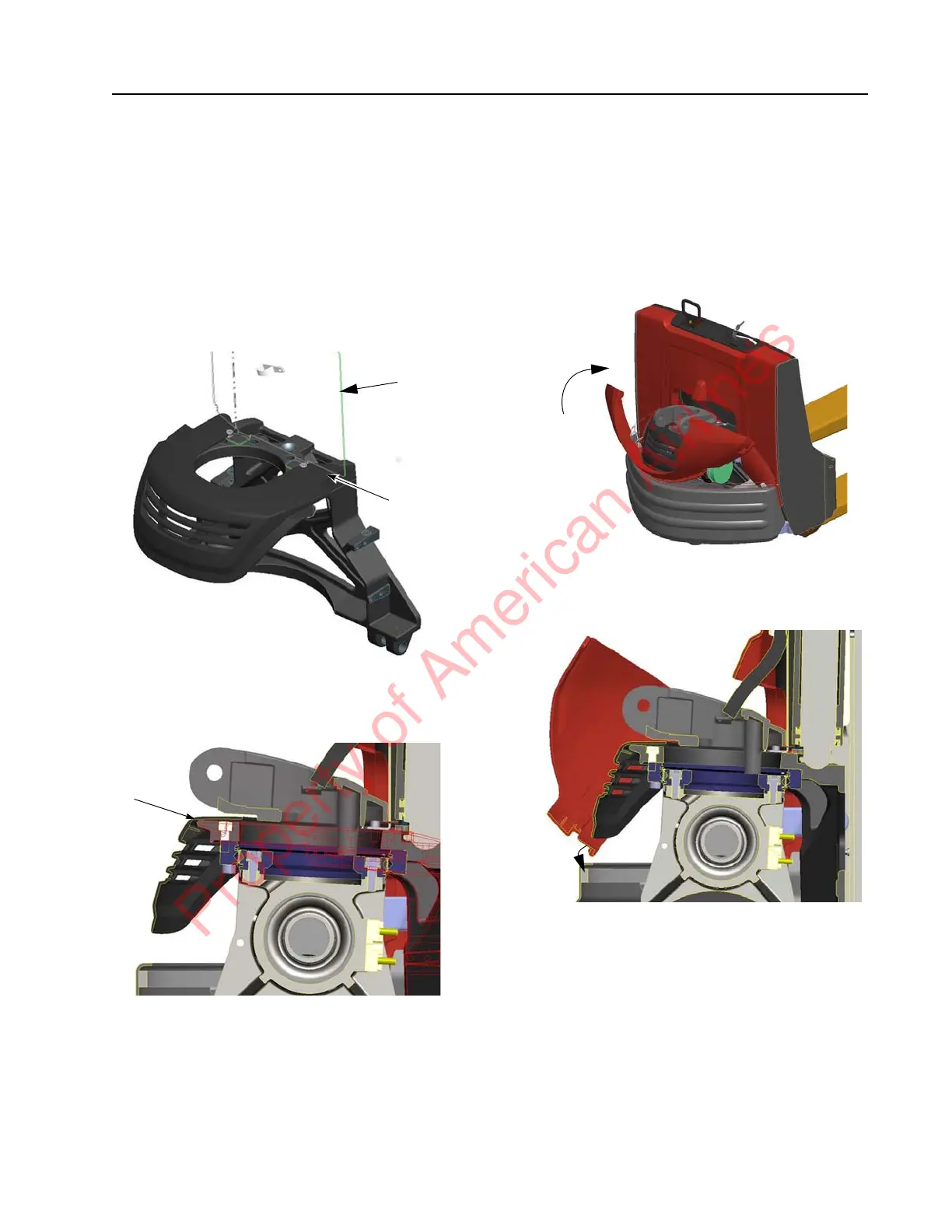

Grille Cover Installation
1. Place the grille cover flat on the top
surface of the drive unit frame.
2. Slide the grille cover toward the forks of
the trucks. The grille cover tabs will slide
underneath the main harness bracket and
around the heads of the main harness
bracket mounting bolts. This locks the
grille cover in position.
Figure 7-12.
3. Pull up on the back of the grille cover to
make sure it is engaged with the casting.
Figure 7-13. Grille Cover Engaged with Casting
Lower Cover Installation
1. Place the steer tiller in the centered
(straight ahead) position.
2. Place the center of the lower cover between
the grille cover, drive unit, and bumper
assembly.
Figure 7-14.
3. Seat the notch of the lower cover under the
bumper beam.
Figure 7-15. Seat lower cover in bumper
Main
Harness
Bracket
Grille
Cover
Tab
