Model 8210/8250 Maintenance Manual Section 7. Component Procedures
Electrical Components Power Cables
Publication: 1146945/001, Revised: 25 Sep 2018 7-67

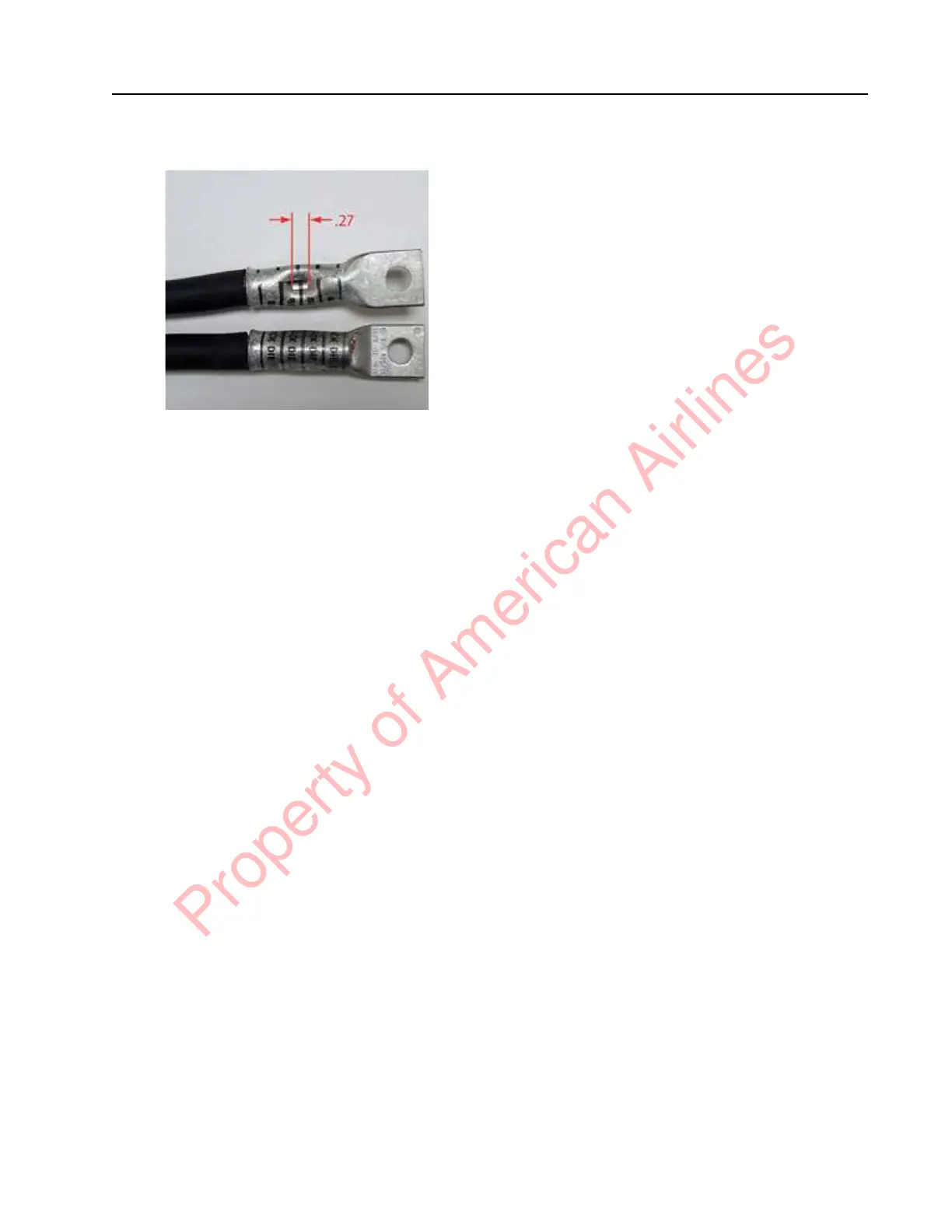

Figure 7-83. Long Barrel Terminals
7. Apply heat-shrink tubing (P/N 611-035) to
the terminal after crimping.
a. For short barrels, use 1.75 in. (45 mm)
of tubing. Apply 1 in. (25 mm) over the
jacket extending 0.75 in. (19 mm) over
the terminal barrel.
a. For long barrels, use 2.5 in. (64 mm) of
tubing. Apply 1 in. (25 mm) over the
jacket extending 1.5 in. (38 mm) over
the terminal barrel.
