8 multi-speeds are available with the combinations of the above 3
terminals.

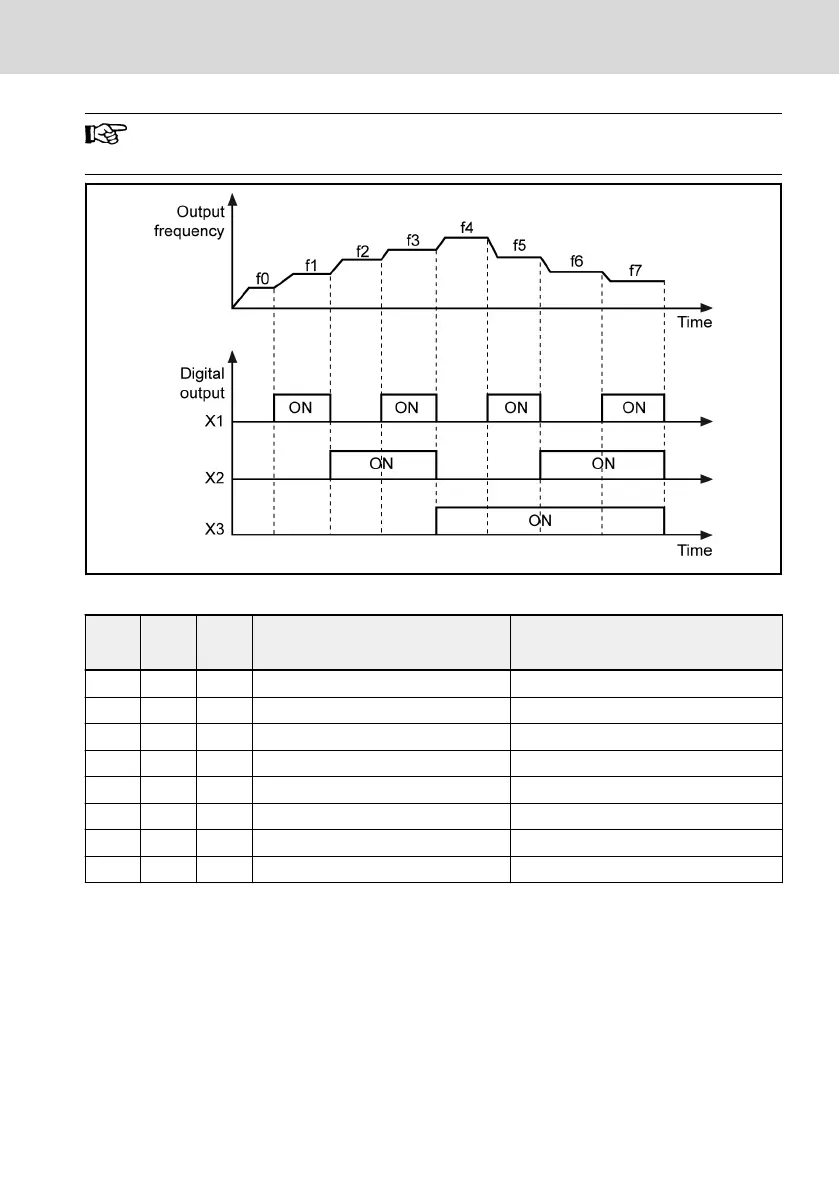

Fig. 8-33: Given by multi-speed
X3
X2 X1 Command frequency
Corresponding frequency
and Acc. / Dec. time parameter
OFF OFF OFF Multi-speed frequency 0 b1.04, E2.35
OFF OFF ON Multi-speed frequency 1 E2.10, E2.37
OFF ON OFF Multi-speed frequency 2 E2.11, E2.39
OFF ON ON Multi-speed frequency 3 E2.12, E2.41
ON OFF OFF Multi-speed frequency 4 E2.13, E2.43
ON OFF ON Multi-speed frequency 5 E2.14, E2.45
ON ON OFF Multi-speed frequency 6 E2.15, E2.47
ON ON ON Multi-speed frequency 7 E2.16, E2.49
Tab. 8-2: Multi-speed terminal settings
● 4: Reserved
● 5: Acceleration / deceleration time terminal 1
● 6: Acceleration / deceleration time terminal 2
4 options of acceleration / deceleration time are available with the combinations
of the 2 terminals, as shown in the table below.
EFC 3600
Bosch Rexroth AG
Parameter Settings
DOK-RCON03-EFC-3600***-IT03-EN-P
91/259
