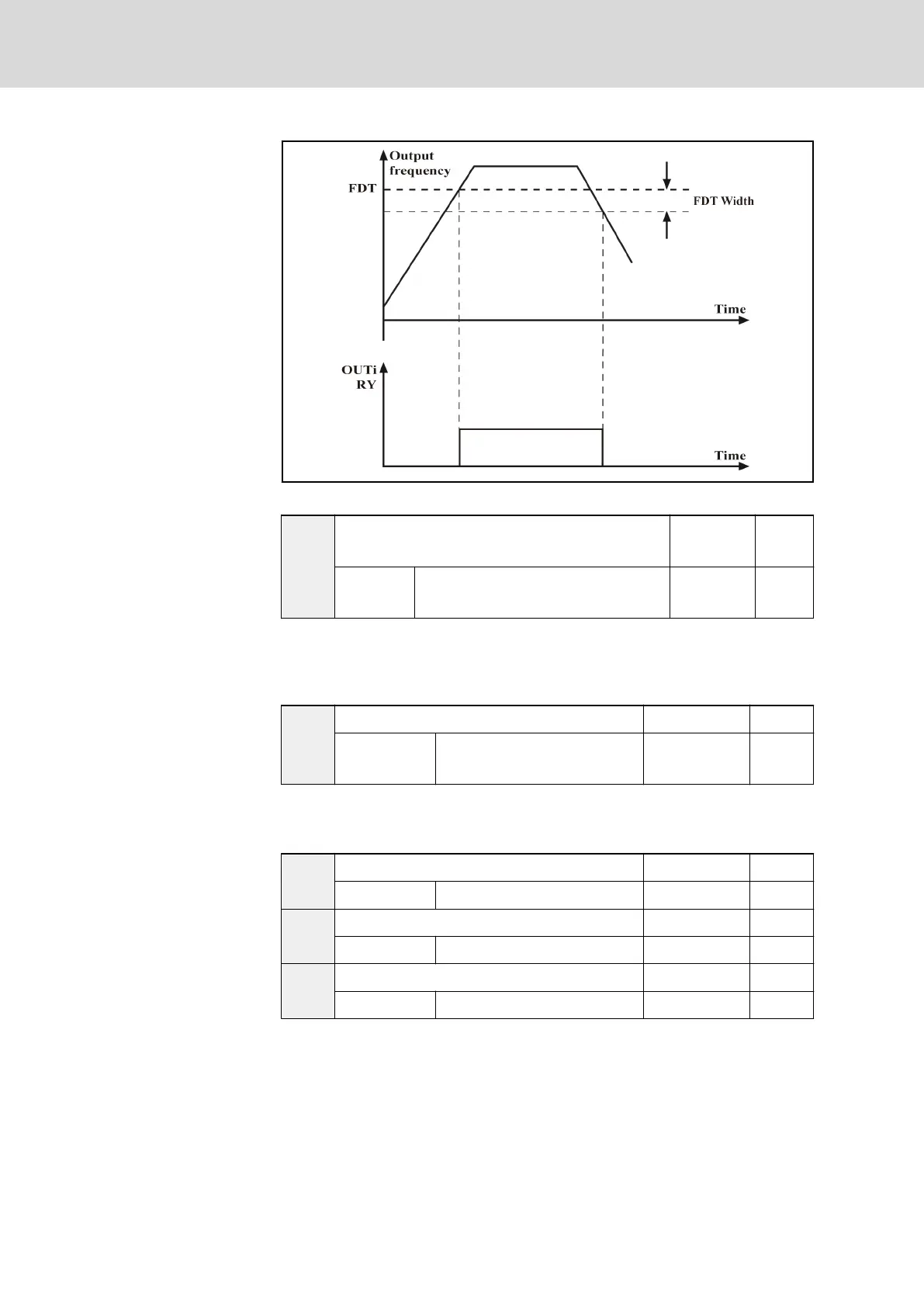

Fig. 7-40: Frequency level detection signal
E1.08
Frequency converter over load pre-warning 1 level
setting
Factory
default
100.0
Setting
range
20.0...100.0 %
(of rated frequency converter current)
Minimum
unit
0.1
Output indicating signal when parameters E1.00...E1.02 or E5.04 are set to
‘9: Frequency converter over load pre-warning 1’ and the frequency converter
output current exceeds the value ‘[E1.08] × frequency converter rated cur‐
rent’ over the time set by [E5.13].
E1.09
Motor over load pre-warning level setting Factory default 100.0
Setting range
100.0...250.0 %
(of rated motor current)
Minimum unit 0.1
Output indicating signal when parameters E1.00...E1.02 are set to ‘10: Motor
over load pre-warning’, and the frequency converter output current exceeds
the value ‘[E1.09] × motor rated current’.
E1.10
FM1 analog output Factory default 0
Setting range 0...7 Minimum unit 1
E1.11
FM1 negative gain setting Factory default 1.00
Setting range 0.00...10.00 Minimum unit 0.01
E1.12
FM1 positive gain setting Factory default 1.00
Setting range 0.00...10.00 Minimum unit 0.01
The output range of the analog output terminal FM1 can be set by parame‐
ters E5.05...E5.08.
Output voltage signal: -10...10 V
Output current signal: 0...20 mA
Either voltage or current signals are determined with JP3 and JP4 on the
control board:
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P142/259
Rexroth Frequency Converter Fv
Parameter Settings
