REXROTH Fv Series User Manual

E1.03
Frequency arrival detection width Factory default 5.0
Setting range
0.0...20.0 %
(of 'maximum frequency' [b1.05])
Minimum unit 0.1
Used to detect the difference between the output frequency and the set fre‐
quency.
If parameters E1.00...E1.02 are set to ‘4: Frequency / speed arrival signal’,
the difference between the output frequency and the set frequency is within
the setting range of this parameter, and the output indicating signals are
shown in figure below.

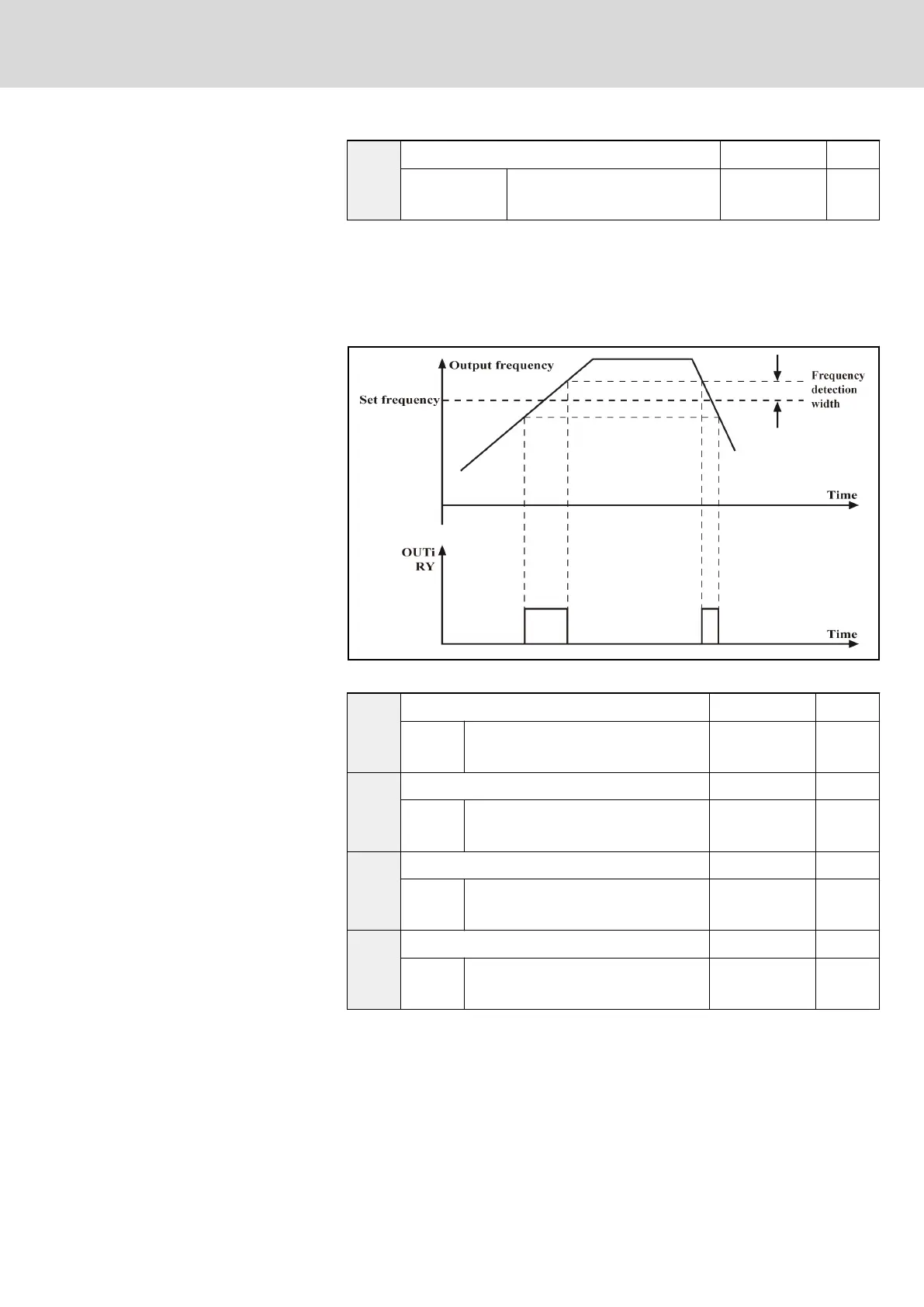

Fig. 7-39: Frequency arrival signal
E1.04
Frequency detection level FDT1 Factory default 90.0
Setting
range
0.0...100.0 %
(of 'maximum frequency' [b1.05])
Minimum unit 0.1
E1.05
Frequency detection level FDT1 width Factory default 5.0
Setting
range
0.0...100.0 %
(of 'maximum frequency' [b1.05])
Minimum unit 0.1
E1.06
Frequency detection level FDT2 Factory default 50.0
Setting
range
0.0...100.0 %
(of 'maximum frequency' [b1.05])
Minimum unit 0.1
E1.07
Frequency detection level FDT2 width Factory default 5.0
Setting
range
0.0...100.0 %
(of 'maximum frequency' [b1.05])
Minimum unit 0.1
Used to detect if the output frequency is within the setting range of FDT.
● Output indicating signal when parameters E1.00...E1.02 are set to ‘5:
Frequency level detection signal (FDT1)’ or ‘6: Frequency level detec‐
tion signal (FDT2)’, and the frequency converter output frequency is
within the corresponding FDT range.
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 141/259
Rexroth Frequency Converter Fv
Parameter Settings
