REXROTH Fv Series User Manual

With a normal asynchronous motor, heat dissipation is insufficient at
low-speed running, the electronic heat protection value will be compen‐
sated automatically.
● 2: Heat protection inactive at low-speed
With a special motor for frequency conversion, heat dissipation will not
be deteriorated at low-speed running, the electronic heat protection val‐
ue automatic compensation is unnecessary.
E4.05
Motor over load protection factor Factory default 100.0
Setting range 50.0...110.0 % Minimum unit 0.1
● If the rated frequency converter current is different from that of the mo‐
tor, motor over load protection factor needs to be set properly for effec‐
tive motor protection:
Motor over load protection factor (%) = (Rated motor current / Rated fre‐
quency converter current) × 100 %

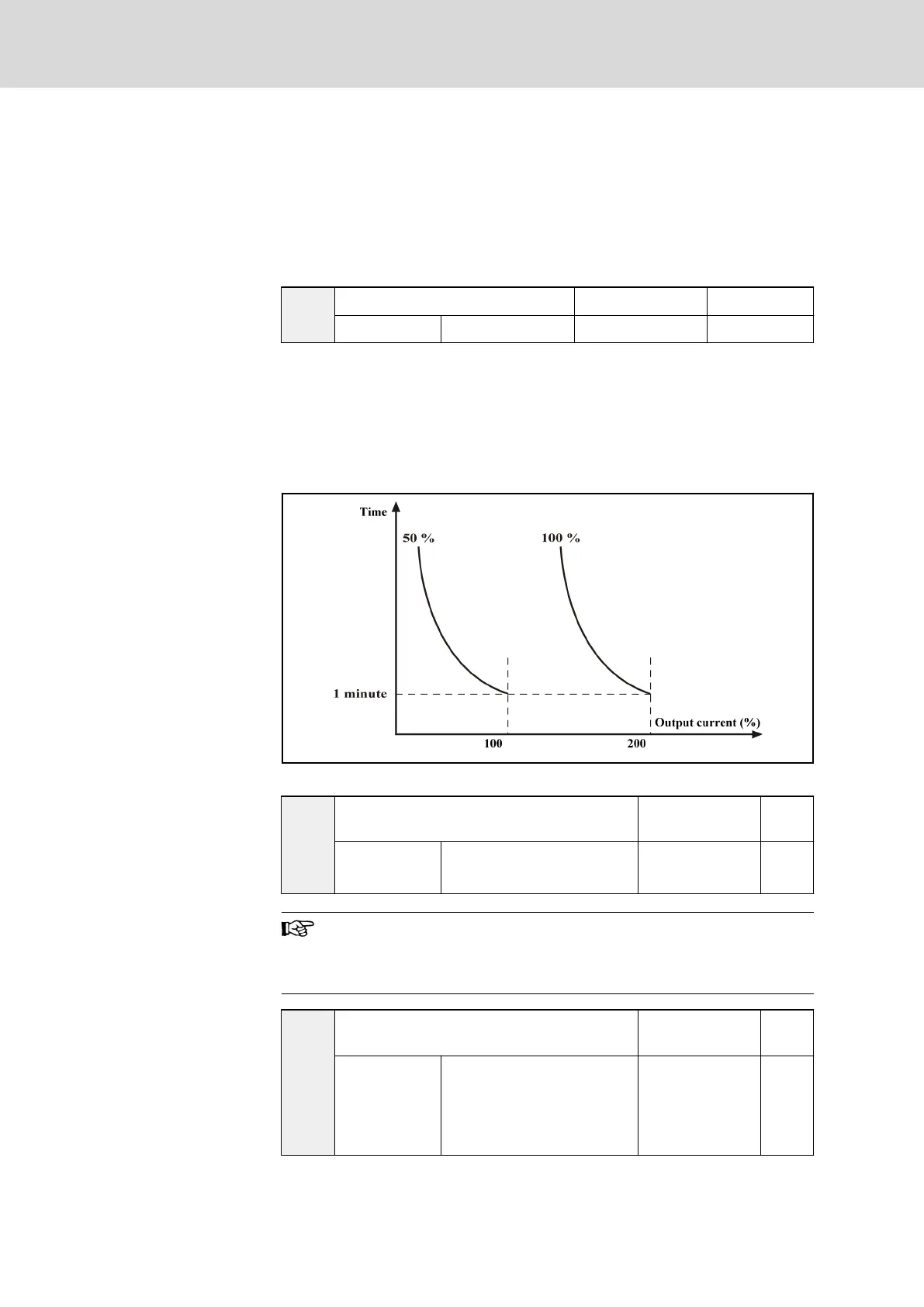

● The inverse time characteristic of over load protection is shown figure
below.
Fig. 7-49: Over load protection curve
E4.06
Type of temperature sensor for motor over heat
protection
Factory default 0
Setting range
0: PTC temperature sensor
1: NTC temperature sensor
Minimum unit 1
To activate this function, PTC / NTC temperature sensors need
be mounted in the motor with the outputs connected to the re‐
spective frequency converter analog input terminals VR1 or VR2,
see parameter E4.07.
E4.07
Input channel options of motor over heat pro‐
tection
Factory default 0
Setting range
0: Deactivated
1: VR1
2: VR2
3: VR3
Minimum unit 1
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P156/259
Rexroth Frequency Converter Fv
Parameter Settings
