1-25
Installation
04 October 2007

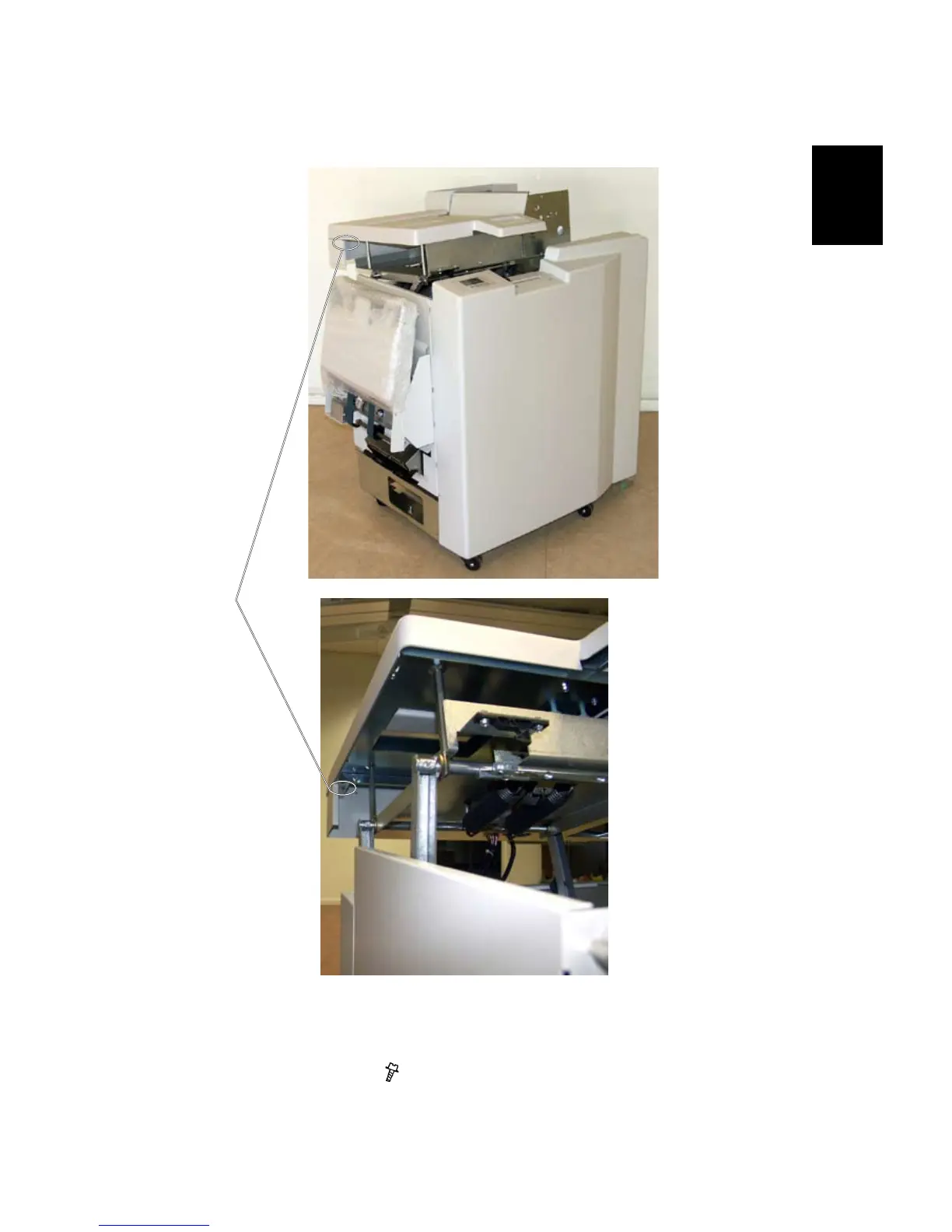

1. Open the Booklet Maker Top Cover.
2. Remove the screw [A] (
x 1).
[A]
Removal of the Rear Top Cover
COVER FEEDER INSTALLATION
