1-29
Installation
04 October 2007
Installing the Cover Feeder
1. Install the Cover Feeder in the exact same position as the Cover Feeder
dummy was installed.
NOTE: The shaft [A] must be positioned in the cut-out of the bracket [B] in the
Top Cover.
NOTE: The frame of the Cover Feeder [C] must be on the outside of the
bracket [B] in the Top Cover.

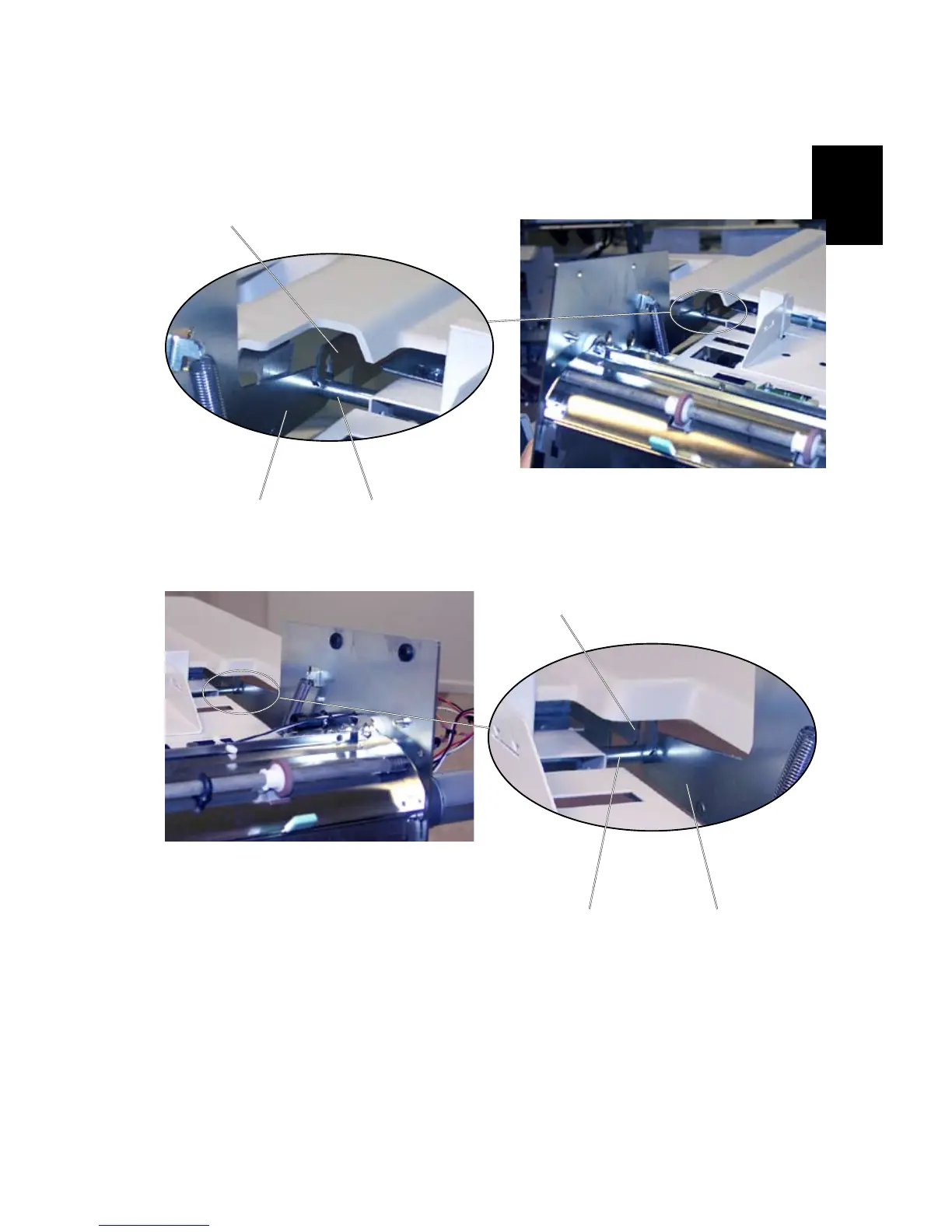

Cover Feeder, outer side view
Cover Feeder, inner side view
[A] [C]
[C] [A]
[B]
[B]
COVER FEEDER INSTALLATION
To Next Page
