1-61
Installation
04 October 2007
[D]

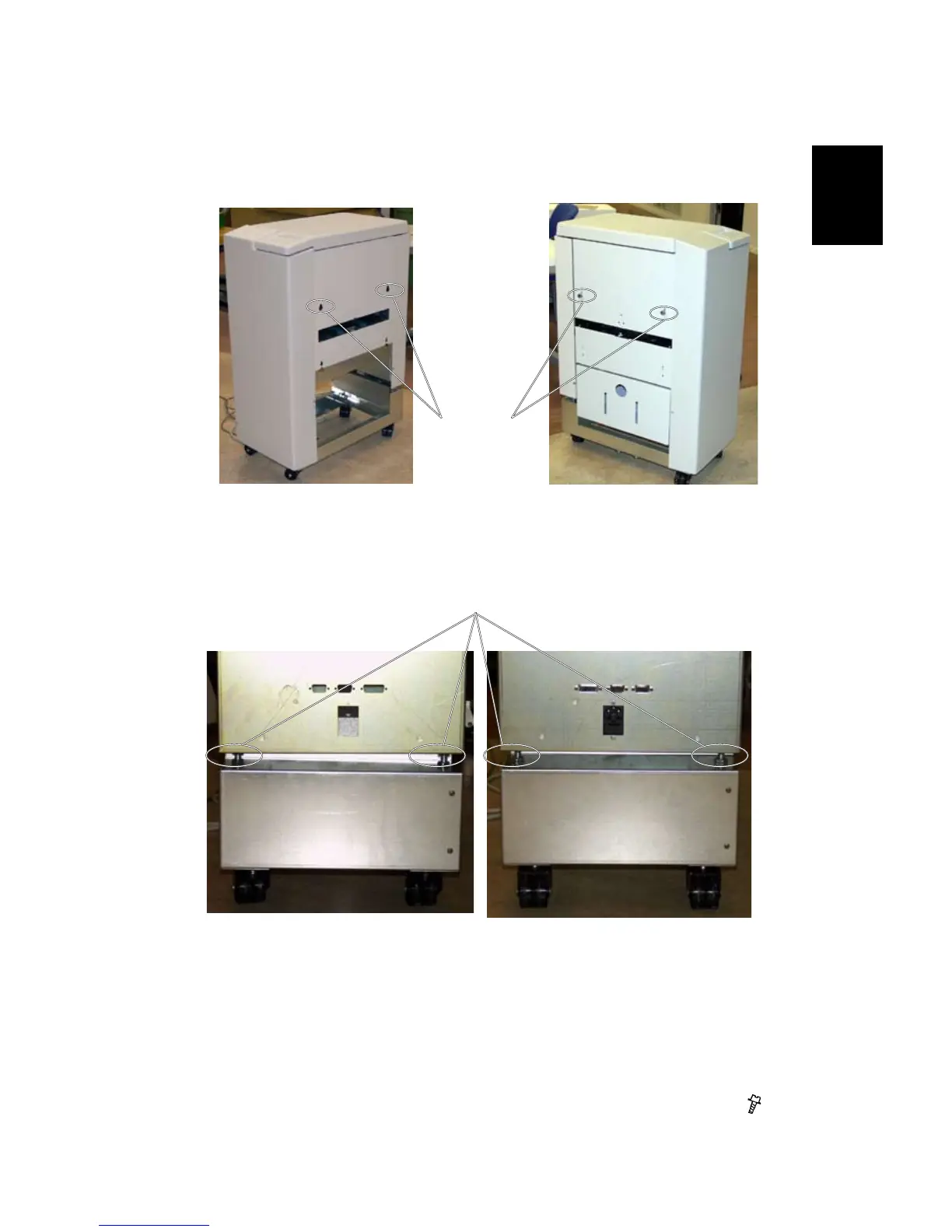

3. Adjust the height of the Book Folder, so that the positioning pins [B] on the
Trimmer ts in the docking holes [C] on the Book Folder. Adjust by turning the
four nuts [D] on the Book Folder with the Multi tool (one revolution on the nuts
is 1.5mm in height). Adjust on the front and rear side.
NOTE: The Multi Tool is located behind the rear cover of the BK5010 ( x 5).
[B]
[C]
Trimmer
Book Folder
Book Folder, rear view
Book Folder, front view
BOOK FOLDER INSTALLATION
