On the BK5010 and TR5010

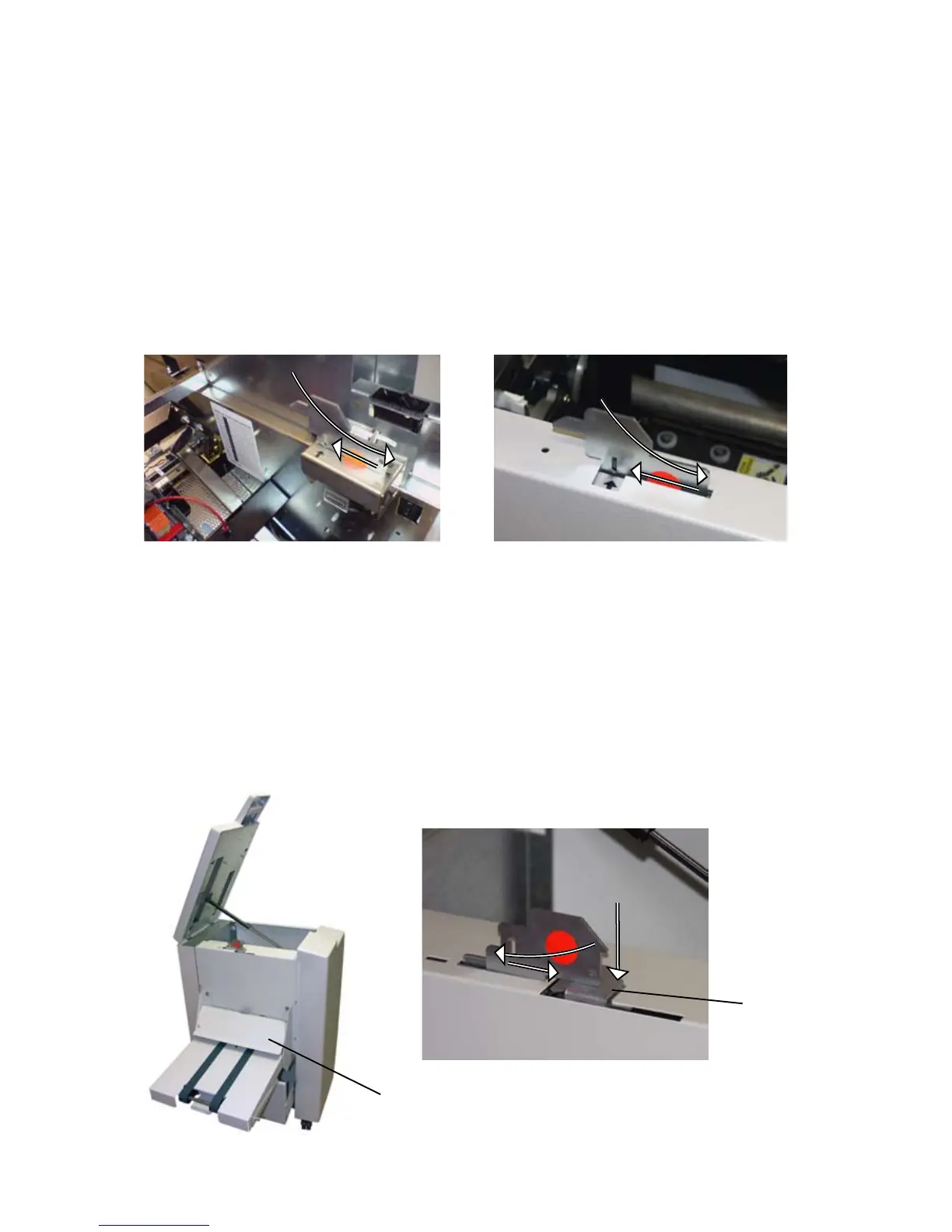

1. Hold the Cheater above the interlock so the arrows meet.
2. Put in the right end in the slot so it hooks under the bracket.
3. Push the Cheater down and to the left so it latches in place.
BK5010, view towards user interface TR5010, view from outfeed side
BF5010, view from outfeed side
On the BF5010
1. Make sure that the belt stacker is in its normal operating position.
2. Press down on the lever [A] that prevents opening the cover [B] of the belt stacker.
3. Hold the Cheater above the with the interlock with the arrow pointing upwards.
4. Put in the left end in the slot so it hooks under the bracket.
5. Push the Cheater down and to the right so it latches in place.
[A]
[B]
For the BK5010 Booklet Making system not to be interlocked (interlocked=36V
interrupted), the Interlock switch must be activated and the Interlock magnet must
be blocked with a metal. Use the Cheater to override the interlock for running the
system with open top covers.
