Ricoh TH-C1b - Charge Corona Unit, Grid, Wire, and Cleaner

10 February 2005 PHOTOCONDUCTOR UNIT (PCU)
3-25
Replacement
Adjustment

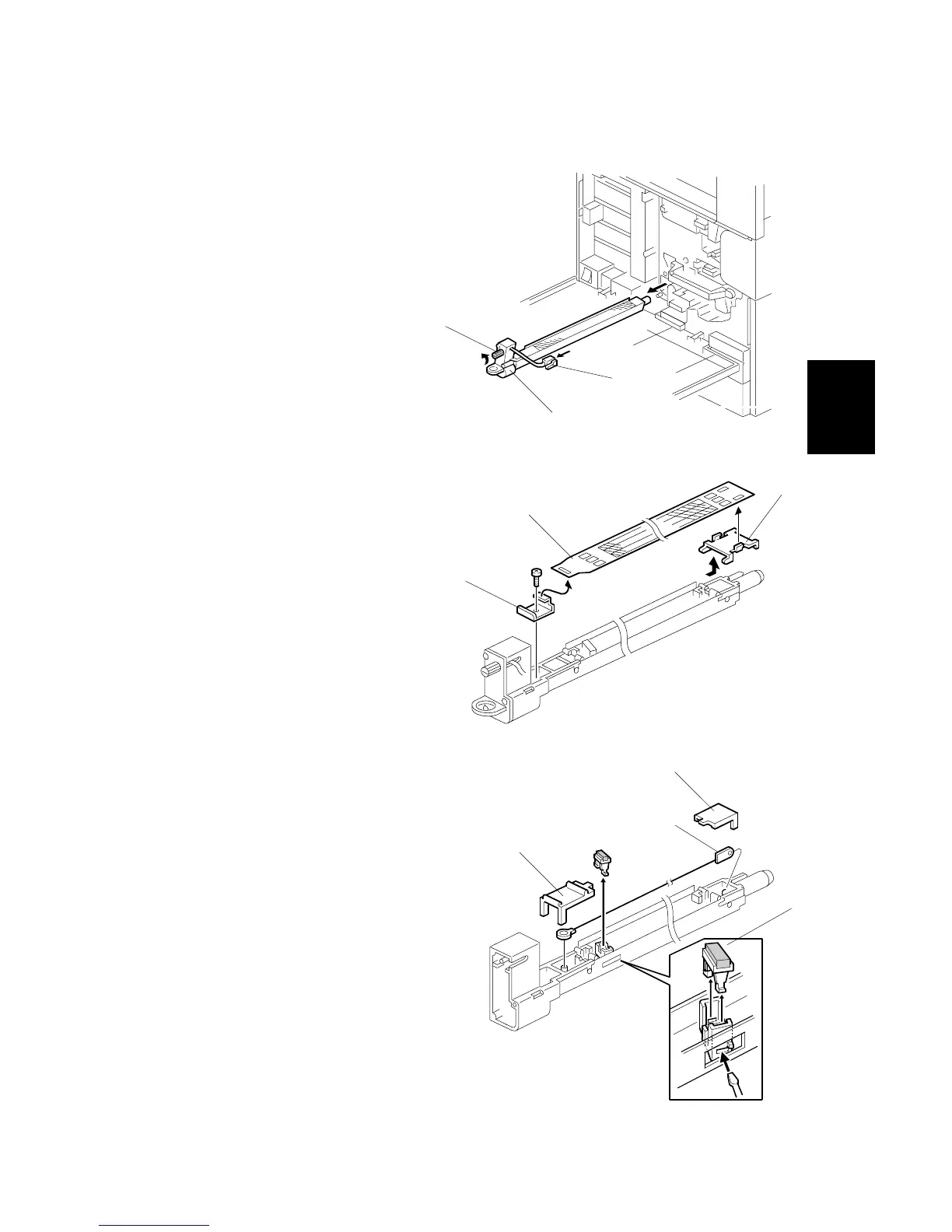

3.6.3 CHARGE CORONA UNIT, GRID, WIRE, AND CLEANER
1. Modular cable [A]
2. Charge corona unit [C] (Loosen 
[B])
3. Front bracket ( x 1) [D]
4. Grid [E]
5. Rear bracket [F]
6. Front wire cover [G]
7. Rear wire cover [H]
8. Wire cleaner [I]
9. Unhook the corona wire [J].
B156R251.WMF
B156R252.WMF
B156R253.WMF
[E]
[D]
[F]
[G]
[J]
[H]
[I]
[A]
[C]
[B]
