Ricoh TH-C1b - Installation Procedure

DUPLEX UNIT (B509) 10 February 2005
1-36
1.10.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the copier power cord before starting the following procedure.
NOTE: Before installing the duplex unit, the optional interchange unit (B481)
must be installed.
1. Remove all tapes (see the previous page).

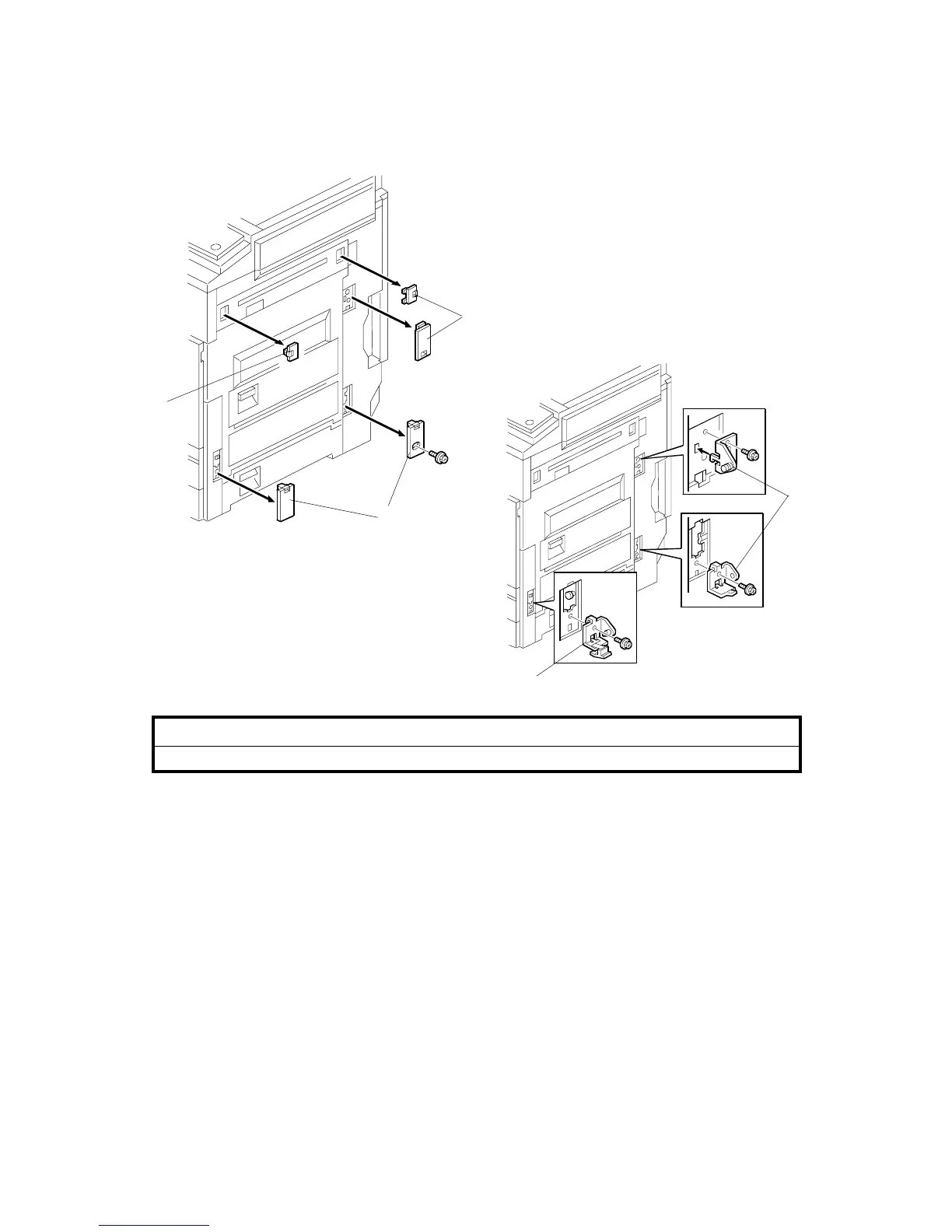

2. Remove five covers [A] (! x1).
3. Install three brackets [B] (! x1 each – M4x6).
B509I102.WMF
B509I103.WMF
[A]
[A]
[A]
[B]
[B]
