Ricoh TH-C1b - Auto Reverse Document Feeder (B810); Accessory Check; Installation Procedure

10 February 2005 AUTO REVERSE DOCUMENT FEEDER (B810)
1-21
Installation

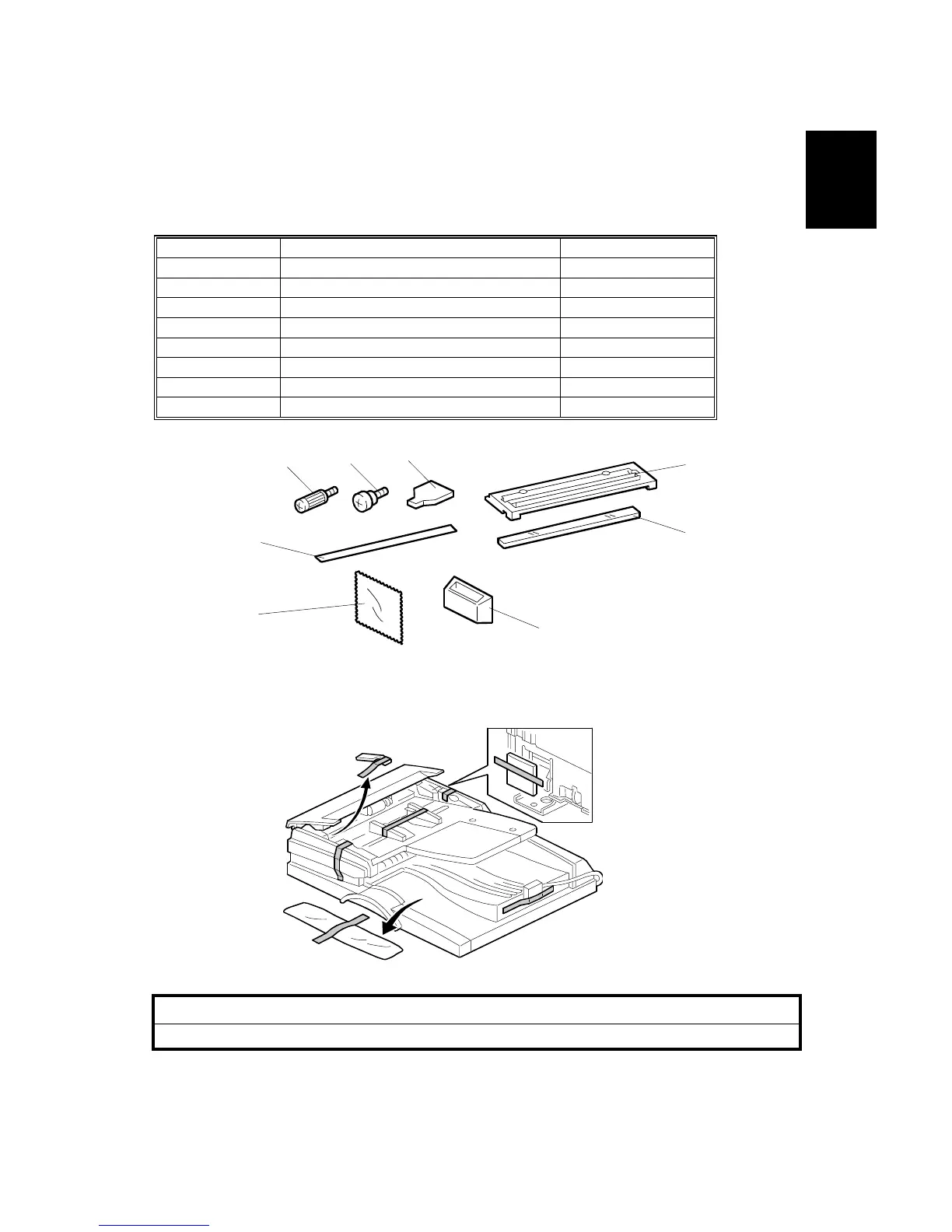

1.5 AUTO REVERSE DOCUMENT FEEDER (B810)
1.5.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Scale Guide 1
2 DF Exposure Glass 1
3 Stud Screw 2
4 Knob Screw 2
5 Original Size Decal 2
6 Screwdriver Tool 1
7 Cloth 1
8 Holder 1
1.5.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove the strips of tape.
B386I500.WMF
B386I101.WMF
1
2
4
5
3
6
7
8
