Ricoh TH-C1b - Tray Heater (Optional Lct)

TRAY HEATER (OPTIONAL LCT) 10 February 2005
1-72
1.21 TRAY HEATER (OPTIONAL LCT)
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

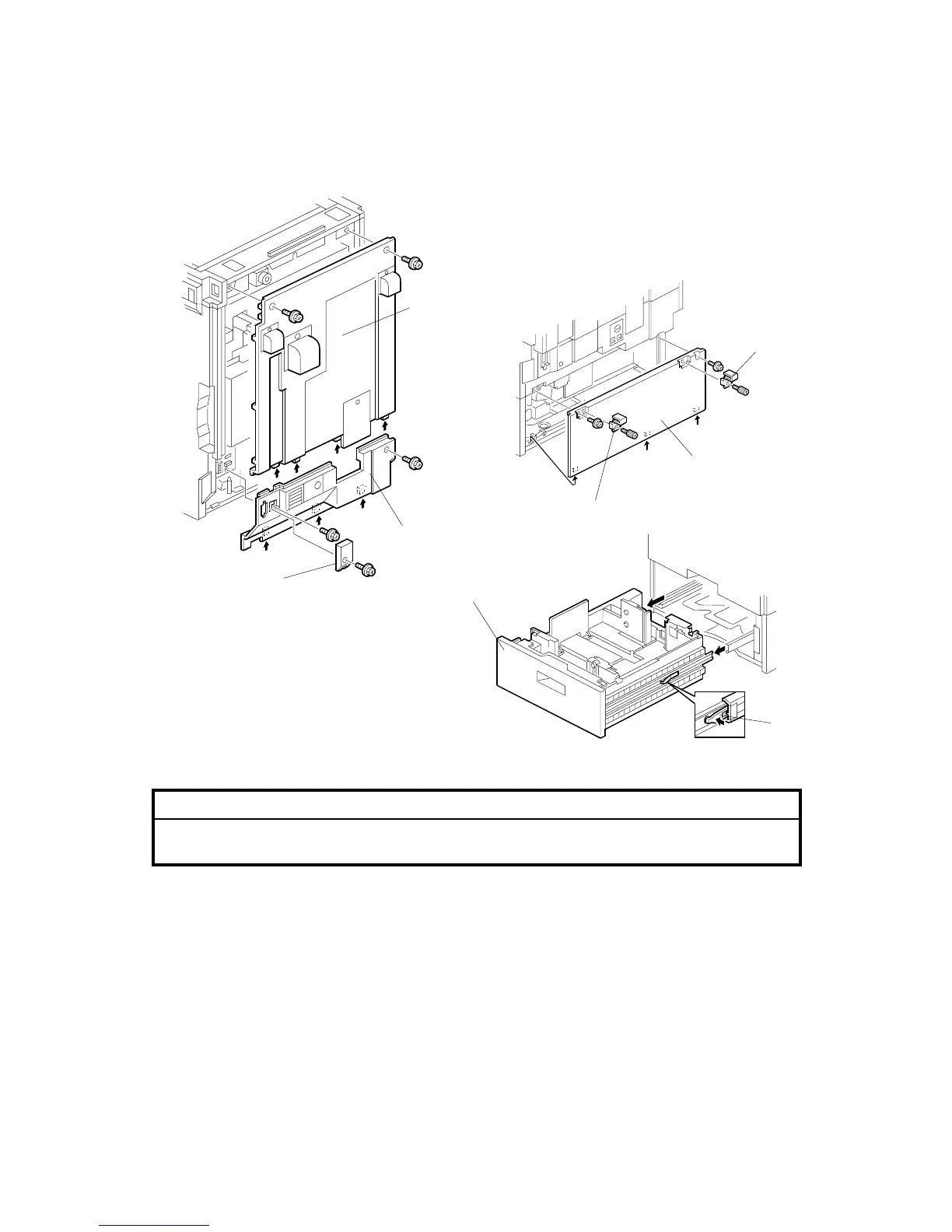

1. Remove the connector cover [A] (! x 1).
2. Remove the rear cover for the main machine [B] (! x 2).
3. Remove the lower rear cover [C] (! x 2).
4. Remove the joint brackets [D] (! x 1 each).
5. Remove the rear cover for the optional LCT [E] (! x 2).
6. Slide out the paper tray [F] from the optional LCT.
7. Push stopper [G] on the right slide rail and remove the paper tray.
B457I620.WMF
B457I502.WMF
B457I501.WMF
[E]
[D]
[D]
[B]
[F]
[G]
[A]
[C]
