Ricoh TH-C1b - Paper Tray Unit (B456); Accessory Check; Installation Procedure

10 February 2005 PAPER TRAY UNIT (B456)
1-13
Installation
1.3 PAPER TRAY UNIT (B456)

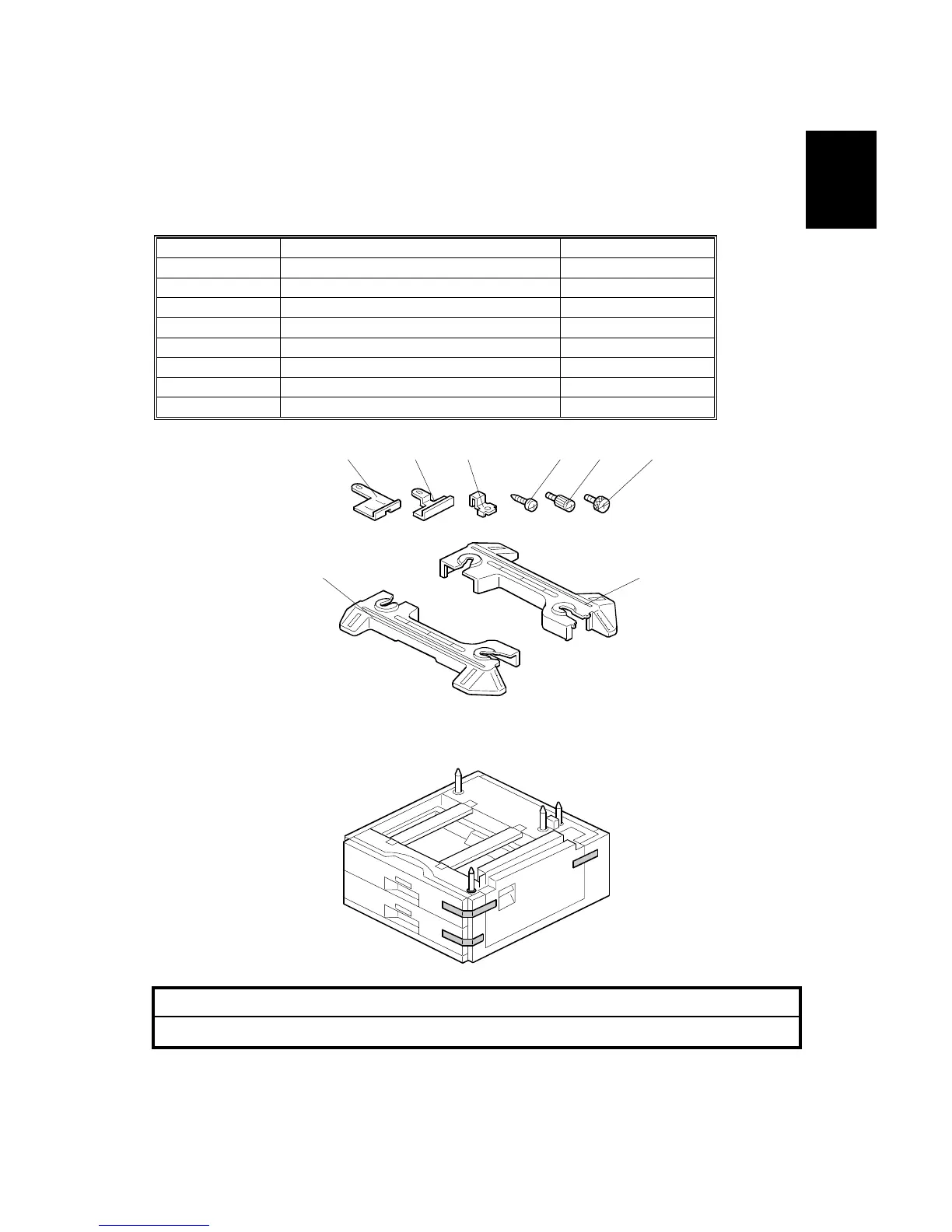

1.3.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Right Stand Bracket 1
2 Left Stand Bracket 1
3 Securing Bracket 2
4 Front Stand 1
5 Rear Stand 1
6 Screw – M4x10 4
7 Knob Screw 2
8 Stepped Screw 2
1.3.2 INSTALLATION PROCEDURE
!CAUTION
Unplug the machine power cord before starting the following procedure.
1. Remove the strips of tape.
B456I001.WMF
B456I002.WMF
1 2 3
4 5
6 7 8
