3.10.5 POWER SUPPLY UNIT
NOTE: When you remove the oil pipe from the oil tank, hang the left oil pipe in the
notch in the controller box. Then, oil does not fall from the pipe to the floor
(see section 1.18: Installation – Anti-Condensation Heater).

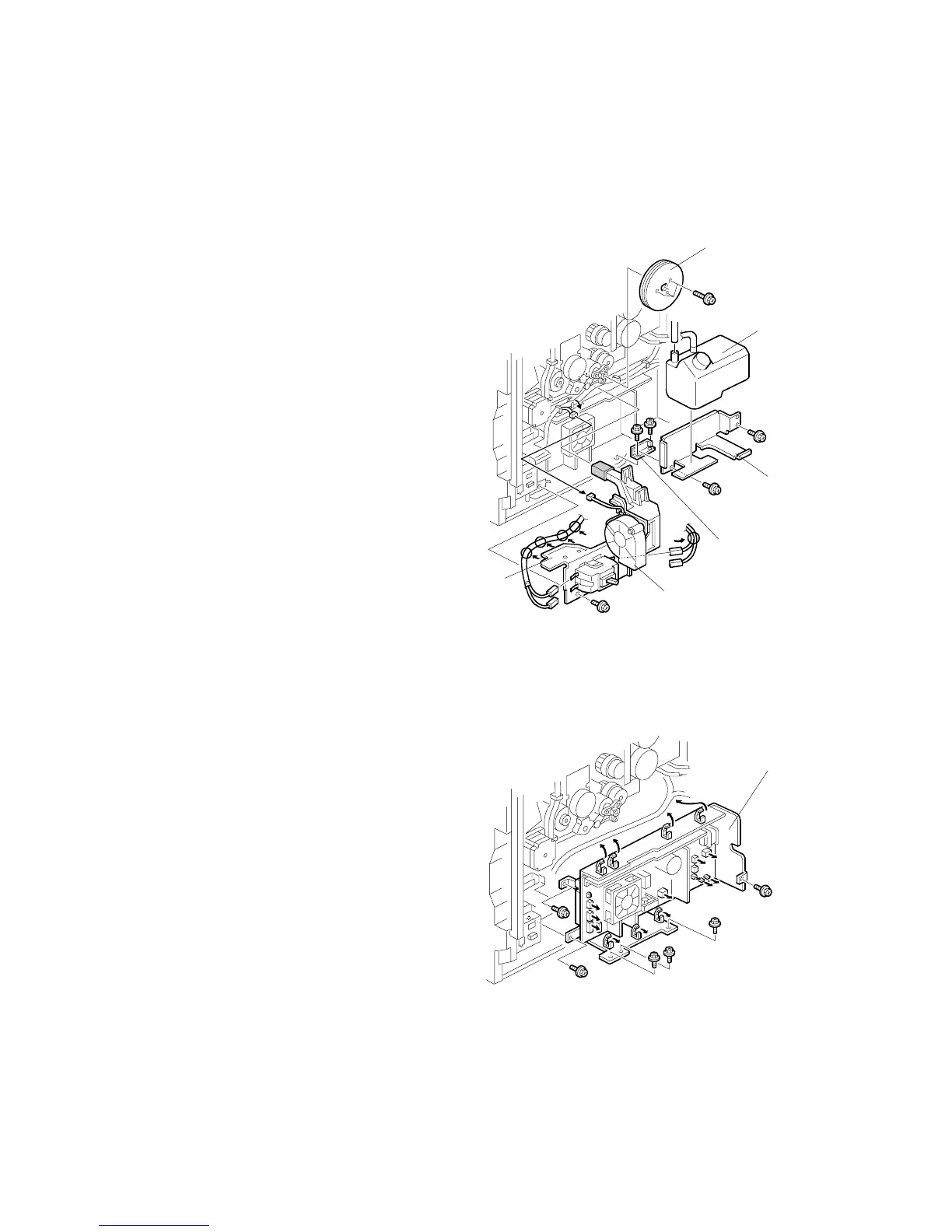

1. Move the controller box, on its
hinge, away from the machine.
(3.10.1).
2. Lower rear cover ( 3.4.2)
3. Oil tank [A]
4. Flywheel [B] ( x 3)
5. Duct [C] with bracket [D]
( x 5,  x 1)
6. Oil tank holder [E] ( x 2)
7. Bracket [F] ( x 2)
8. Power supply unit [G]
( x 9,  x 6)
